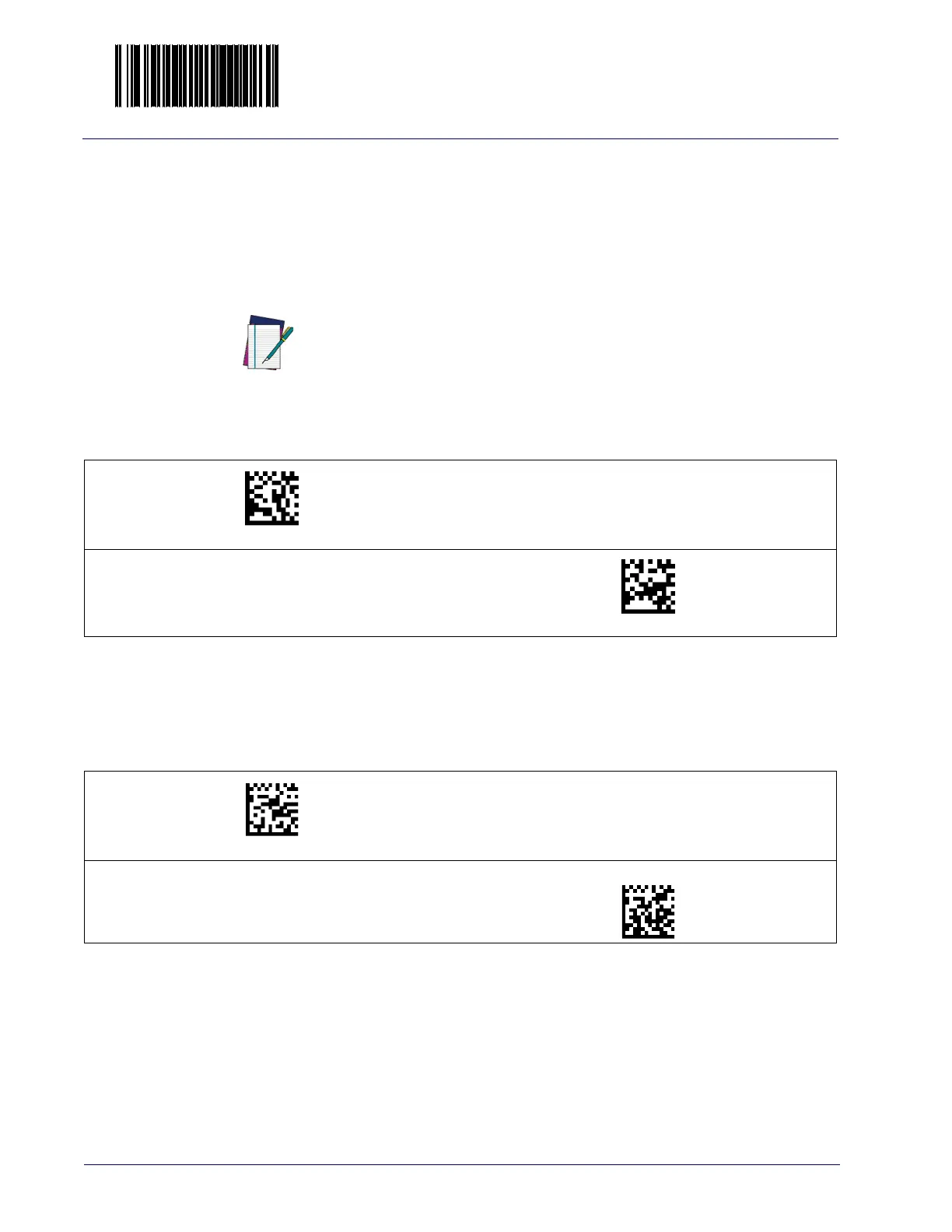

Enter/Exit Programming Mode 2D Symbologies
122 Magellan™ 800i Scanner
Datamatrix Length 1, Length 2 Programming Instructions
1. Scan the START bar code.
2. Scan either the Set Length 1 or Set Length 2 bar code.
3. Turn to Alphanumeric Pad and scan the three digits (zero-padded) repre-
senting the length.
Scan the END bar code.
QR Code
Disable/Enable QR Code
When disabled, the scanner will not read QR Code labels.
NOTE
For Datamatrix bar codes, only the data characters are
included in the length calculations.
Any value set higher than 800 will be considered to be 800.
DEFAULT SETTING FOR THIS FEATURE: 001
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 800
0103(CR)
0104(CR)
Disable QR Code
DEFAULT
Enable QR Code
03D700(CR)
03D701(CR)
