Datalogic Magellan 800i Product Reference Guide

Enter/Exit Programming Mode GS1 DataBar Expanded / Expanded Stacked
78 Magellan™ 800i Scanner

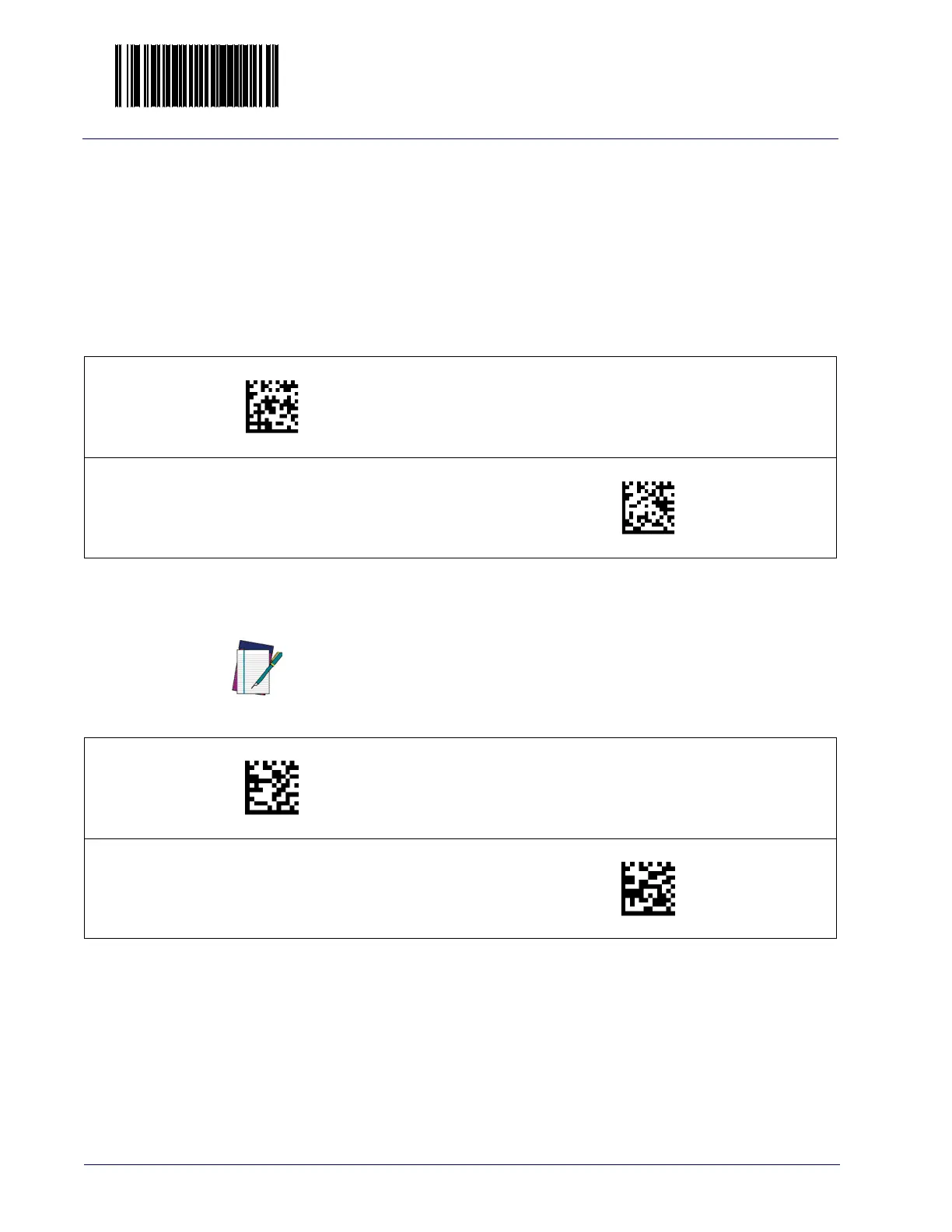

Length Control
Fixed Length Decoding — When fixed length decoding is enabled, the scanner
will decode a bar code if the label length matches one of the configurable fixed
lengths.
Variable Length Decoding — When variable length decoding is enabled, the scan-
ner will decode a bar code if the label length falls in the range of the configu-
rable lengths 1 and 2.
04BD00(CR)
Variable Length Decoding
DEFAULT
Fixed Length Decoding
04BD01(CR)
GS1 DataBar Expanded Length 1, Length 2 Programming Instructions
See page 136for detailed instructions on setting this feature.
NOTE
04BE(CR)
DEFAULT SETTING FOR THIS FEATURE: 01
Set Length 1
Set Length 2
04BF(CR)
DEFAULT SETTING FOR THIS FEATURE: 74
For GS1 DataBar Expanded bar codes, only the data char-
acters are included in the length calculations.

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
