Datalogic Magellan 800i Product Reference Guide

Enter/Exit Programming Mode
Product Reference Guide 119

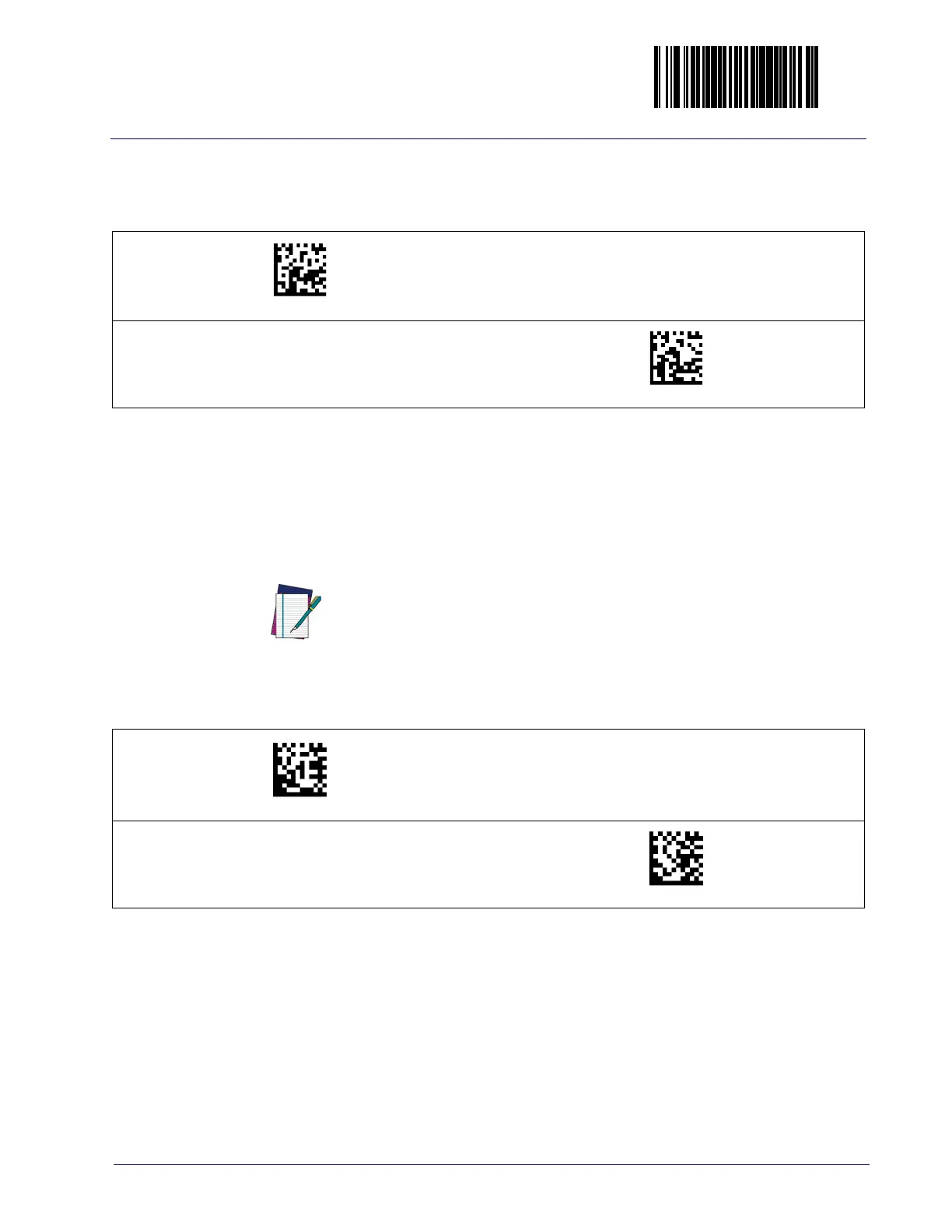

5. Set Length 2 to the maximum length by following the Micro PDF 417
Length 1, Length 2 Programming Instructions below.
Micro PDF 417 Length 1, Length 2 Programming Instructions
1. Scan the START bar code.
2. Scan either the Set Length 1 or Set Length 2 bar code.
3. Turn to Alphanumeric Pad and scan the three digits (zero-padded) repre-
senting the length.
Scan the END bar code.
Variable Length Decoding
DEFAULT
Fixed Length Decoding
035B00(CR)
035B01(CR)
NOTE
For Micro PDF 417 bar codes, only the data characters are
included in the length calculations.
Any value set higher than 366 will be considered to be 366.
DEFAULT SETTING FOR THIS FEATURE: 001
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 366
035B00(CR)
035B01(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
