Datalogic Magellan 800i Product Reference Guide

Label ID
Product Reference Guide 135
Label ID
A Label ID is used to identify a bar code (symbology) type. See Appendix D,
Default Settings, for a listing for common symbologies. It can be appended
previous to or following the transmitted
bar code data depending upon how
this option is enabled. This feature provides options for configuring custom
Label IDs individually per symbology. If you wish to program the scanner to
always include an industry standard label identifier for ALL symbology types,
see the feature, AIM ID.
The Label ID is a customizable code of up to
four ASCII characters (each of
which are 00-7F) followed by a control character (00-01), This control charac-
ter, when set to zero, does nothing. Wh
en set to one, it appends the symbol-
ogy’s AIM ID to the Label ID.
NOTE
When the control character is set to 01 for
UPC-A
and UPC-E, it expands the label to
EAN-13 and thus follows the EAN-13 Label ID
settings.
To configure a Label ID:
1. Scan the START bar code.
2. Select Label ID position
as either BEFORE or AFTER by scanning the appro-
priate bar code.
3. Scan a bar code to select the symbology for which you wish to configure a
cu
stom Label ID.
4. Determine the desired character(s) (you may choose up to three) which will
re
present the Label ID for the selected symbology. Next, turn to the ASCII
Character Set on page 159 on the inside back cover of this manual and
find the equivalent hex digits associated with your choice of Label ID. For
ex
ample, if you wish to select an equal sign (=) as a Label ID, the chart
indicates its associated hex characters as 3D.
5. Turn to Appendix C, Alphanumeric Pad and scan the bar codes represent-
ing the hex characters determined in the previous step. For example, to
make an equal sign (=), s
can ‘3’ and ‘D’ followed by ‘0’ six times. Since
this is a three-character buffer, ‘00’ is scanned for character two, ‘00’ for
character three and ‘00’ for the control character. (‘00’ indicates no char-
acter.)
6. Scan the END bar code to exi
t programming mode.

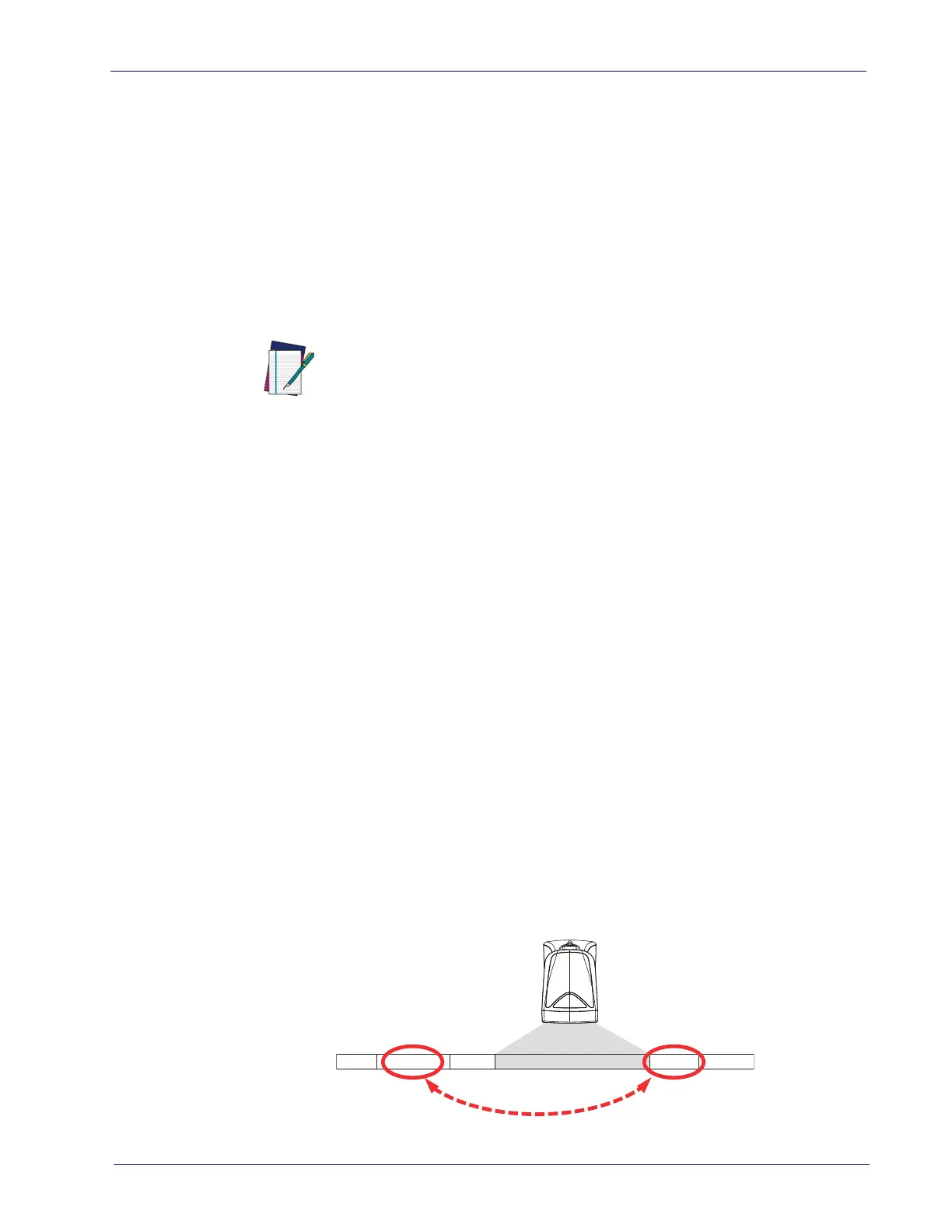

Figure 4. Label ID Position
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID
Options

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
