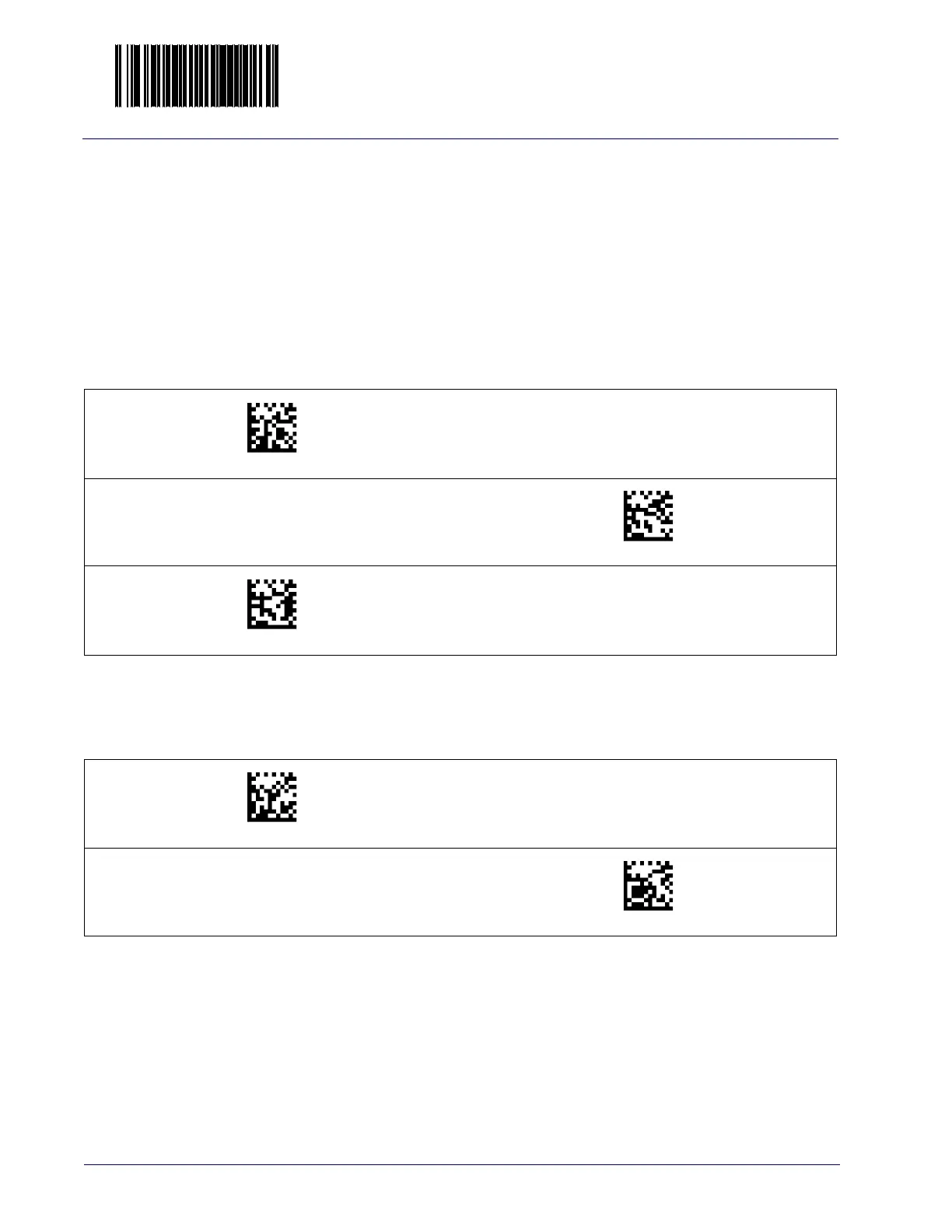

ACK NAK Error Handling
This item specifies the method the scanner will use to handle errors detected
while waiting to receive the ACK character from the host. Errors include unrec-
ognized host commands and
communication errors such as parity or framing
errors. Choices are:
00 = Ignore errors detected (recommended setting)
01 = Process error as valid ACK character (risk of lost label data)
02 = Process error as valid NAK character (risk of duplicate label data)
032300(CR)
Ignore Errors Detected
DEFAULT
Process error as valid ACK character
032301(CR)
032302(CR)
Process error as valid NAK character
Transmission Failure Indication
Enables/disables bad-label indication upon transmission failure.
032200(CR)
Disable Transmission Error Indication
Enable Transmission Error Indication
DEFAULT
032201(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
