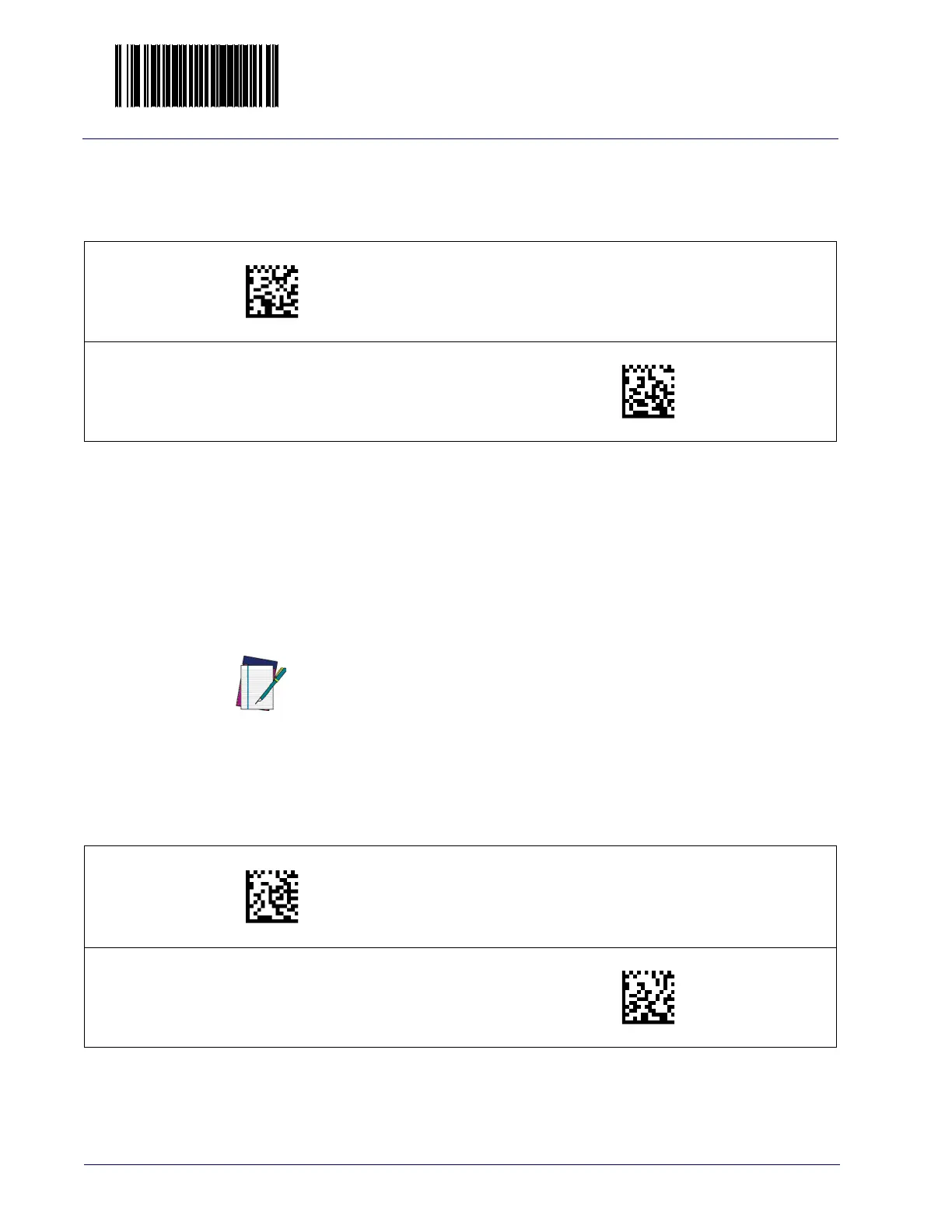

Datalogic Magellan 800i Product Reference Guide

Enter/Exit Programming Mode Code 128
90 Magellan™ 800i Scanner
Disable/Enable EAN 128
Enables/disables ability of scanner to translate EAN128 labels to the EAN128
data format.
02D800(CR)
Transmit EAN128 labels in Code128 data format
Transmit EAN128 labels in EAN128 data format
DEFAULT
02D801(CR)
Transmit Function Characters
Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Function codes are transmitted as follows:
• FNC1 = 80 hex
• FNC2 = 81 hex
• FNC3 = 82 hex
• FNC4 = 83 hex
NOTE
02C700(CR)
Don’t Transmit Function Characters
DEFAULT
Transmit Function Characters
02C701(CR)
If the label starts with a function 3 character,
it is considered a programming label and no
modificatoins are made to the label data.
Other than that, if this configuration item is
set to disable, then all function characters are
stripped from the label data.
Disabled is the recommended setting for all
interfaces.

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
