Datalogic Magellan 800i Product Reference Guide

Enter/Exit Programming Mode Interface Features
36 Magellan™ 800i Scanner

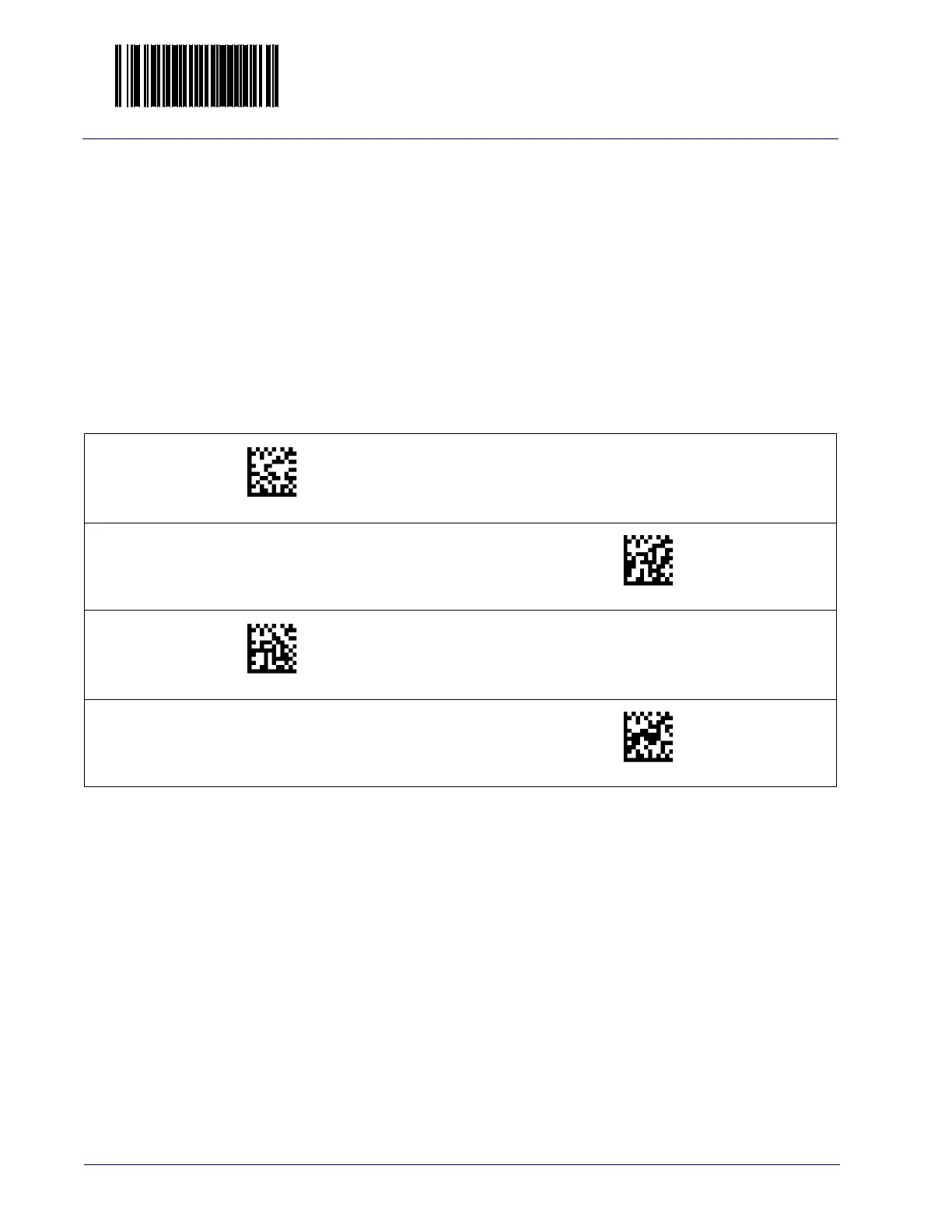

ACK NAK Options
This enables/disables the ability of the scanner to support the RS-232 ACK NAK
protocol. When configured, the scanner and/or host sends an “ACK” when it
receives data properly, and sends “NAK” when the data is in error. Selections for
this option are:
•Disable
• Enable for label transmission
— the scanner expects an ACK/NAK
response from the host when a label is sent
• Enable for host-command acknowledge — the scanner will respond with
ACK
NAK when the host sends a command
• Enable for label transmission and host-com
mand acknowledge
061100(CR)
Disable ACK NAK
DEFAULT
Enable ACK NAK for Transmission
061101(CR)
061102(CR)
Enable ACK NAK for host command acknowledge
Enable ACK NAK for transmission
and host
command acknowledge
061103(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
