Datalogic Magellan 800i Product Reference Guide

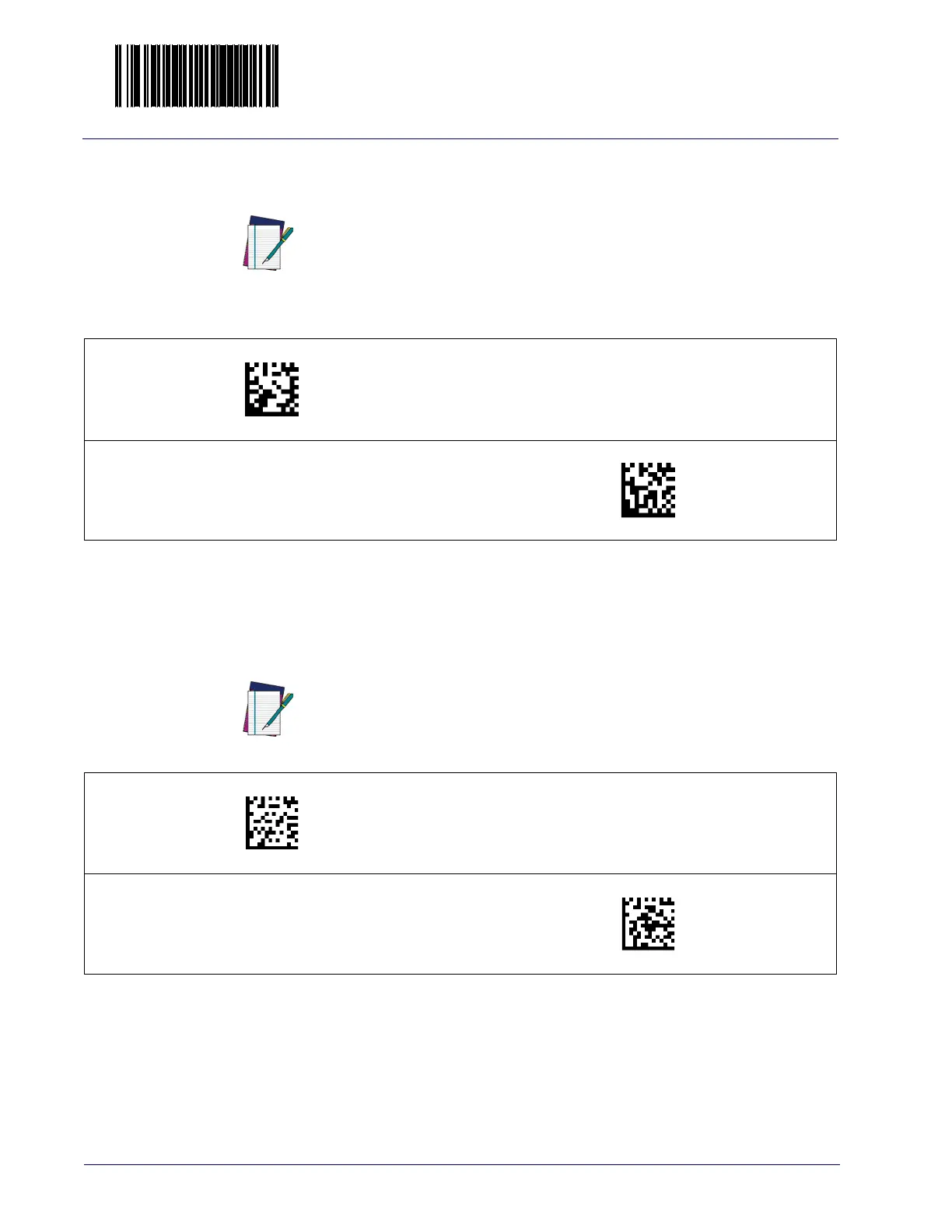

Enter/Exit Programming Mode Interleaved 2 of 5
96 Magellan™ 800i Scanner
Interleaved 2 of 5 Length 1, Length 2 Programming Instructions
See page 136for detailed instructions on setting this feature
NOTE
For Interleaved 2 of 5 bar codes,
lengths
must be an even number.
Additionally, all check and data charac-
ters are included in the length calcula-
tions.
.
0056(CR)
DEFAULT SETTING FOR THIS FEATURE: 06
Set Length 1
Set Length 2
0057(CR)
DEFAULT SETTING FOR THIS FEATURE: 50
Interleaved 2 of 5 Stitching
Enables/disables stitching for Interleaved 2 of 5 labels. When parts of an Inter-
leaved 2 of 5 bar code are presented to the scanner with this feature enabled,
the
bar code parts will be assembled by the scanner’s software, and the data
will be decoded if all bar code proofing requirements are met.
NOTE
06AF00(CR)
Disable Interleaved 2 of 5 Stitching
DEFAULT
Enable Interleaved 2 of 5 Stitching
06AF01(CR)
Only functions when Fixed Length Decoding is
enabled.

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
