Datalogic Magellan 800i

Enter/Exit Programming Mode
Product Reference Guide 123
Length Control
Fixed Length Decoding — When fixed length decoding is enabled, the scanner
will decode a bar code if the label length matches one of the configurable fixed
lengths.
Variable Length Decoding — When variable length decoding is enabled, the scan-
ner will decode a bar code if the label length falls in the range of the configu-
rable minimum and maximum length.
Configuring Fixed Length Decoding:
1. Scan the START bar code.
2. Scan the Fixed Length Decoding bar code.
3. Scan the END bar code.
4. Set Length 1 to the first fixed length by following the Length 1, Length 2
Programming Instructions below.
5. Set Length 2 to the second fixed length (or to ‘0000’ if there is only one
fixed length) by following the QR Code Length 1, Length 2 Programming
Instructions below.
Configuring Variable Length Decoding:
1. Scan the START bar code.
2. Scan the Variable Length Decoding bar code.
3. Scan the END bar code.
4. Set Length 1 to the minimum length by following the QR Code Length 1,
Length 2 Programming Instructions below.
5. Set Length 2 to the maximum length by following the QR Code Length 1,
Length 2 Programming Instructions below.

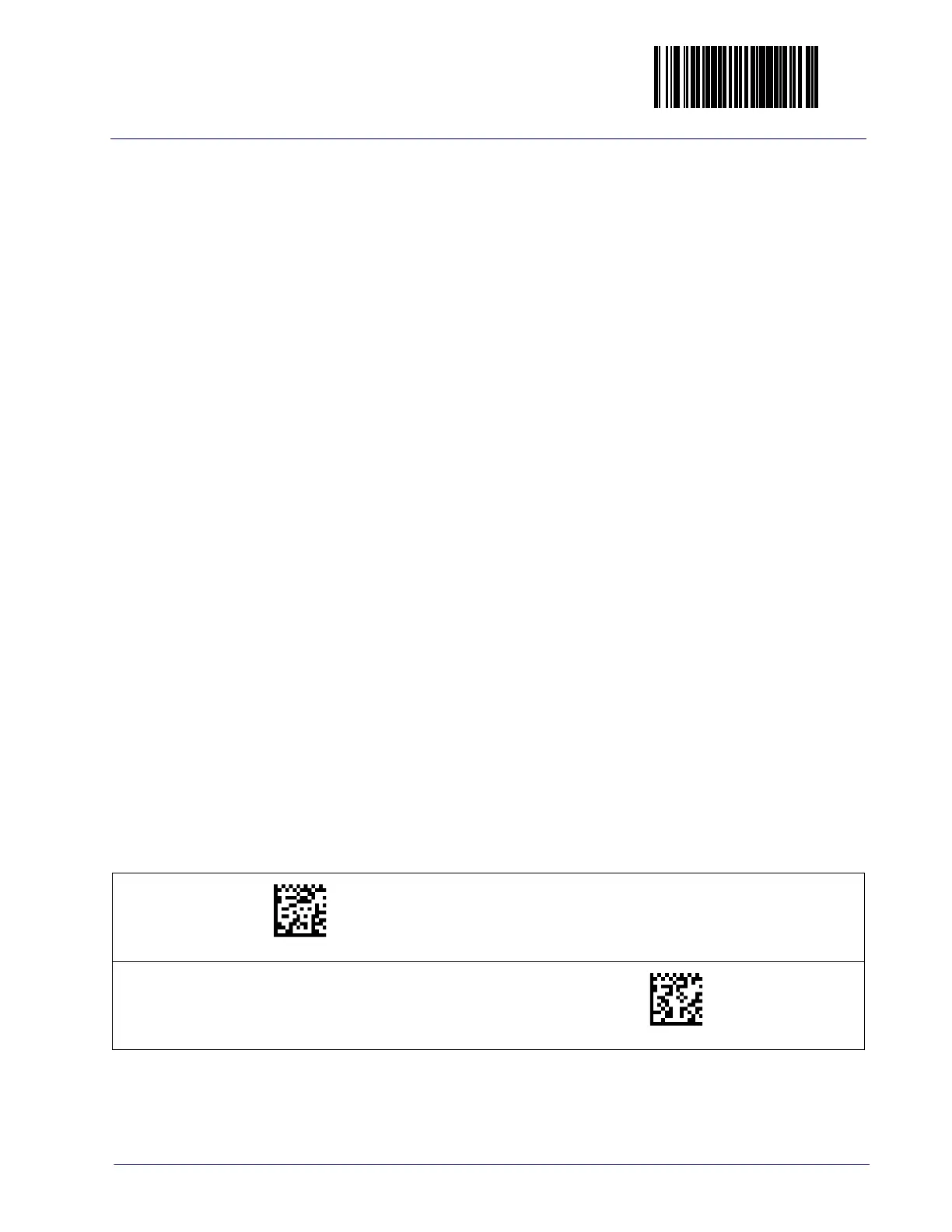

Variable Length Decoding
DEFAULT
Fixed Length Decoding
03D900(CR)
03D901(CR)
