Enter/Exit Programming Mode
Product Reference Guide 49

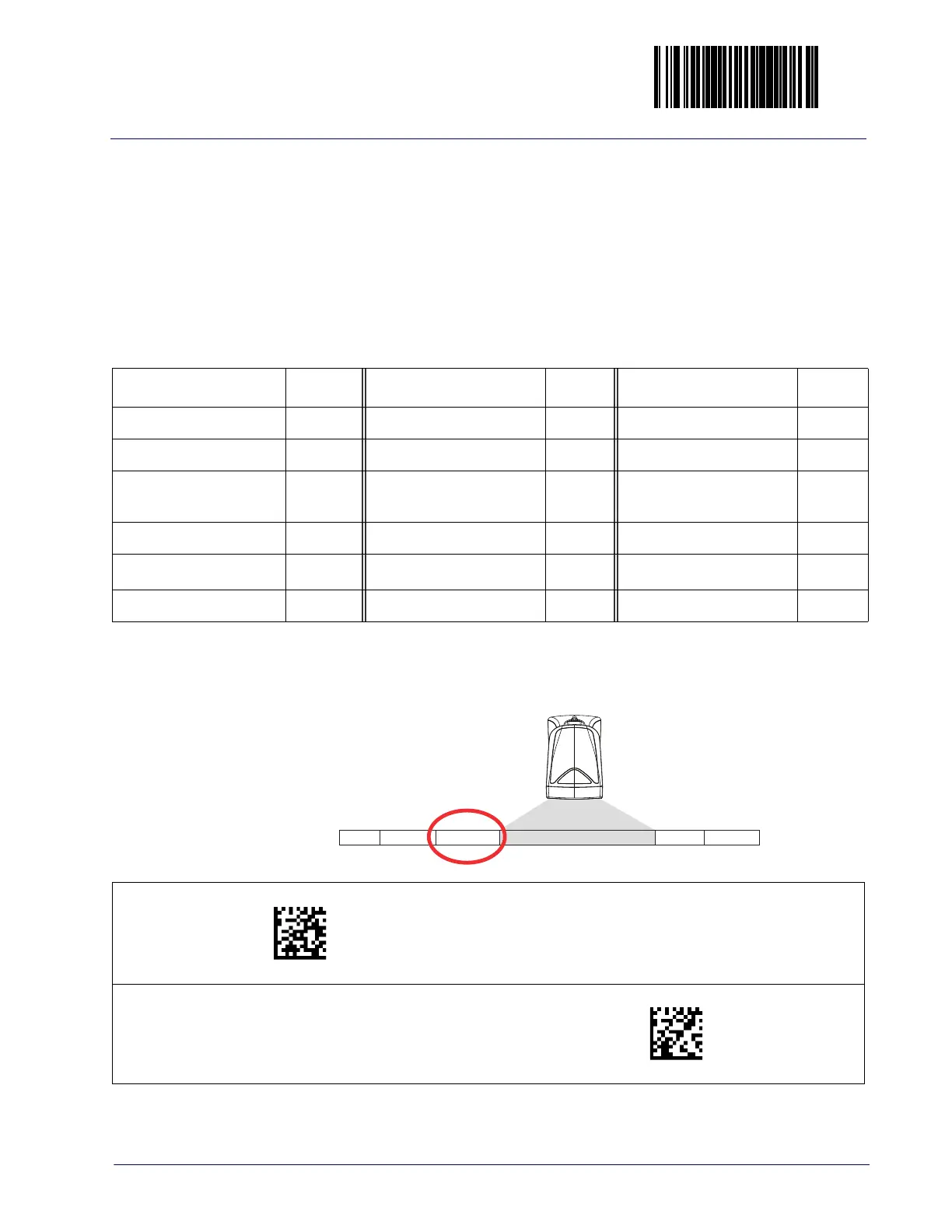

AIM ID
AIM (Automatic Identification Manufacturers) label identifiers are assigned from
a globally standardized list — as opposed to custom label ID characters you
select yourself — and can be included with scanned bar code data. AIM label
identifiers consist of three characters as follows:
• A close brace character (ASCII ‘]’), followed by...
• A code character (see the table below), followed by...
• A modifier character (the modifie
r character is symbol dependent)
Figure 2. AIM ID
Prefix SuffixLabel ID Label IDBar Code DataAIM ID
03A900(CR)
Disable AIM ID
DEFAULT
Enable AIM ID
03A901(CR)
SYMBOLOGY CHAR SYMBOLOGY CHAR SYMBOLOGY CHAR
UPC/EAN
E
Code 128/EAN 128
C
Databar
e
Code 39
A
MSI/Plessey
M
Code 11
H
Codabar
F
RSS (GS1 Omnidirectional,
GS1 Expanded)
e
PDF417, MicroPDF
L
Interleaved 2 of 5
I
Standard 2 of 5
S
DataMatrix
d
Code 93
G
ISBN
X
a
a.ISBN (X with a 0 modifier character)
QR Code, Micro QR Code
Q
Maxicode
U
Aztec
z

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
