Region of Interest (ROI)
This feature specifies the X-Y coordinates for the Region of Interest (ROI). The
region of interest coordinates are defined as follows:
• Byte [0]-[1]: 16 bit hex value xmin
• Byte [2]-[3]: 16 bit hex value xmax
• Byte [4]-[5]: 16 bit hex value ymin
• Byte [6]-[7]: 16 bit hex value ymax

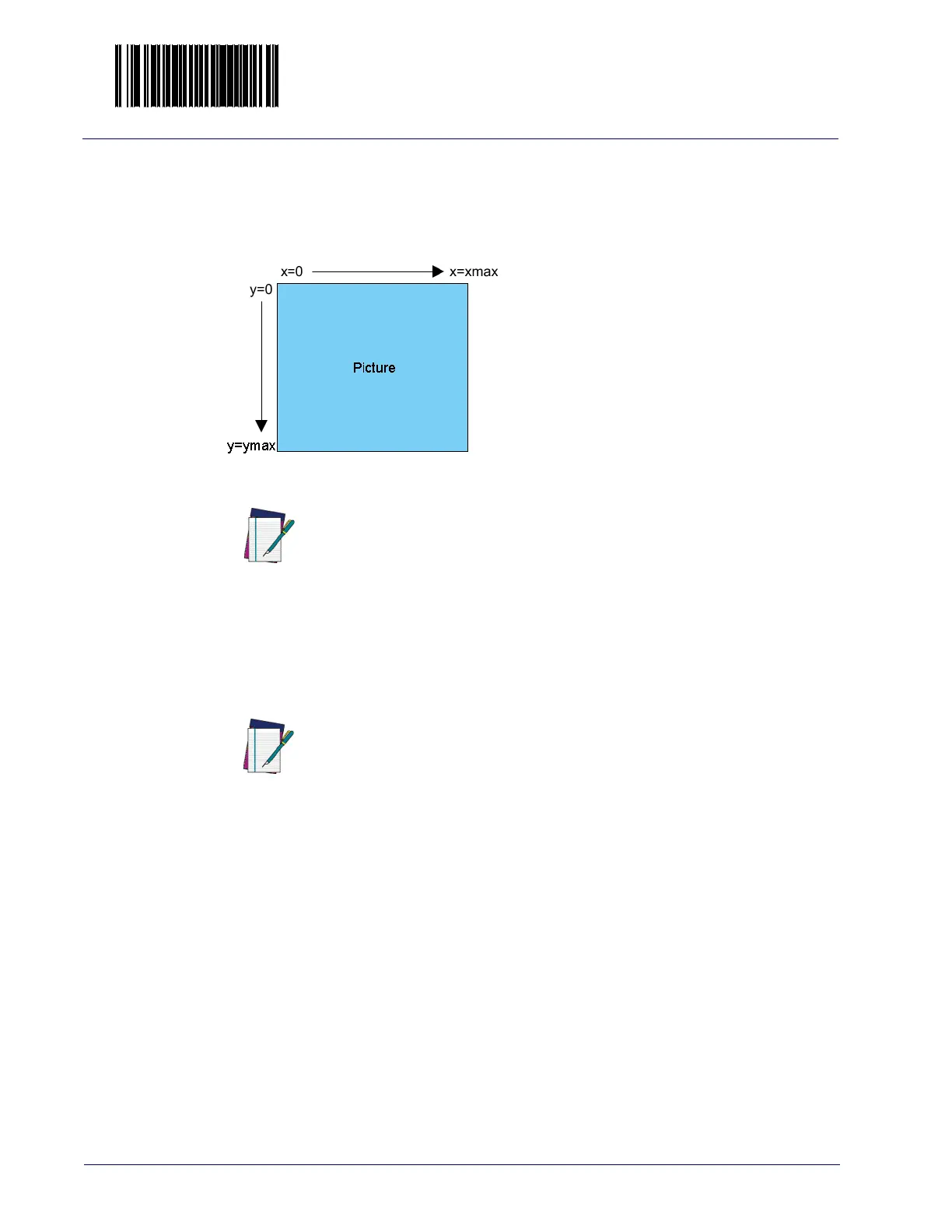

Where xmax is the x-size of a full
size image (1279 pixels), and ymax
is the y-size of a full size image
(1023 pixels).
For example, a coordinate set of 0,
639, 512, 1023 will produce the bot
-
tom left section of a full size image.
NOTE
Picture coordinates are NOT defined on a Cartesian coordinate
plane.
NOTE
If the xmax/ymax values are configured larger than the maximum
values above, they will default to 1 less than their respective max
-
imum values.
If the xmin/ymin values are configured larger than xmax/ymax,
they will default to 0.

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
