Enter/Exit Programming Mode Interface Related Features
226 Magellan™ 9300i / 9400i Scanners
RS-232 Hardware Control
Enables/disables use of the RS-232 CTS signal for flow control and/or scan
control.
Options are:
• Disable — The scanner transmits to the host regardless of any activity on
the CTS line.
• Enable CTS Flow Control — The CTS signal controls transmission of data to the
host.
• Enable CTS Scan Control — The CTS line must be active for scanner to read
and transmit data. While the CTS line is inactive, scanner remains in a
host- disabled state; following a successful label transmission, the CTS
signal must transition to inactive and then to active to enable scanning for
the next label.
• Enable Magellan SL CTS Scan Control — Follows the same hardware proto-
col as older Magellan SL scanners.
To set this feature:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan bar code below or from the following page for the desired setting.
You’ll need to cover any unused bar codes on facing pages to ensure that
the scanner reads only the bar code you intend to scan.
3. Complete the programming sequence by scanning the Enter/Exit Pro-
gramming Mode bar code.

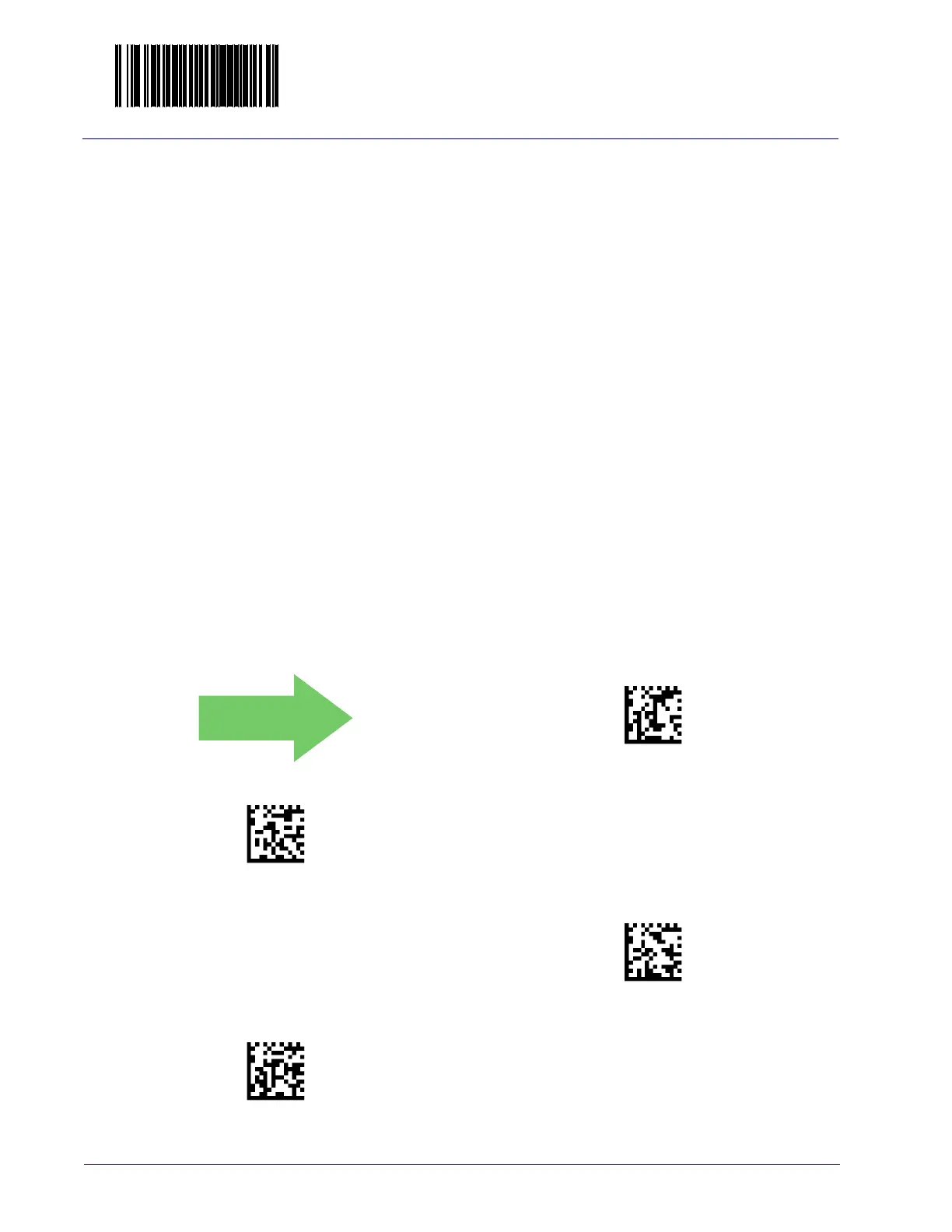

RS-232 Hardware Control = Disable
RS-232 Hardware Control = Enable CTS Flow Control
RS-232 Parity = Enable CTS Scan Control
RS-232 Hardware Control = Enable MGL SL CTS Scan Control
DEFAULT
020F00(CR)
020F01(CR)
020F02(CR)
020F03(CR)
