Datalogic Magellan 9400i User Manual

Scale Features Enter/Exit Programming Mode
Product Reference Guide 177

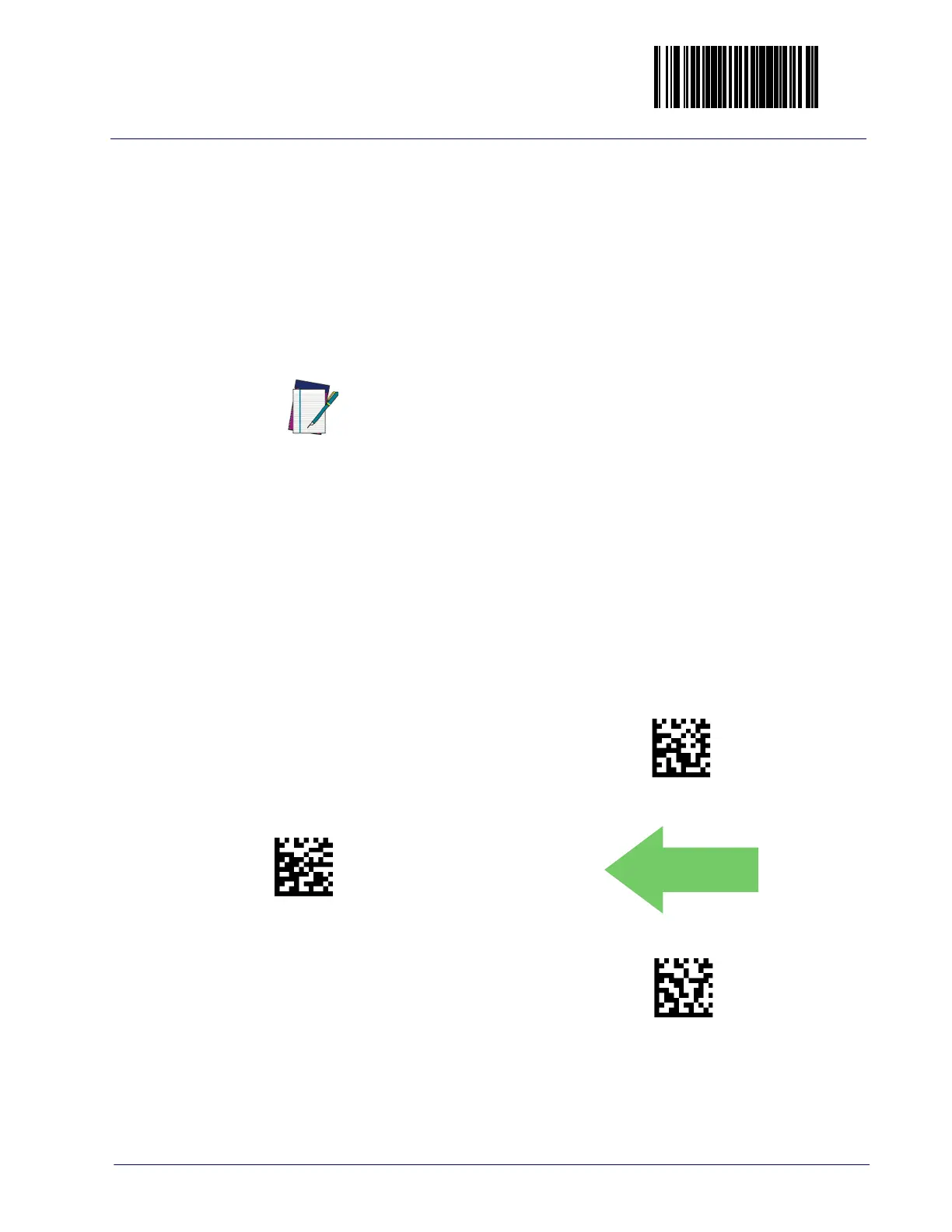

Auxiliary Port Mode
Selects the usage for the scanner’s optional auxiliary port. The choices listed
below are mutually exclusive (only one option can be active at a time).
• Disabled — Port is inactive
• External Handheld Input — Supports non-Datalogic handheld scanners
• Datalogic Handheld Input — Supports Datalogic
TM
handheld scanners
(QuickScan
TM
1000, QuickScan
TM
6000, PowerScan
TM
) as well as other
models such as the Symbol® HotShot.
Call your dealer for more information about supported devices.
To set this feature:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan your selection from the bar codes below. You’ll need to cover any
unused bar codes on this and the facing page to ensure that the scanner
reads only the bar code you intend to scan.
3. Complete the programming sequence by scanning the Enter/Exit Pro-
gramming Mode bar code.
NOTE
Cable pinout information for the Aux Port is provided in
Appendix B of this manual. A connected handheld scanner
must be configured to transmit data as outlined in
Appendix E.
Auxiliary Port Mode = Disable
Auxiliary Port Mode = External Handheld Input
Auxiliary Port Mode = Datalogic Handheld Input
050900(CR)
050901(CR)
DEFAULT
050902(CR)

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
