Datalogic Magellan 9400i User Manual

Enter/Exit Programming Mode
Product Reference Guide 221
RS-232 Features
RS-232 Baud Rate
This feature selects the baud rate required for sending and receiving data.
To specify the RS-232 Baud Rate:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan the desired baud rate from the bar codes below and on the immedi-
ately following pages. You’ll need to cover any unused bar codes on this
and the facing page to ensure that the scanner reads only the bar code you
intend to scan.
3. Complete the programming sequence by scanning the Enter/Exit Pro-
gramming Mode bar code.
NOTE
Single cable interfaces are limited to Baud Rate
selections up to 19200. They cannot communicate at
Baud Rates of 38400 and up.

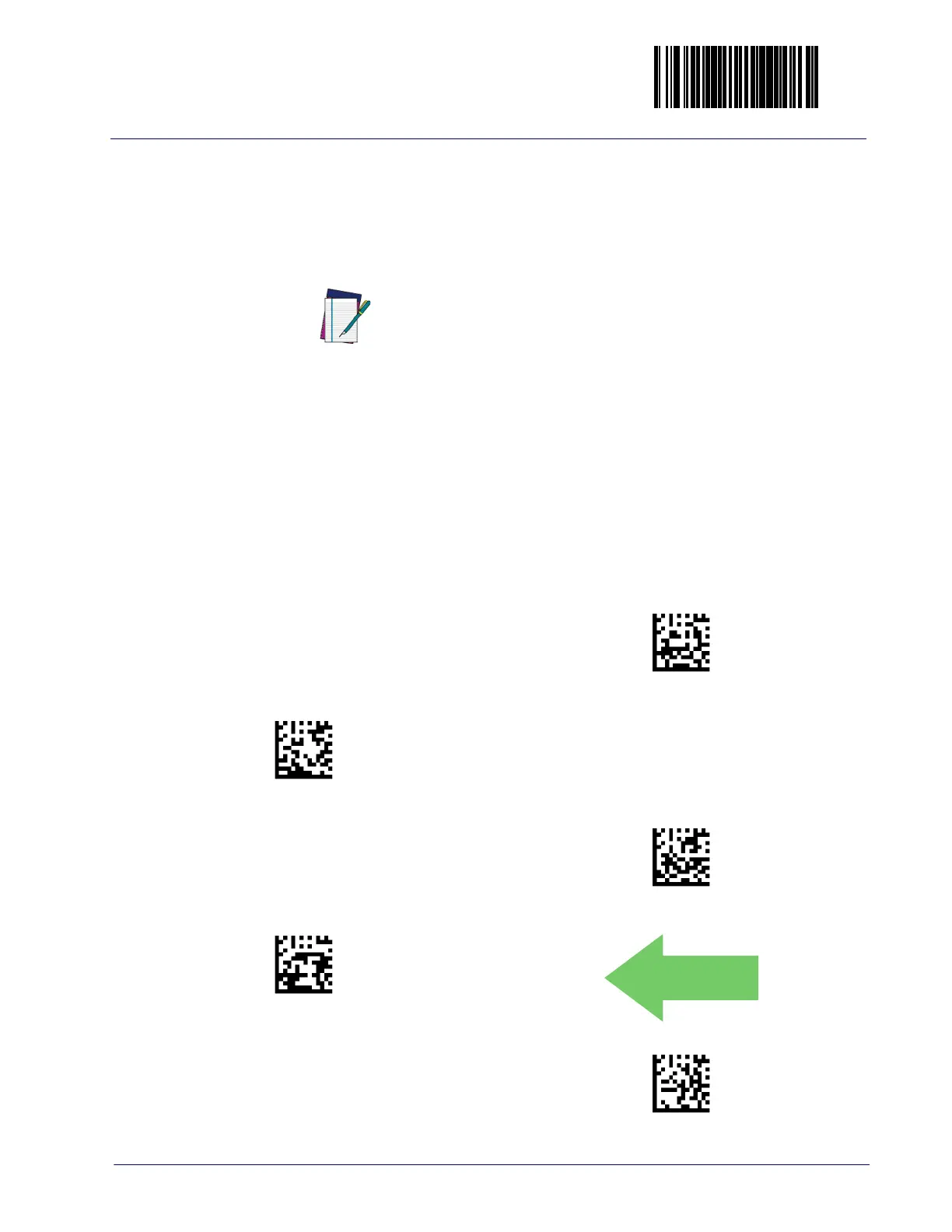

RS-232 Baud Rate = 1200
RS-232 Baud Rate = 2400
RS-232 Baud Rate = 4800
RS-232 Baud Rate = 9600
RS-232 Baud Rate = 19200
001D04(CR)
001D03(CR)
001D02(CR)
001D01(CR)
DEFAULT
001D00(CR)

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
