Datalogic Magellan 9400i User Manual

62 Magellan™ 9300i / 9400i Scanners
Optional CSS Feature
The Customer Service Scanner (CSS) provides a convenient way for the customer
to present digital coupons or other bar codes from a cell phone or other device
for convenient reading during checkout. Items to be scanned are presented to
the down-facing CSS as shown in
Figure 35.
Enable/Disable CSS
For systems which include an optional CSS, it is possible to program the Image
Capture/CSS button on the scanner so that the sales associate can activate or
deactivate the CSS using that button. This allows the associate to control when
customers are able to scan bar codes. See
"CSS Features" on page 122 for more
details about this option.
For more information about the Customer Service Scanner, reference the CSS
Quick Reference Guide (QRG).

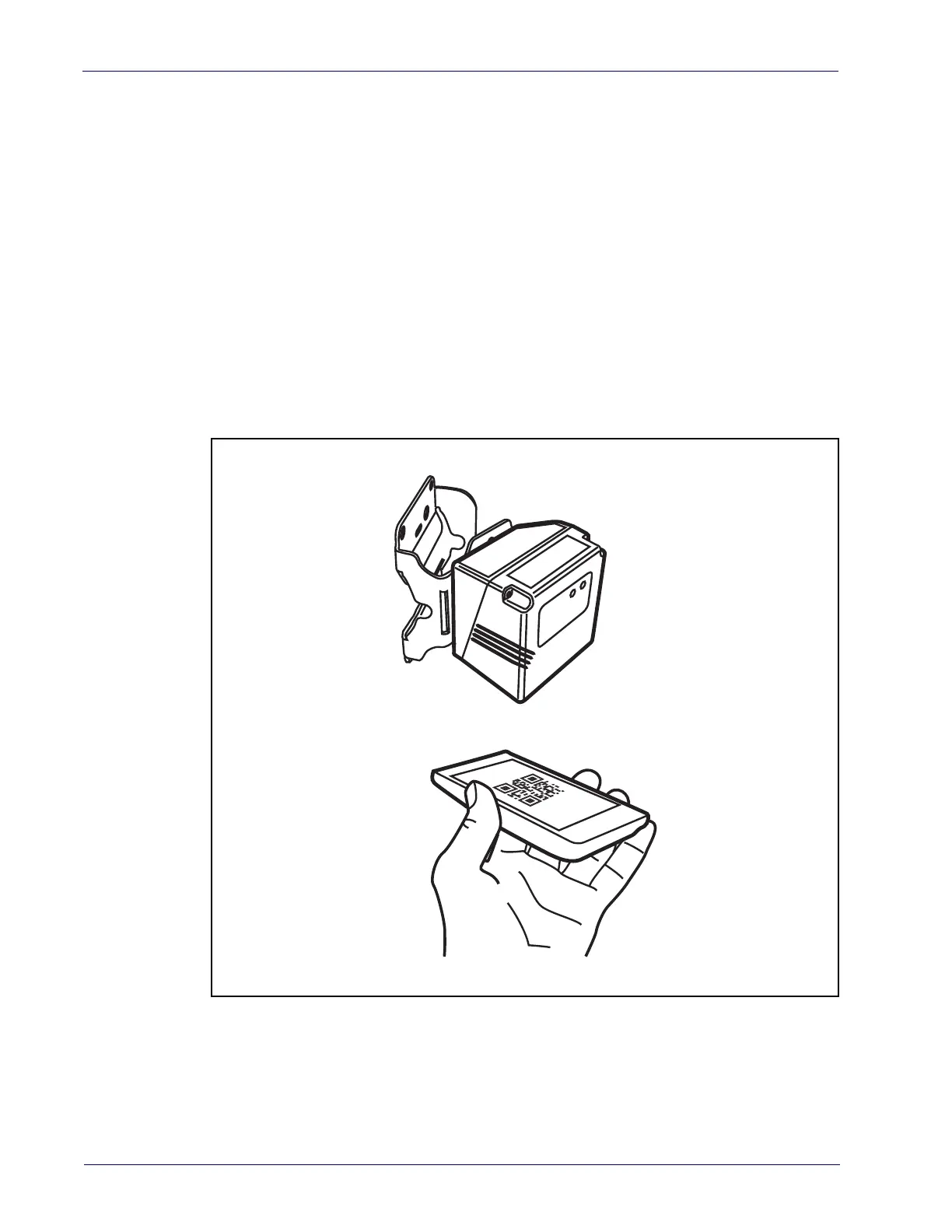

Figure 35. Customer Service Scanner (CSS)
Coupon

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
