Enter/Exit Programming Mode Interface Related Features
250 Magellan™ 9300i / 9400i Scanners
Set Single Cable RS-232 STX Character
This feature selects the STX character.
To specify the STX Character:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan the bar code, Set Single Cable RS-232 STX Character on page 250
below. You’ll need to cover any unused bar codes on this and the facing
page to ensure the scanner reads only the bar code you intend to scan.
3. Scan the appropriate characters/digits from the Keypad on page 461 in
Appendix C that represent the decimal designation for the desired charac-
ter. A table containing the ASCII Character Set and their corresponding
decimal values is available in the inside back cover of this manual. ASCII
parameters must be input by scanning decimal digits for each character.
Pad all numbers with leading zeroes to yield a three-digit entry (001-127).
Thus, to set a single character value of A, bar codes containing the digits
‘0’, ‘6’ and ‘5’ must be scanned. The selectable range for this option is any
decimal value from 001 to 127.
4. The scanner will automatically exit Programming Mode when the appro-
priate amount of digits have been scanned.

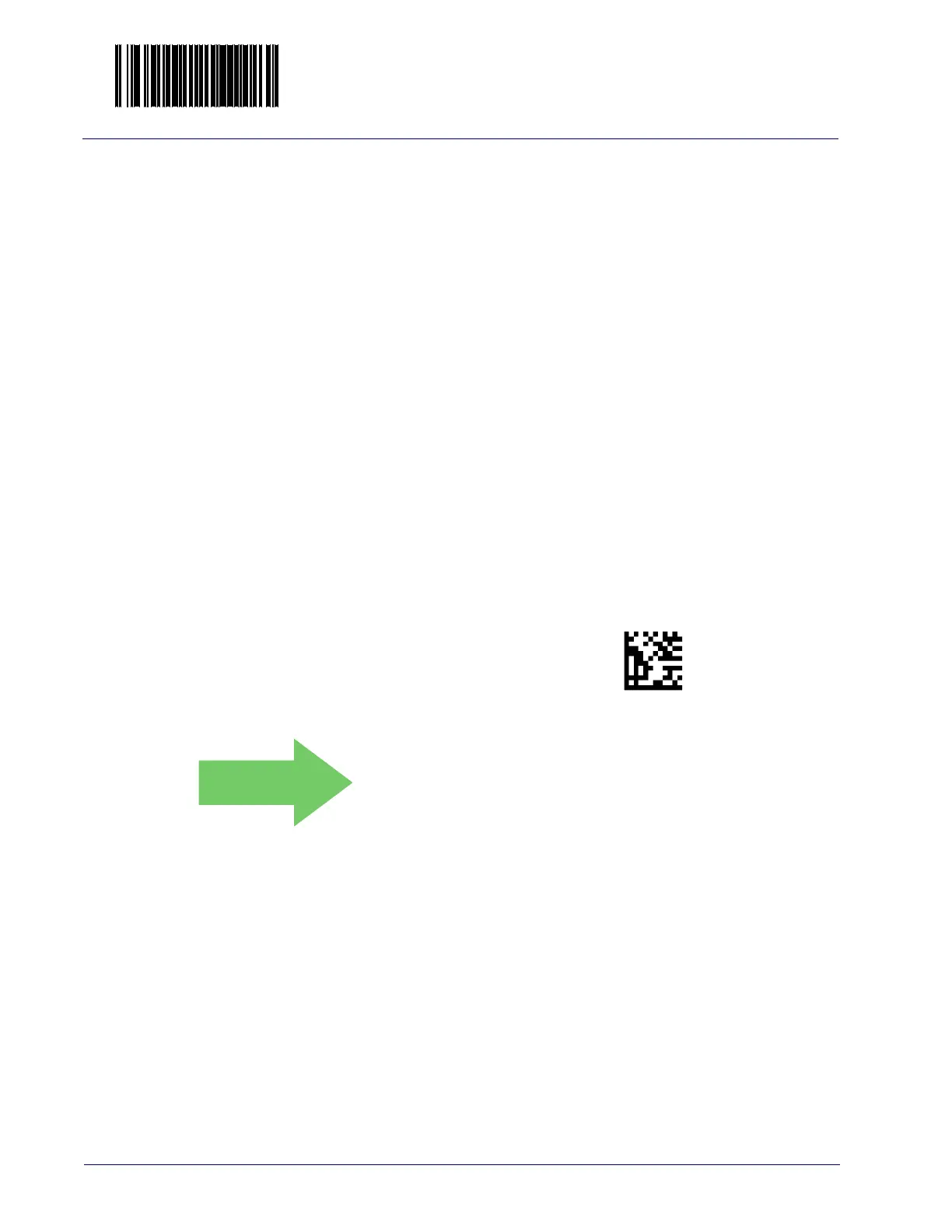

Set Single Cable RS-232 STX Character
Default setting for this feature is:
053 - S
0479(CR)
DEFAULT

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
