Datalogic Magellan 9400i User Manual

Optional Remote Scale Display
Product Reference Guide 45
Optional Remote Scale Display
Placement/Installation
When installing the optional Remote Scale Display, consider both the cus-
tomer’s viewing angle and the daily ambient light conditions anticipated at your
installation site.
Figure 25 shows available adjustment for the display head.
Lighting Considerations
The display(s) will be easily readable unless placed in direct sunlight or other
very strong light sources. Light interference will not be a factor in most instal
-
lations. For best viewing, the display head(s) can each be rotated up to 180
º
around the post and/or tilted 15
º
backward or forward.
Viewing Angle
The optimum display angle is directly facing the viewer. Tilt and rotation
adjustments can be made for the Remote Display models as shown in
Figure
25. To ensure that displays are easily readable for customers/cashiers of aver-
age height, display heads should be between 122 to 152 cm (48” to 60”) from
the floor.

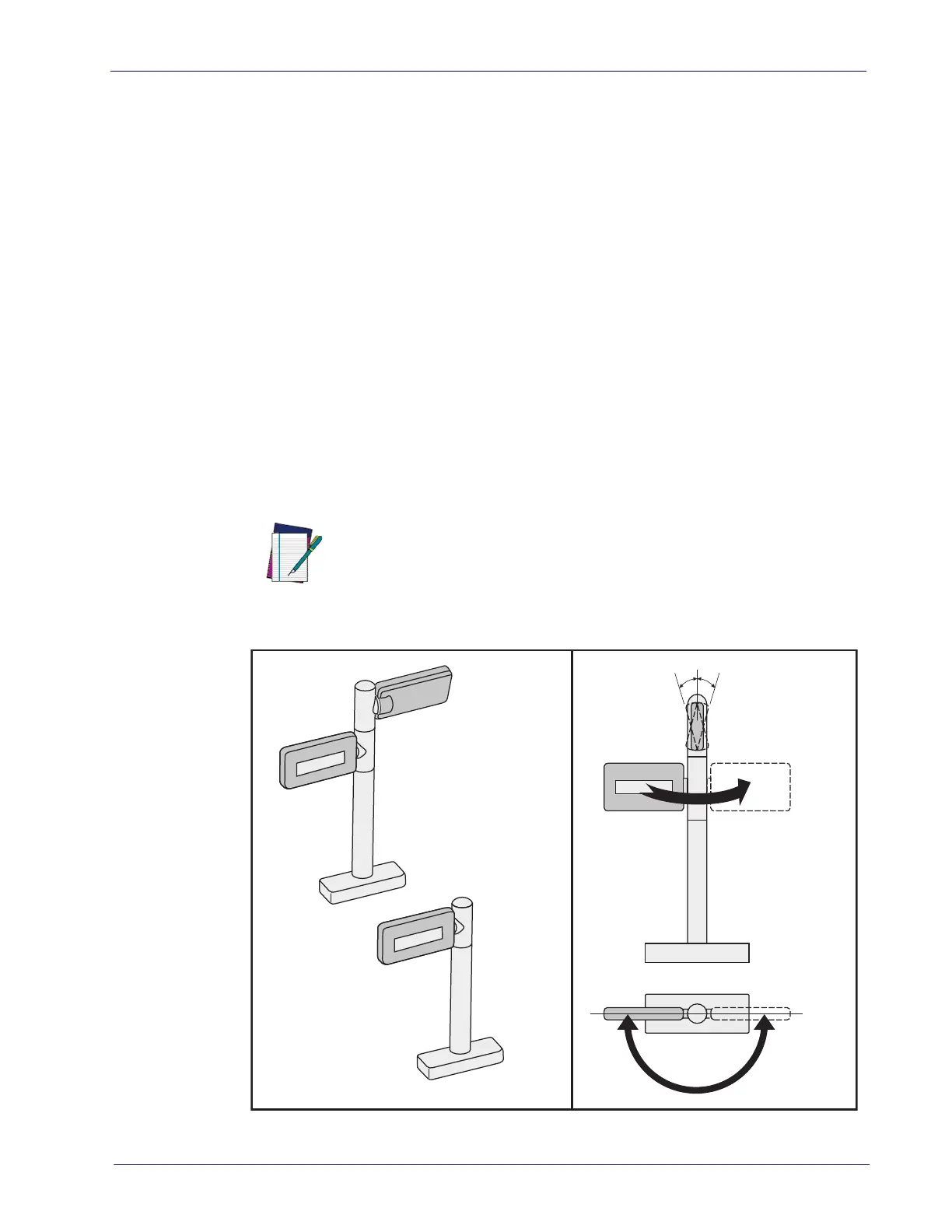

Figure 25. Modular/Adjustable Remote Scale Display
NOTE
Check with local Weights and Measures authorities regarding
proper positioning of scale displays used in retail trade.
180°
Rotation
15°
Upward or
Downward Tilt
180°
Rotation
15° 15°
Dual Display
Heads
Single Display
Head

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
