Enter/Exit Programming Mode GS1 DataBar

™

Omnidirectional

120 RIDA™ DBT6400

GS1 DataBar

™

Omnidirectional

The following options apply to the GS1 DataBar Omnidirectional (formerly RSS-

14) symbology.

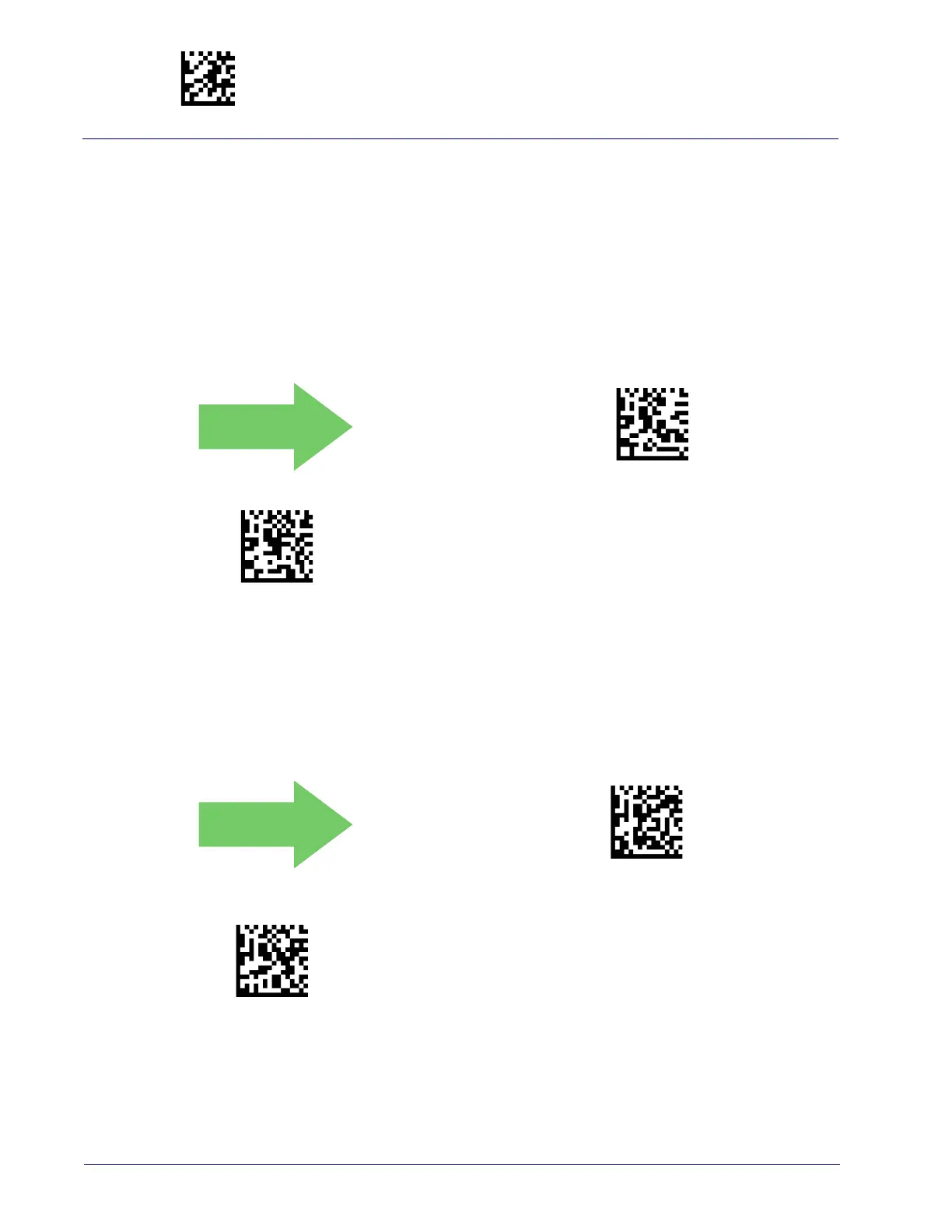

GS1 DataBar Omnidirectional Enable/Disable

When disabled, the scanner will not read GS1 DataBar Omnidirectional bar

codes.

DEFAULT

GS1 DataBar Omnidirectional = Disable

GS1 DataBar Omnidirectional = Enable

GS1 DataBar Omnidirectional GS1-128 Emulation

When enabled, GS1 DataBar Omnidirectional bar codes will be translated to the

GS1-128 label data format.

DEFAULT

GS1 DataBar Omnidirectional GS1-128 Emulation =

Disable

GS1 DataBar Omnidirectional GS1-128 Emulation = Enable

$C4BEN00

$C4BEN01

$C4BU800

$C4BU801
