Setup
6 RIDA™ DBT6400
The Base Station can be powered up by an external power supply or by a Host
via the micro USB Cable. Both the power cable and the micro USB cable can be
connected at the same time on the Base; in this case, USB connection is used for
data exchange with the Host, while power is supplied from external power sup-
ply.

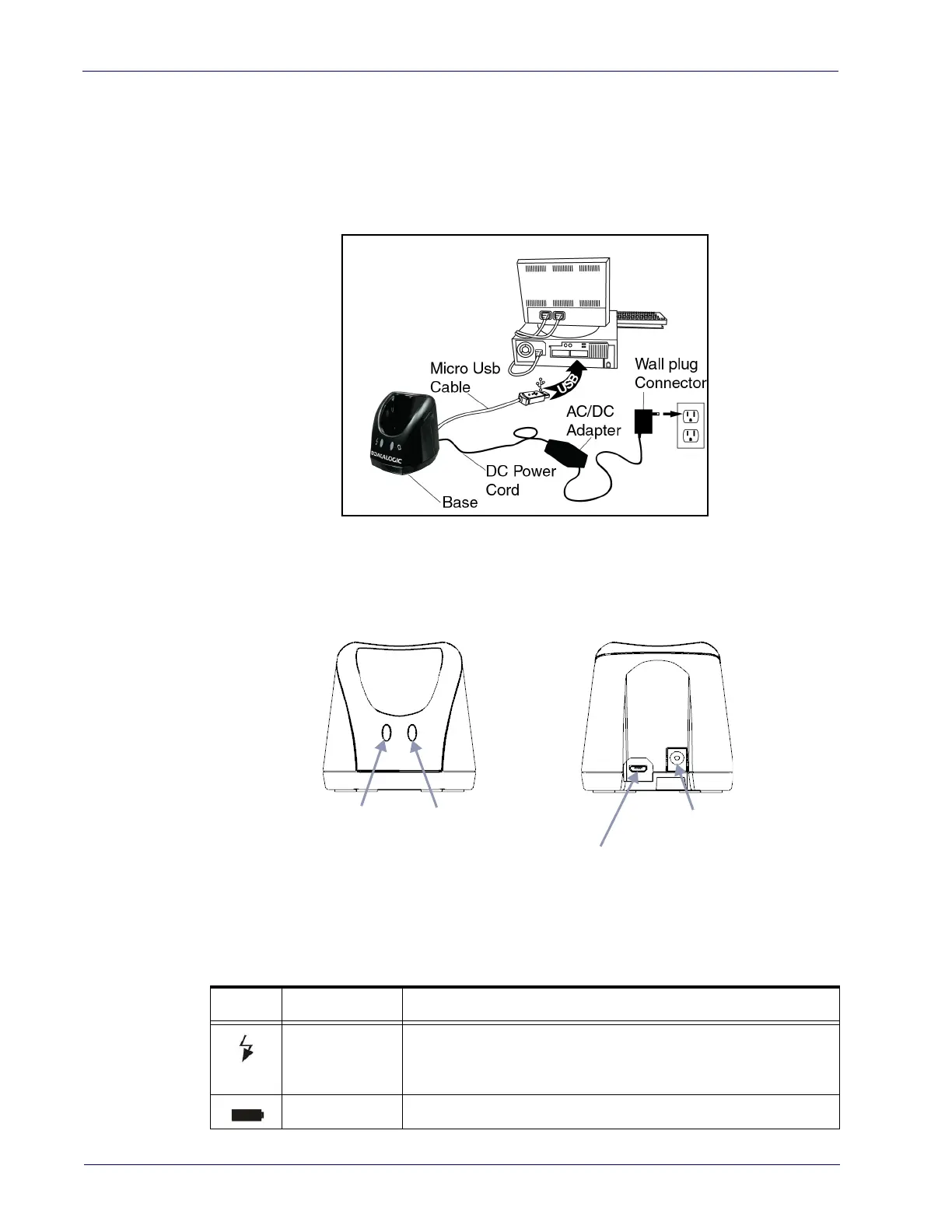

The figure below shows how to connect the Base Station to a terminal PC or to
another Host device.
Using the BC6020 Base Station
LEDs on BC6020 Base Station provide information about the Base as well as the
battery charging status, as shown in the figure below.
Power On/
Data LED
Charging LED
Micro USB Cable
Connector
External Power
Connector
The behaviour and meaning of the LEDs are summarized in Table 1:
Table 1. Radio Base LEDs
LED Status
Power On/ Data
Yellow On = base is powered.
Yellow Blinking = base receives data and commands from the Host
or the reade
r.
Charging Green Blinking = battery is charging.
