Datalogic RIDA DBT6400 - Industrial 2 of 5; Industrial 2 of 5 Enable;Disable; Industrial 2 of 5 Check Character Calculation

To Next Page

To Previous Page

Enter/Exit Programming Mode Industrial 2 of 5

170 RIDA™ DBT6400

Industrial 2 of 5

The following options apply to the Industrial 2 of 5 symbology.

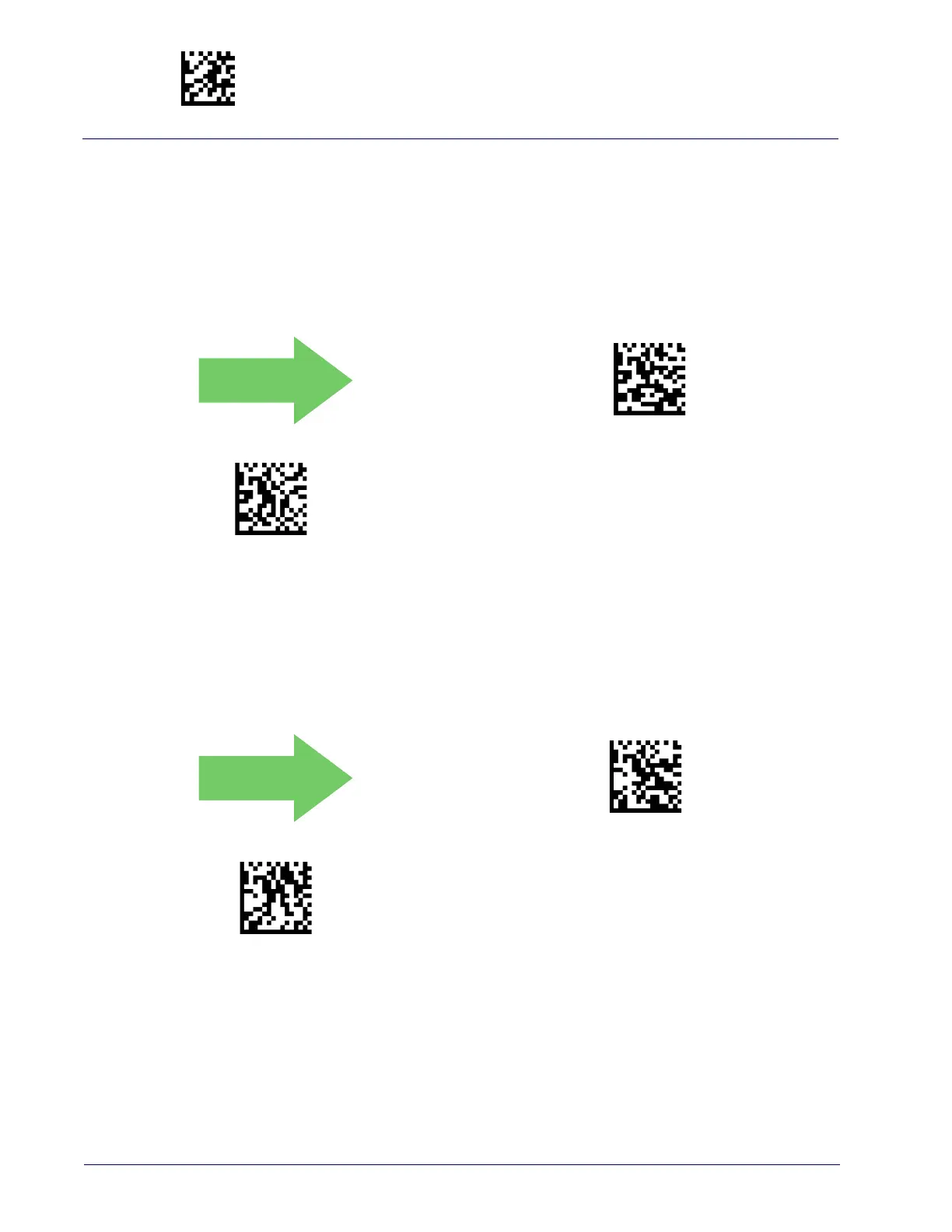

Industrial 2 of 5 Enable/Disable

Enables/Disables ability of scanner to decode Industrial 2 of 5 labels.

DEFAULT

Industrial 2 of 5 = Disable

Industrial 2 of 5 = Enable

Industrial 2 of 5 Check Character Calculation

Enables/Disables calculation and verification of an optional Industrial 2 of 5

check character.

DEFAULT

Industrial 2 of 5 Check Character Calculation = Disable

Industrial 2 of 5 Check Character Calculation = Enable

$CU2EN00

$CU2EN01

$CU2CC00

$CU2CC01
