Enter/Exit Programming Mode GS1 DataBar™ Limited

124 RIDA™ DBT6400

GS1 DataBar™ Limited

The following options apply to the GS1 DataBar Limited (formerly RSS Limited)

symbology.

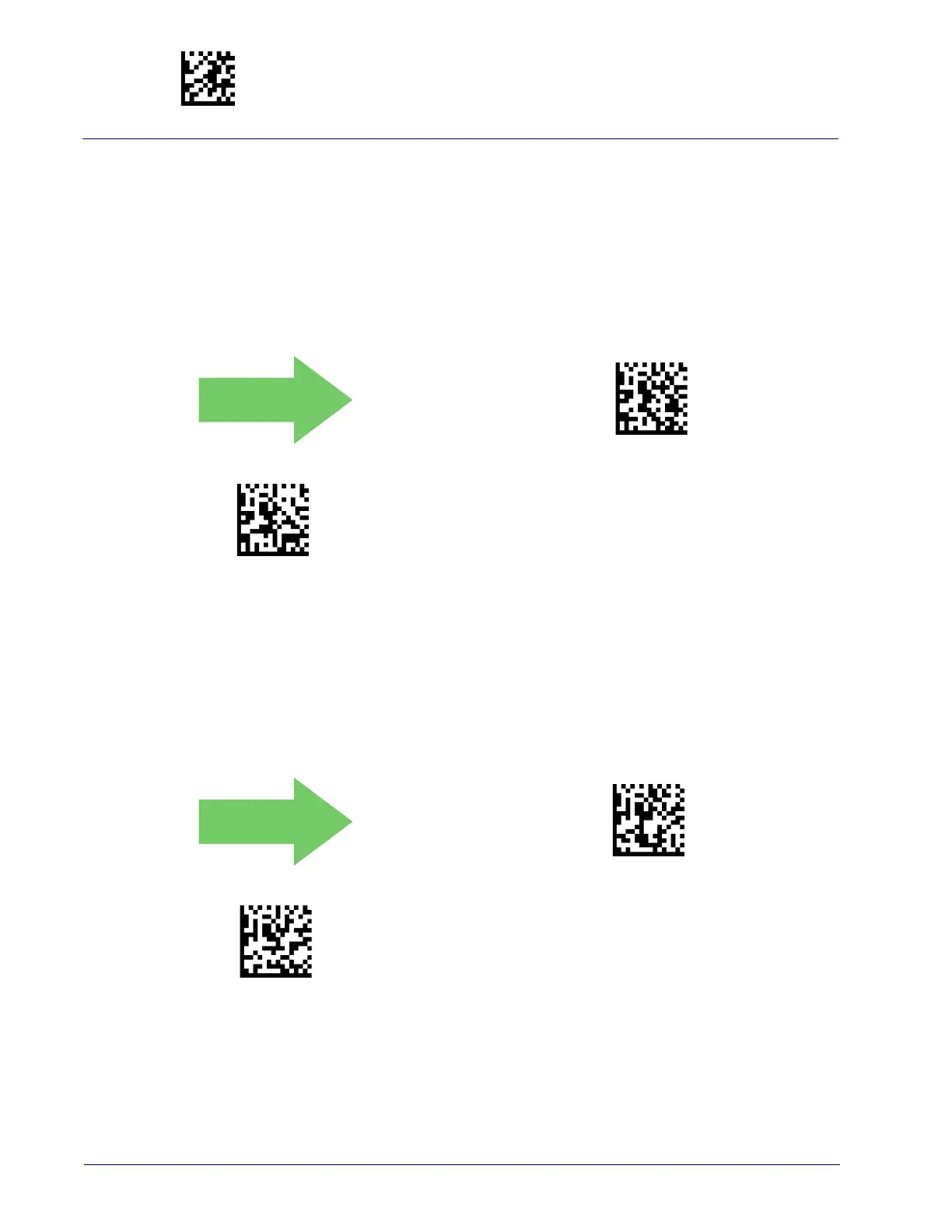

GS1 DataBar Limited Enable/Disable

When disabled, the scanner will not read GS1 DataBar Limited bar codes.

DEFAULT

GS1 DataBar Limited = Disable

GS1 DataBar Limited = Enable

GS1 DataBar Limited GS1-128 Emulation

When enabled, GS1 DataBar Limited bar codes will be translated to the GS1-128

label data format.

DEFAULT

GS1 DataBar Limited GS1-128 Emulation = Disable

GS1 DataBar Limited GS1-128 Emulation = Enable

$CLBEN00

$CLBEN01

$CLBU800

$CLBU801
