ProfiMessage

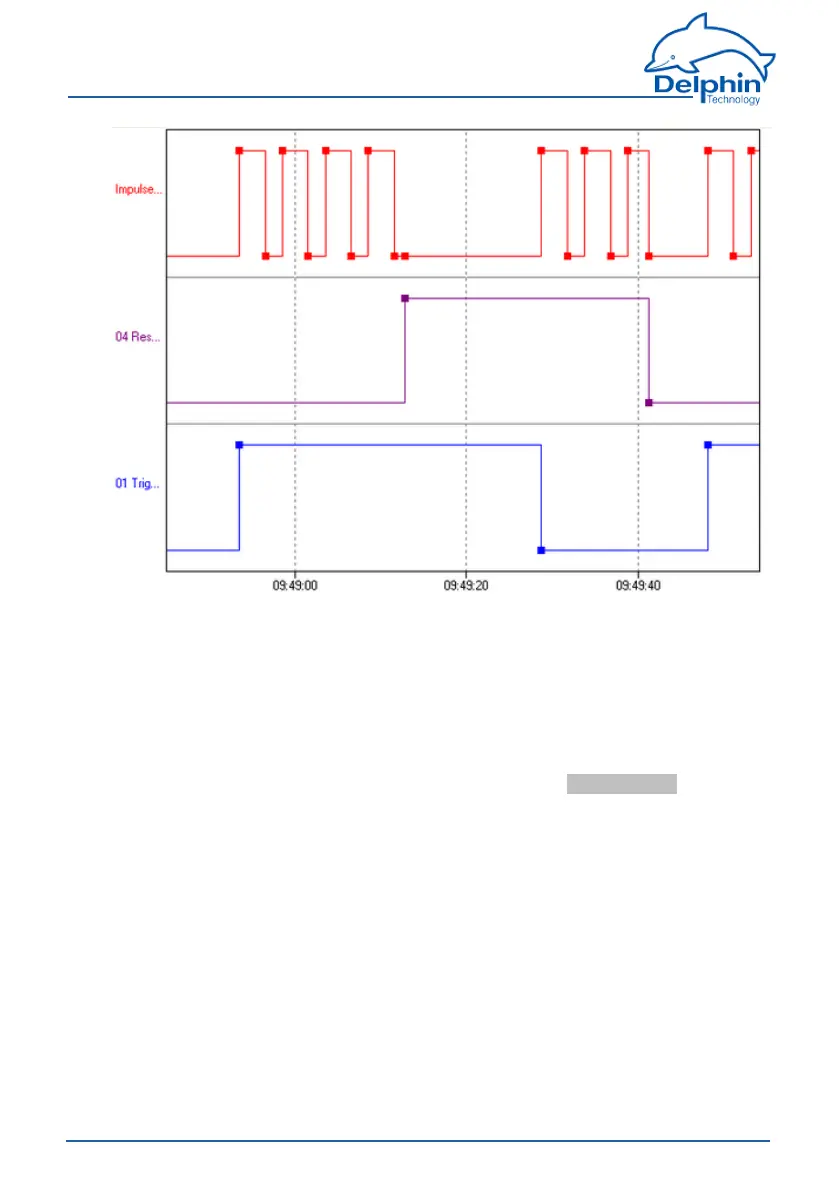

Thetrigger(blue curve)startsthepulsegenerator(red curve)witharising
edge.Thenthereset(purple curve)istriggeredwitharisingedgeandthepulse
generatorisstopped.Pulsesaregeneratedagainonlyafterthetriggergivesanew
startsignalwithafallingedge.Afallingedgeoftheresetchannelstopsthepulse
generatoragainandpulsesaregeneratedagainonlyaftertherisingedgeofthe
triggerchannel.
b)
ThetriggeristriggeredbyachannelandhasbeensettoEdges (both) .Thereset
isalsotriggeredbyachannel,buthasbeensettoHighlevel.
109
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
