Delphin ProfiMessage User Manual

ProfiMessage

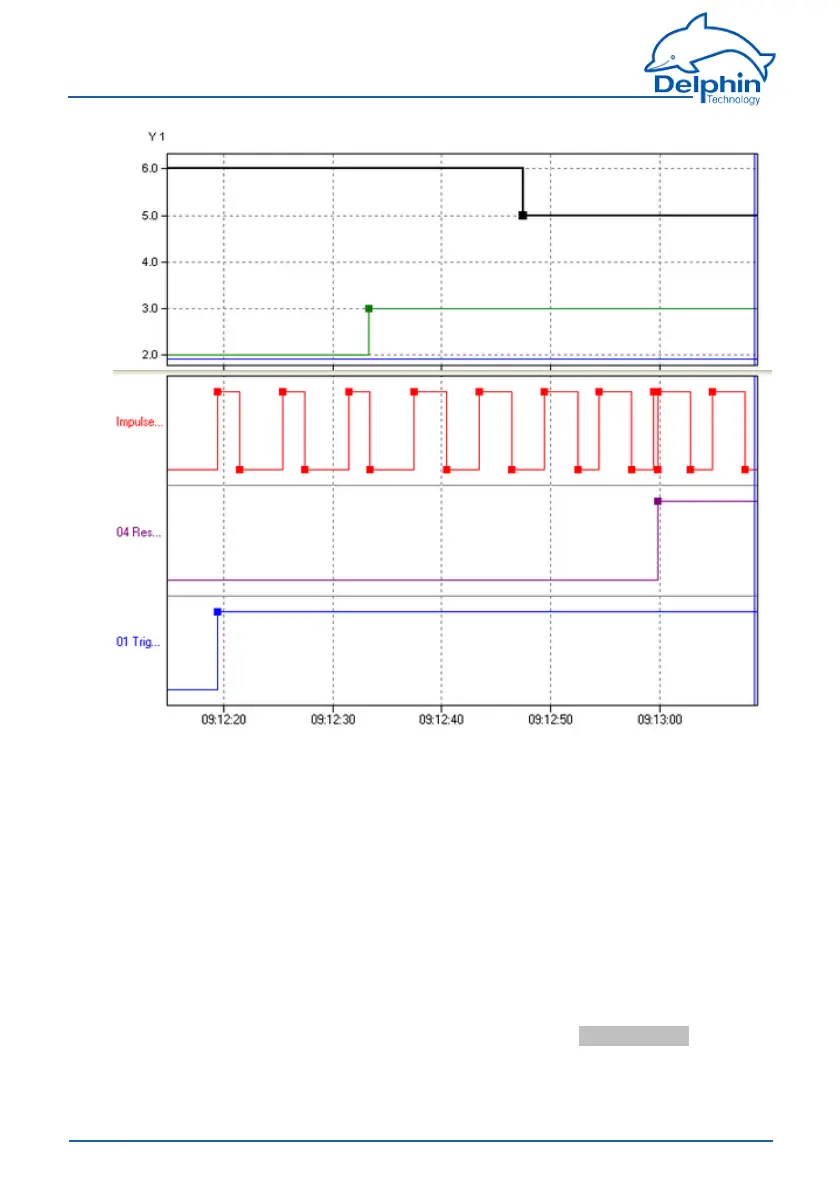

Thepulsegenerator(red curve)isstartedbythetriggerchannel(blue curve)
witha2-secondpulseduration(green curve)anda6-secondcycletime(black
curve).Afterthreepulses,thepulsedurationisincreasedto3seconds(green
curve).Afteranothertwopulses,thecycletime(black curve)isreducedto5
seconds.Justbefore9:13:00,aresetoccursattherisingedgeoftheresetchan-
nel.Becausethetriggersourcehasa"High"level,thepulsedurationre-starts
eventhoughapulsehasalreadybegun.
Example 3
Thefollowingexamplesillustratetherelationshipbetweentriggersignalandreset
signal.
a)
TriggerandresetaretriggeredbychannelsandaresettoEdges (both) .Then
boththesignal'srisingandfallingedgestriggertheevent.
108
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
