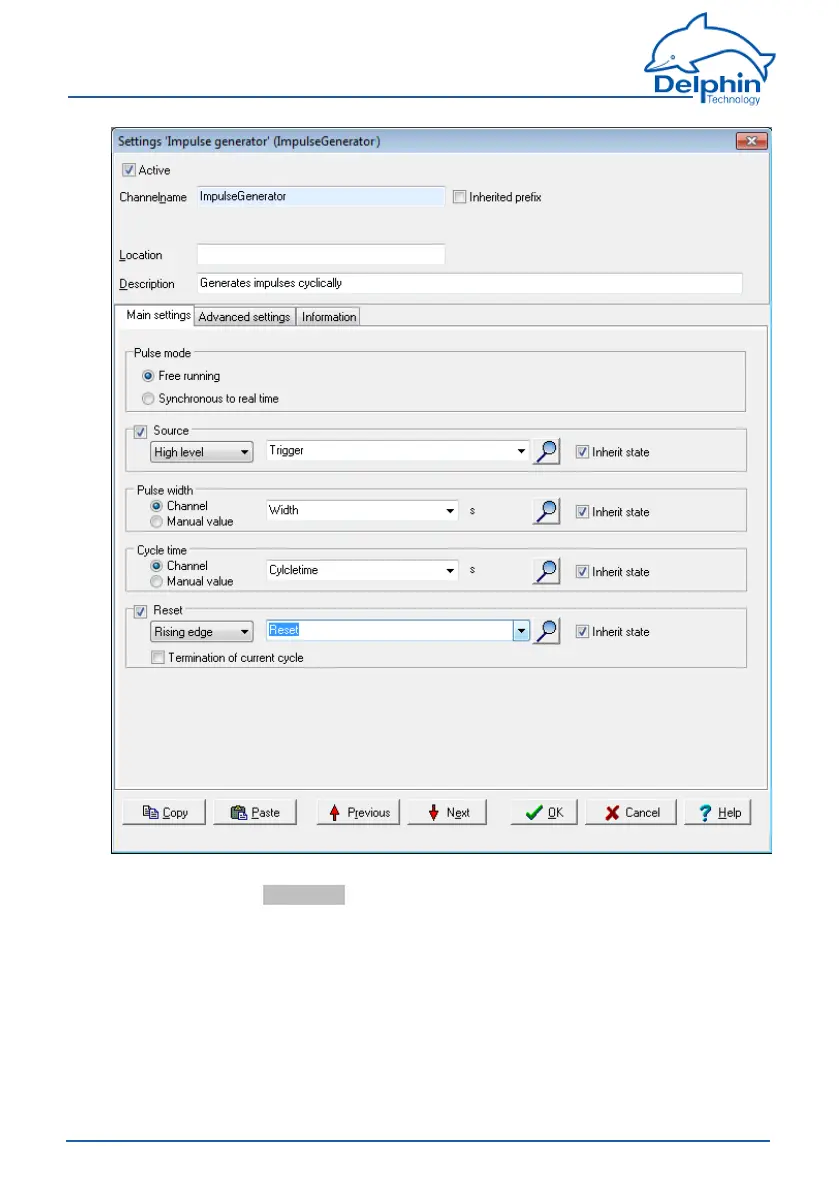

Inthisexample,thepulsegeneratorrunsincontrolledmode.Thetriggeris
enabledbysettingHigh level ("High").Thepulsewidthandcycletimearesetby
otherchannels.Notethatthesechannelsmaynotissuenegativevalues(noneg-
ativetimes)norconflictingvaluessuchasapulsewidthgreaterthanthecycle
time.Anotherchannelisgivenforthereset.
