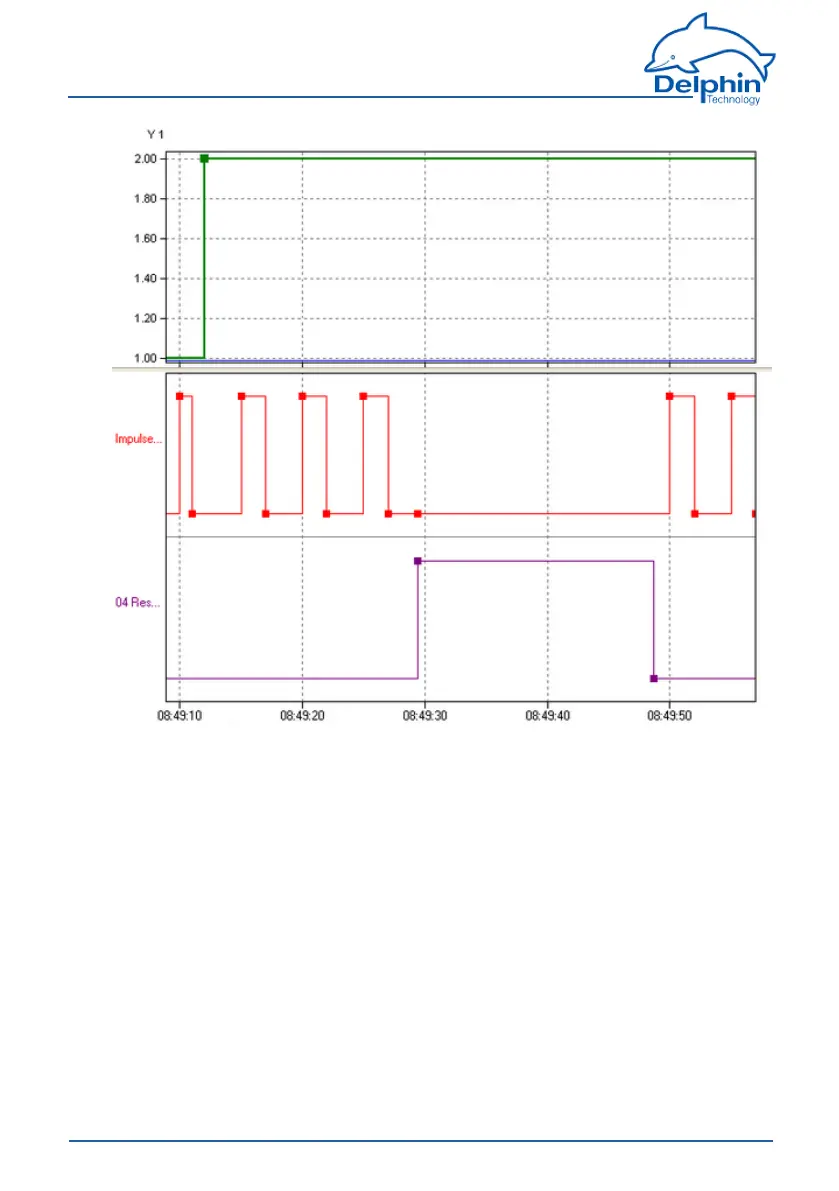

Oncethepulsegeneratorstarts(red curve)withapulsedurationof1second,
thepulsedurationissetto2seconds(green curve).Afterthreepulses,thereset
channel(purple curve)givestheresetsignalandthepulsegeneratorissuesno
morepulses(thenextpulsewouldbedueat8:49:30).Pulsesbeginagainonly
afterdeletingtheresetsignal(level="Low").Thecycletimeindicatesthatthe
nextpulsewillbeoutputat08:49:50.
Example 2
106
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
