ProfiMessage
Reset:Aresetevent(atriggerviaLevelorEdge)endsthedelaytimeandputsthe
timeroutputintoanon-activestate("Off").Theresetchannelhasahigherpriority
thanthesource.Thisenablesaresetstatetoblockthetimerfunction.
Delay:Entereitheraconstantvalue(Manual value)oruseChanneltoselectan
existingchannelwithavaluethatdeterminesthedelaytimeinseconds.

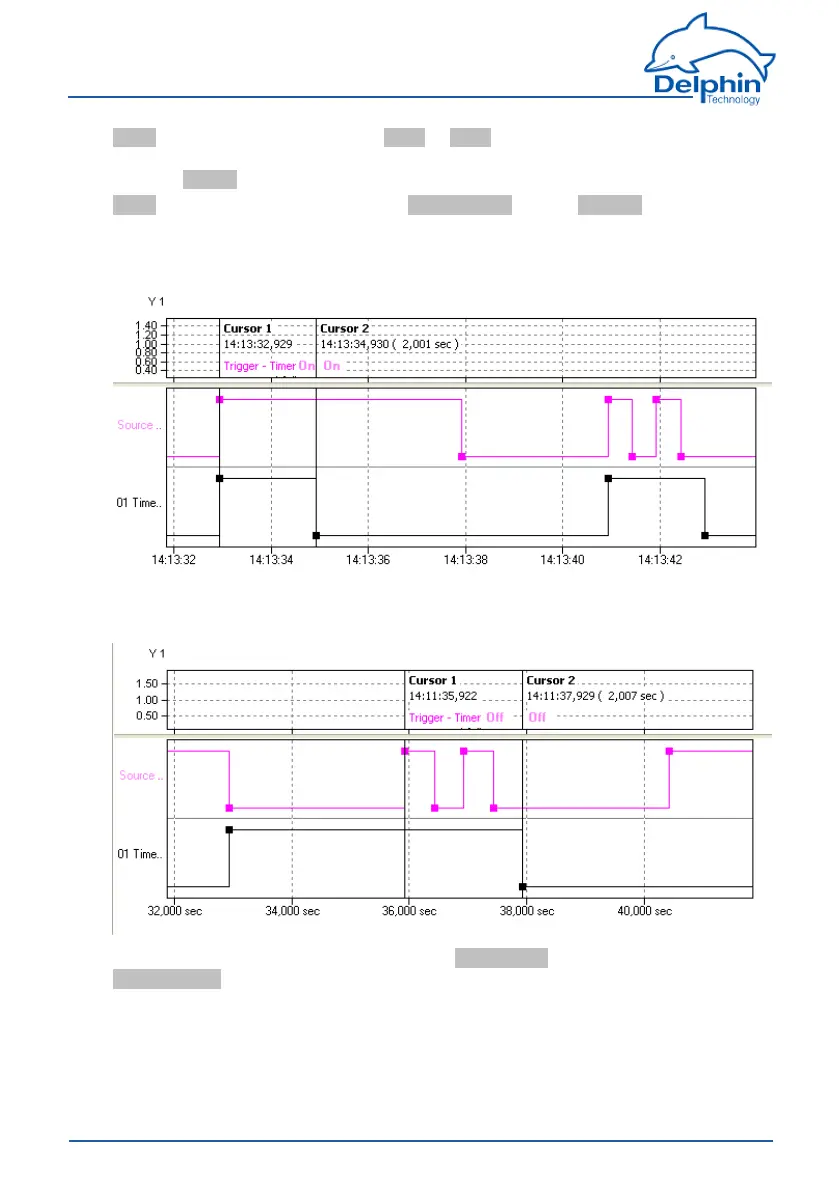

Example for dropout delay

Thesource(purple curve)triggerswitharisingedge.Thedelayis2seconds.Ret-
riggerableisnotenabled.

Thesource(purple curve)triggerswithafalling edge.Thedelayis7seconds.
Retriggerableisnotenabled.
Examplesforreset
