Delta DVP-20PM

5 Applied Instructions and Basic Usage
DVP-20PM Application Manual
5-242
 Descriptions of the parameters in the system used
 Number of rings forming a layer: 20
 Total number of rings: 100
 Space: 0.3 mm
 Number of pulses it takes for the master axis specified to rotate once: 1000 pulses
 Circumference of the slave axis specified: 10 mm
 Number of pulses it takes for the slave axis specified to rotate once: 10,000 pulses

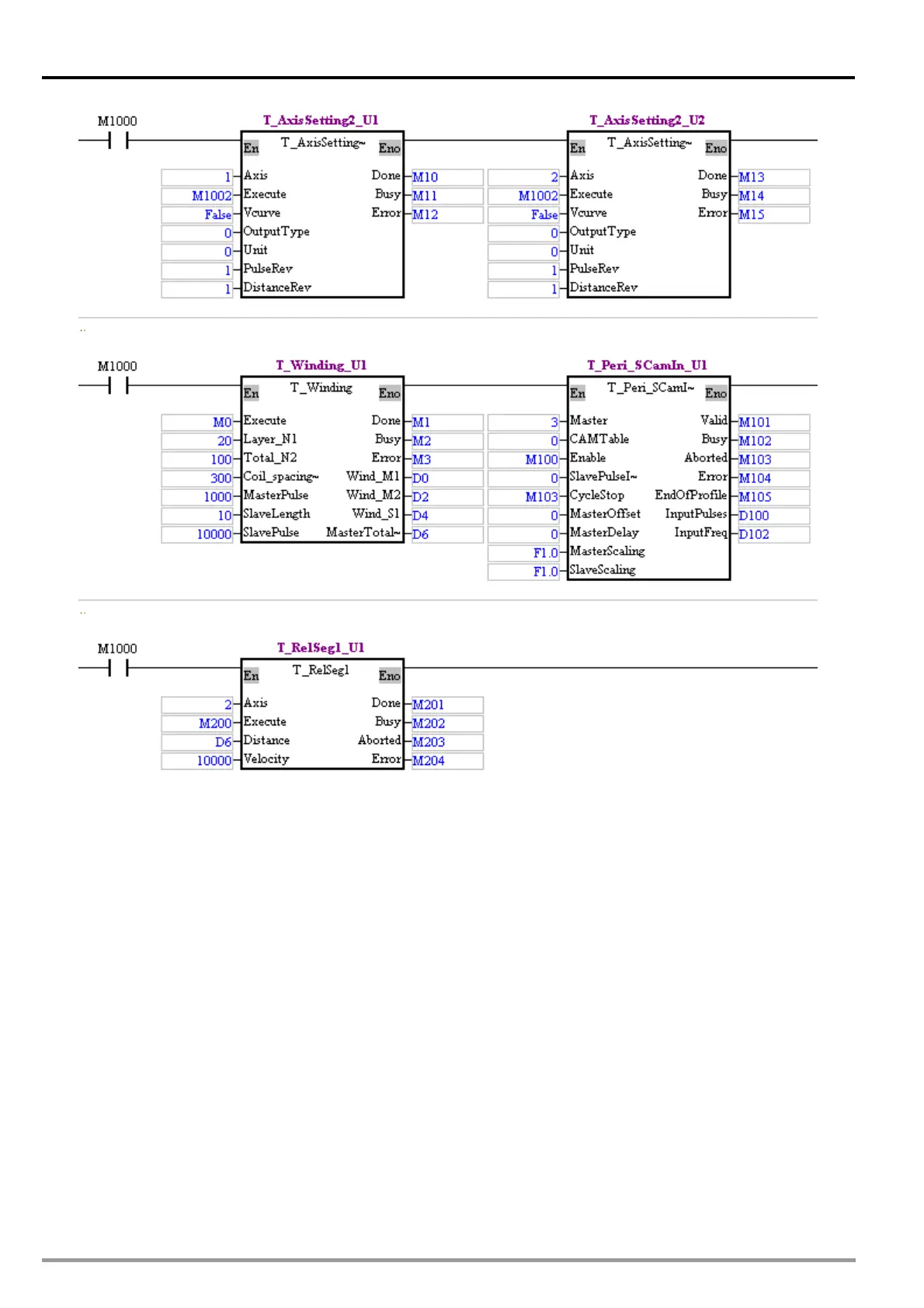

 Setting the parameters in the motion control function block T-Winding
 Layer_N1: K20
 Total_N2: K100
 Coil_spacing_D: 0.3mm=300 um→K300
 MasterPulse: K1,000
 SlaveLength: K10
 SlavePulse: K10,000
