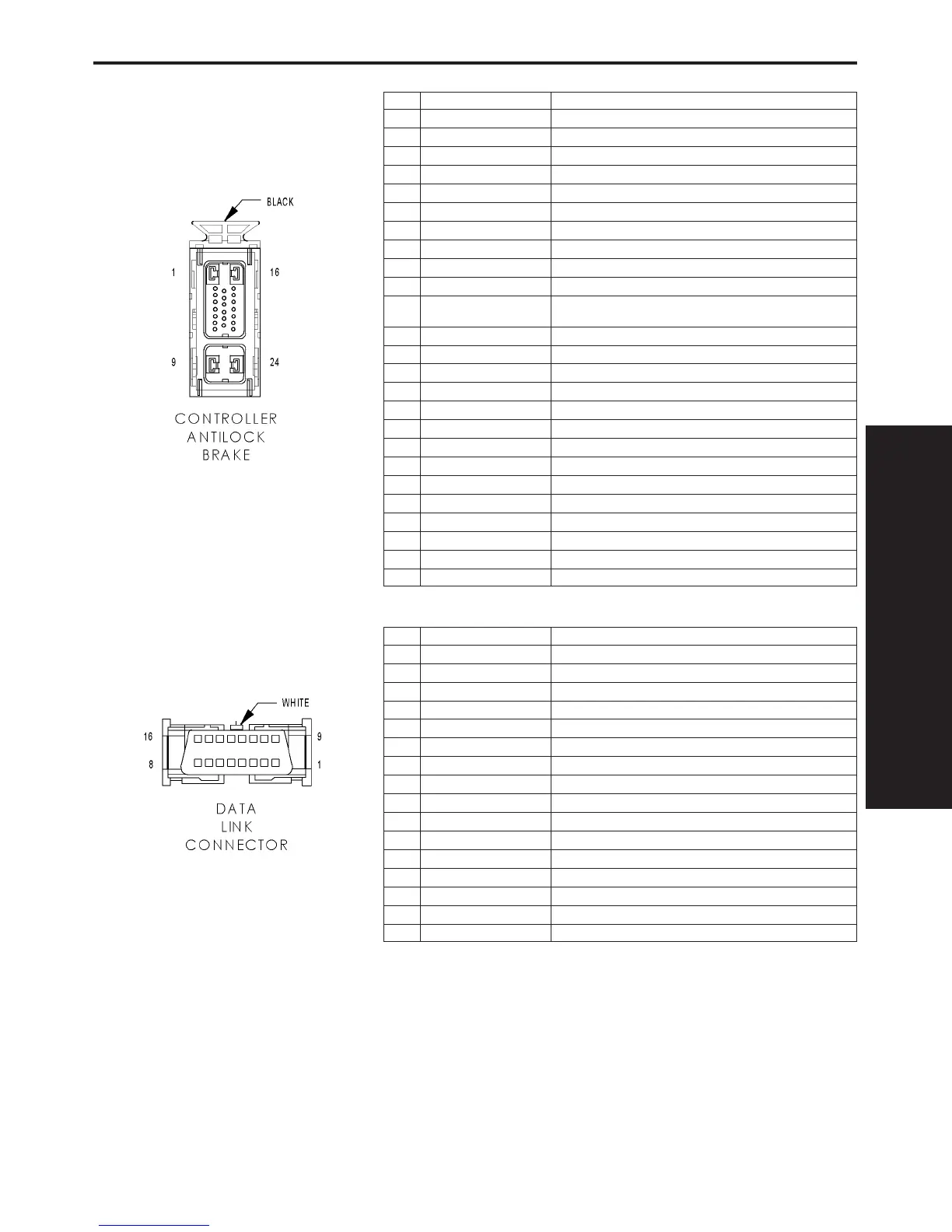

CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION
1 Z1 12BK GROUND
2 B1 18YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18YL RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
4- -
5 D25 18VT/YL PCI BUS
6 B6 18WT/DB RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18WT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
8- -
9 A20 12RD/DB FUSED B(+)
10 F12 18DB/WT (2.0L) FUSED IGNITION SWITCH OUTPUT (RUN-START)
10 F12 18DB/RD (2.4L
TURBO)
FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z1 12BK GROUND
17 - -
18 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
19 B3 18LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18LG LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
21 - -
22 B8 18RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18RD LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
24 A10 12RD/DG FUSED B(+)
DATA LINK CONNECTOR - WHITE 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20VT/YL PCI BUS (PCM)
3- -
4 Z12 20BK/TN GROUND
5 Z12 20BK/TN GROUND
6- -
7 D21 20PK SCI TRANSMIT (PCM)
8- -
9 D6 20PK/LB (2.0L) SCI RECEIVE (TCM)
10 - -
11 - -
12 D20 20LG SCI RECEIVE (PCM)
13 - -
14 - -
15 D15 20WT/DG (2.0L) SCI TRANSMIT (TCM)
16 A14 18RD/WT FUSED B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
249
CONNECTOR PINOUTS
