Dodge 2004 Neon SRT4 Diagnostic Manual

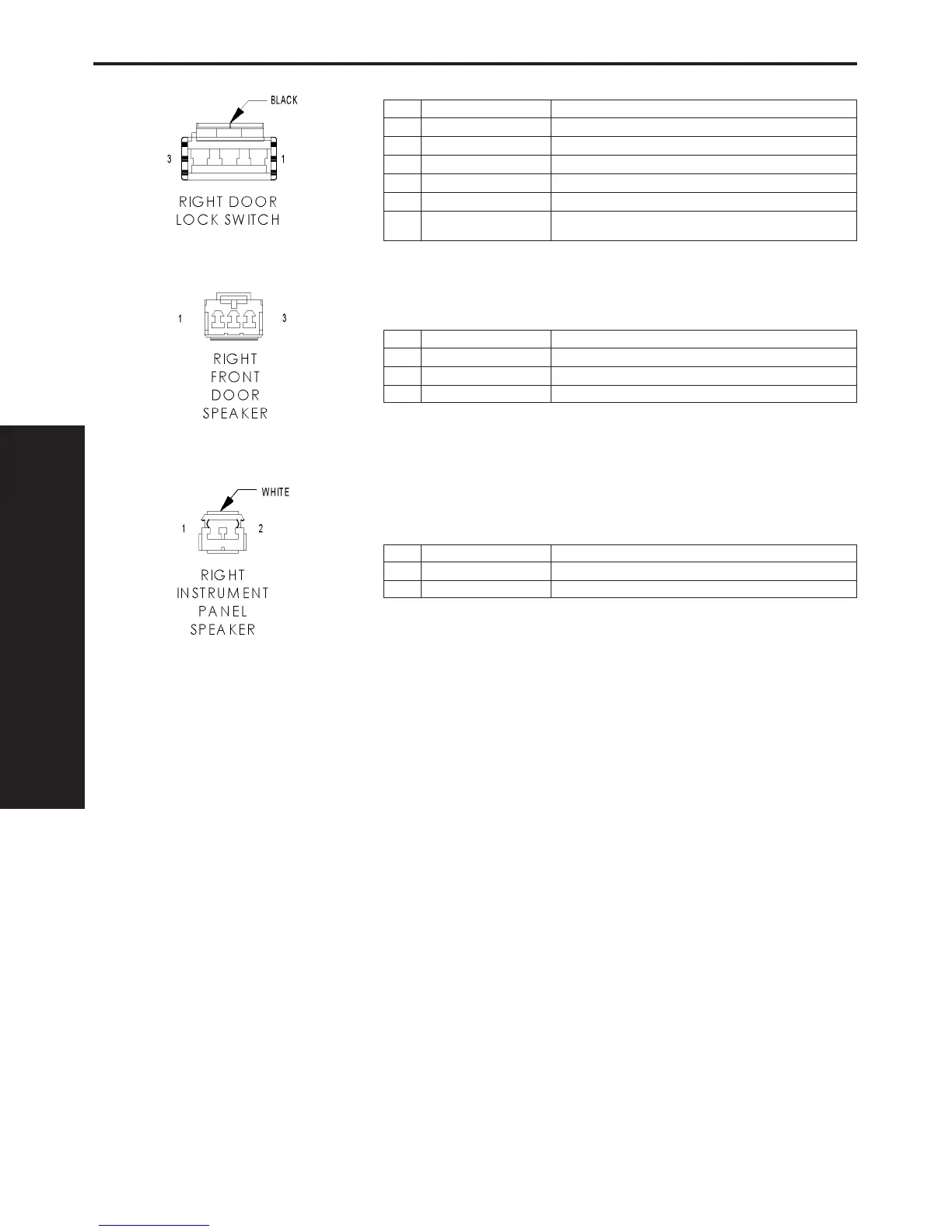

RIGHT DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 P96 20LG/BK RIGHT DOOR SWITCH MUX
2 P96 18LG (ALARM) RIGHT DOOR SWITCH MUX
3 Z14 20BK/YL GROUND
3 Z14 18BK (ALARM) GROUND
3 Z14 20BK/YL (EXCEPT
ALARM)
GROUND
RIGHT FRONT DOOR SPEAKER-3WAY
CAV CIRCUIT FUNCTION
1 X56 20DB/RD RIGHT FRONT SPEAKER (-)
2- -
3 X54 20VT RIGHT FRONT SPEAKER (+)
RIGHT INSTRUMENT PANEL SPEAKER - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 X54 20VT RIGHT FRONT SPEAKER (+)
2 X56 20DB/RD RIGHT FRONT SPEAKER (-)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
262
CONNECTOR PINOUTS
