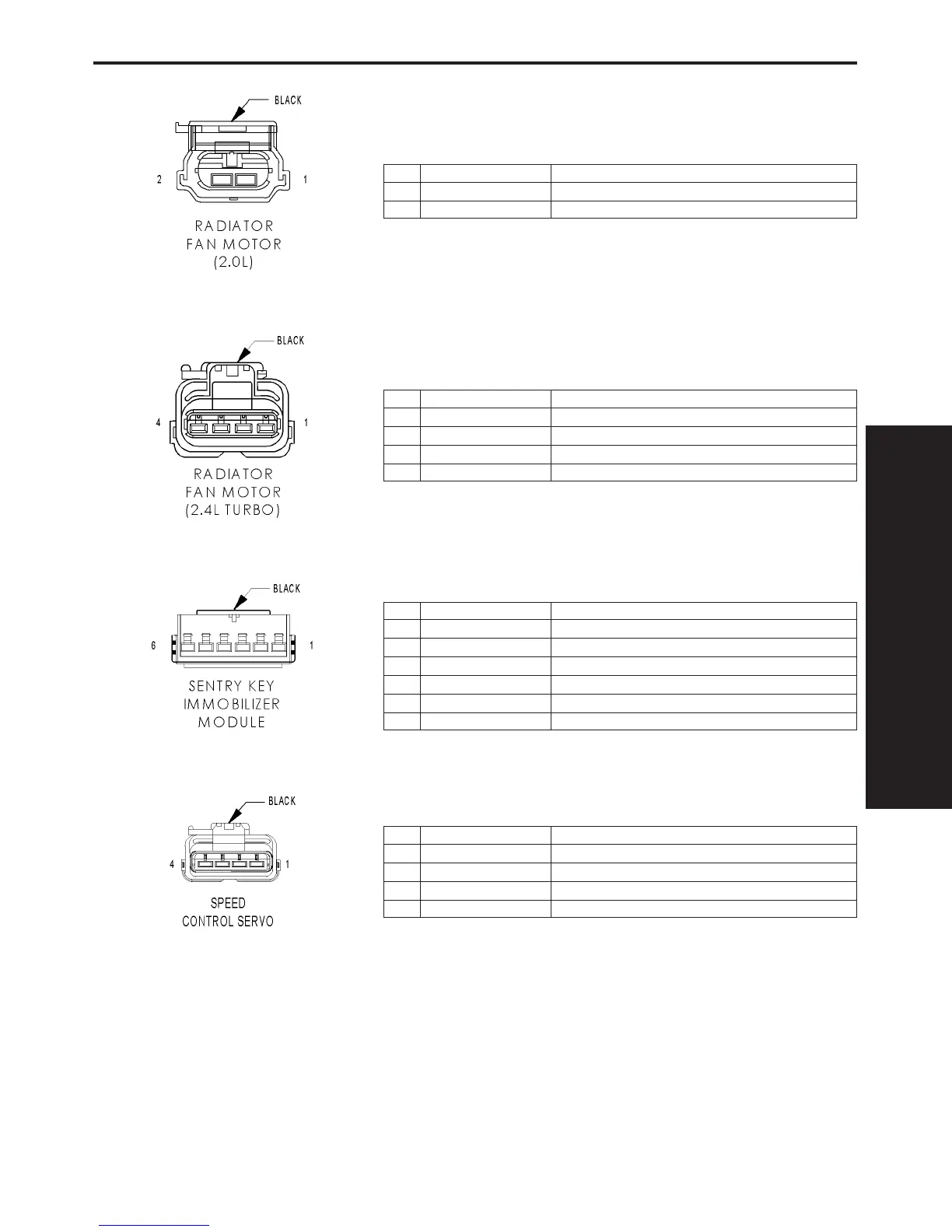

Dodge 2004 Neon SRT4 - Radiator Fan Motor (2.0 L) - Black 2 Way; Radiator Fan Motor (2.4 L Turbo) - Black 4 Way; Sentry Key Immobilizer Module - Black 6 Way; Speed Control Servo - Black 4 Way

RADIATOR FAN MOTOR (2.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C25 12YL RAD FAN HIGH RELAY OUTPUT
2 Z1 14BK GROUND
RADIATOR FAN MOTOR (2.4L TURBO) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z1 12BK GROUND
2 C23 12DG RAD FAN CONTROL/HIGH RELAY OUTPUT
3 C116 12LG/WT RAD FAN HIGH/LOW FEED
4 C25 12YL RAD FAN LOW RELAY OUTPUT
SENTRY KEY IMMOBILIZER MODULE - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 22VT/YL PCI BUS
3- -
4 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
5 Z2 20BK/LG GROUND
6 M1 20PK FUSED B(+)
SPEED CONTROL SERVO - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 V36 20TN/RD S/C VACUUM CONTROL
2 V35 20LG/RD S/C VENT CONTROL
3 V30 20DB/RD SPEED CONTROL BRAKE LAMP SWITCH OUTPUT
4 Z1 20BK GROUND
