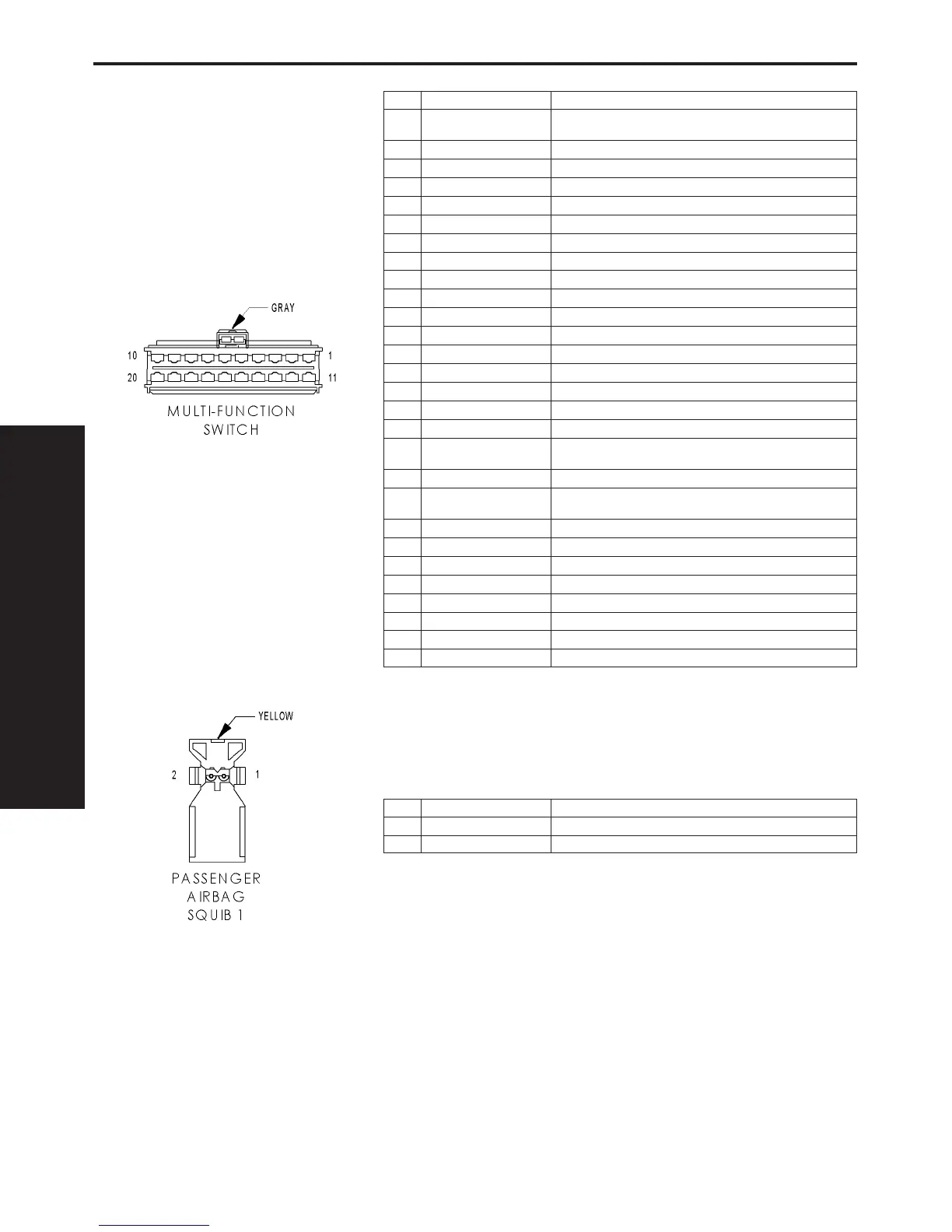

MULTI-FUNCTION SWITCH - GRAY 20 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN (EXCEPT
EXPORT)
BRAKE LAMP SWITCH OUTPUT
2 L61 18LG LEFT TURN SIGNAL
2 L61 18LG (EXPORT) LEFT TURN SIGNAL
3 L6 20RD/WT FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
4 L63 18DG/RD LEFT TURN SIGNAL
4 L63 18DG/RD (EXPORT) LEFT TURN SIGNAL
5 L62 18BR/RD RIGHT TURN SIGNAL
5 L62 18BR/RD (EXPORT) RIGHT TURN SIGNAL
6 L60 18TN RIGHT TURN SIGNAL
6 L60 18TN (EXPORT) RIGHT TURN SIGNAL
7 Z3 20BK/OR GROUND
8 E19 22RD PANEL LAMPS DIMMER SIGNAL
9 L7 18BK/YL HEADLAMP SWITCH OUTPUT
10 - -
11 A15 18WT FUSED B(+)
12 L38 16BR/WT (EXPORT) REAR FOG LAMP FEED
12 L38 16BR/WT (EXPORT) REAR FOG LAMP FEED
13 L4 14VT/WT (EXCEPT EX-
PORT)
DIMMER SWITCH LOW BEAM OUTPUT
13 F61 16WT/OR (EXPORT) FUSED B(+)
14 F39 14PK/LG (EXCEPT EX-
PORT)
FRONT FOG LAMP SWITCH OUTPUT
14 L39 16LB (EXPORT) FRONT FOG LAMP SWITCH OUTPUT
14 L39 16LB (EXPORT) FRONT FOG LAMP SWITCH OUTPUT
15 - -
16 L4 12VT/WT DIMMER SWITCH LOW BEAM OUTPUT
17 L33 14LG/BR DIMMER SWITCH HIGH BEAM OUTPUT
18 F3 12LB/OR FUSED B(+)
19 F3 12LB/OR FUSED B(+)
20 F33 18PK/RD FUSED B(+)
PASSENGER AIRBAG SQUIB 1 - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R42 20BK/YL PASSENGER SQUIB 1 LINE 1
2 R44 20DG/YL PASSENGER SQUIB 1 LINE 2
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
256
CONNECTOR PINOUTS
