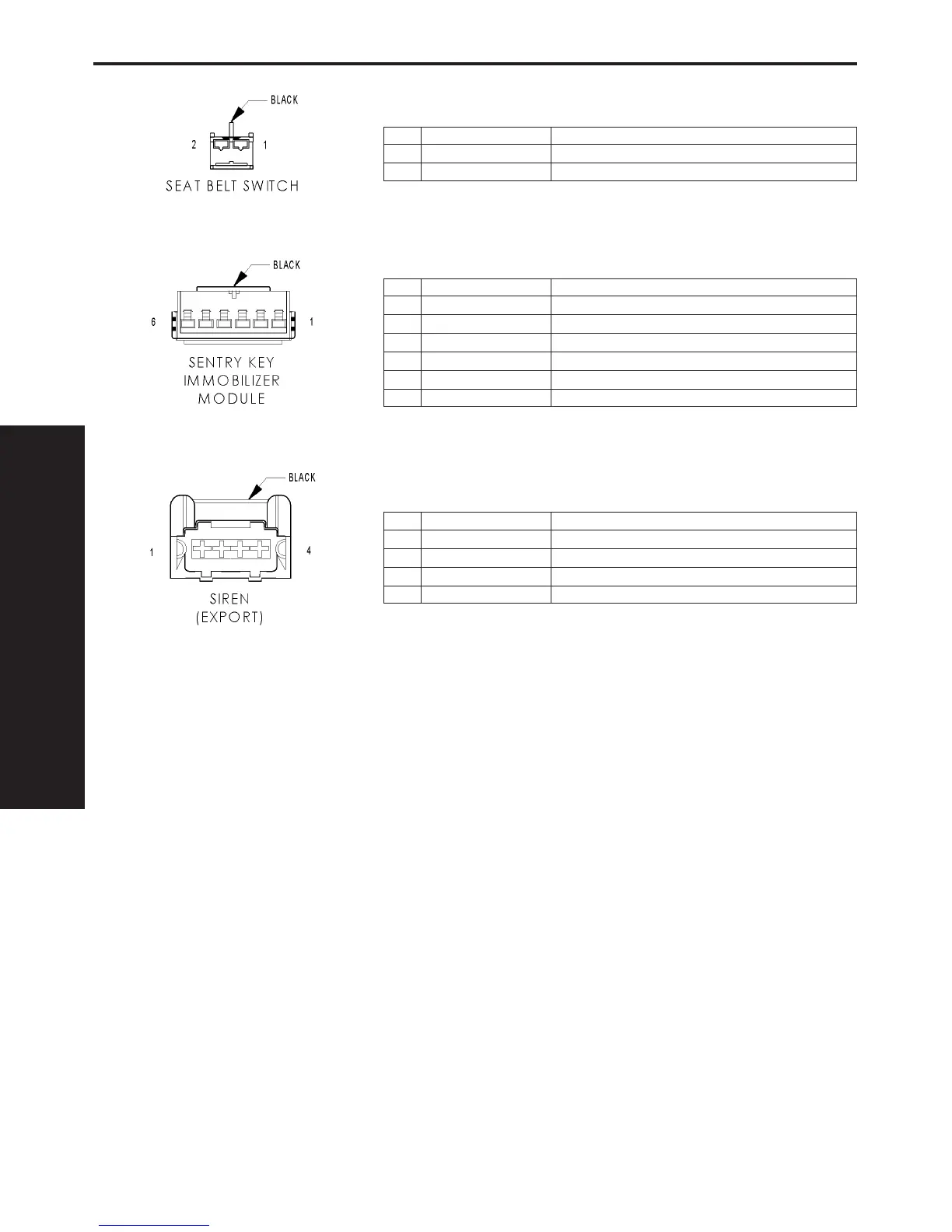

Dodge 2004 Neon SRT4 Diagnostic Manual

SEAT BELT SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G10 20LG/RD SEAT BELT SWITCH SENSE
2 Z1 20BK GROUND
SENTRY KEY IMMOBILIZER MODULE - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 22VT/YL PCI BUS
3- -
4 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
5 Z2 20BK/LG GROUND
6 M1 20PK FUSED B(+)
SIREN (EXPORT) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 X5 20WT/RD SIREN CONTROL
2 X5 20WT/RD SIREN CONTROL
3 Z1 18BK GROUND
4 M1 18PK FUSED B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
264
CONNECTOR PINOUTS
