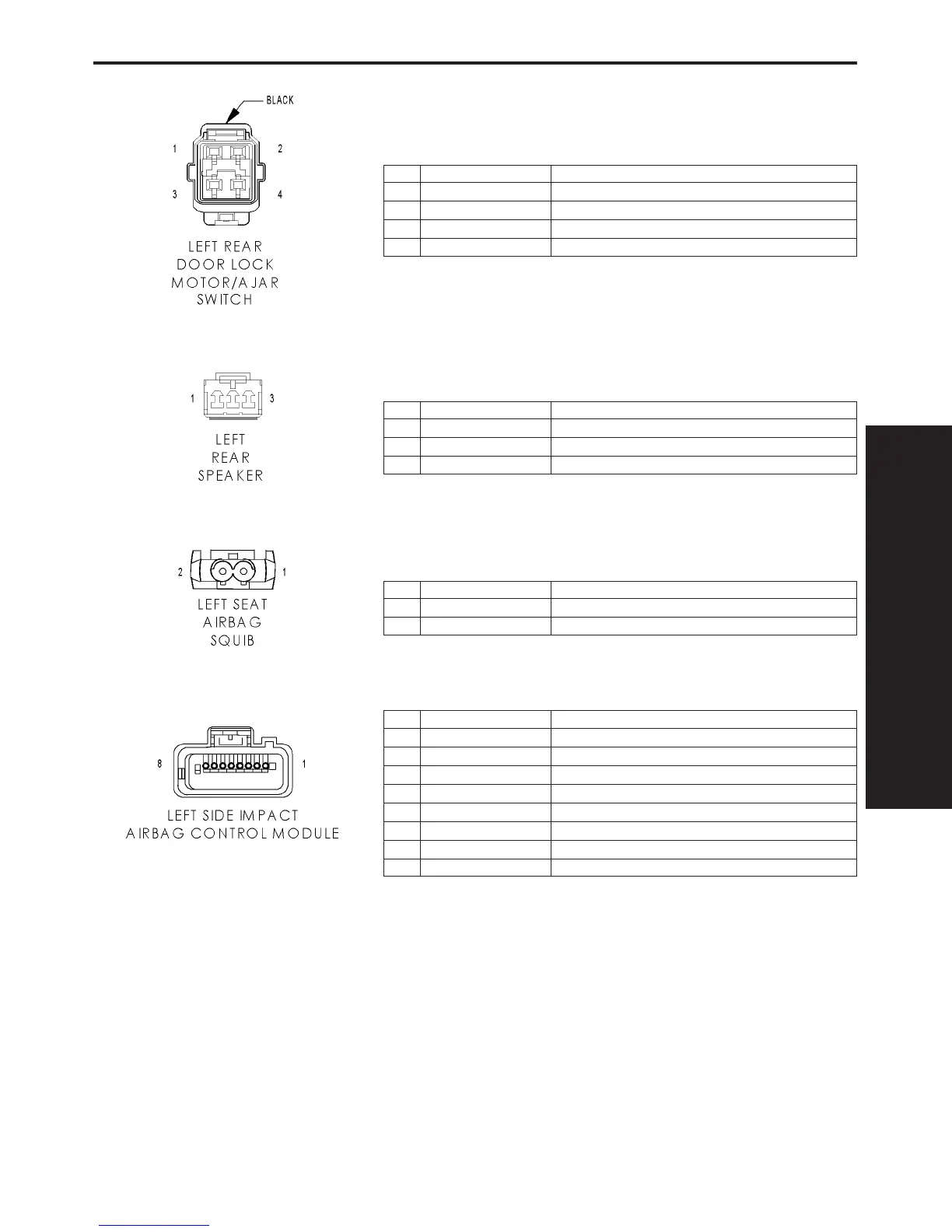

LEFT REAR DOOR LOCK MOTOR/AJAR SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G77 20TN/OR PASSENGER DOOR AJAR/RKE SENSE
2 Z1 20BK GROUND
3 P36 18PK/VT DOOR UNLOCK RELAY OUTPUT
4 P33 18OR/BK DOOR LOCK RELAY OUTPUT
LEFT REAR SPEAKER-3WAY
CAV CIRCUIT FUNCTION
1 X51 20BR/YL LEFT REAR SPEAKER (+)
2- -
3 X57 20BR/LB LEFT REAR SPEAKER (-)
LEFT SEAT AIRBAG SQUIB-2WAY
CAV CIRCUIT FUNCTION
1 R31 18OR LEFT SEAT SQUIB LINE 2
2 R33 18WT LEFT SEAT SQUIB LINE 1
LEFT SIDE IMPACT AIRBAG CONTROL MODULE-8WAY
CAV CIRCUIT FUNCTION
1 F15 20DG/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
2- -
3 R33 20OR/YL LEFT SEAT SQUIB LINE 1
4 R31 20YL/OR LEFT SEAT SQUIB LINE 2
5 Z6 20BK/PK GROUND
6- -
7- -
8 D25 20VT/YL PCI BUS
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
255
CONNECTOR PINOUTS
