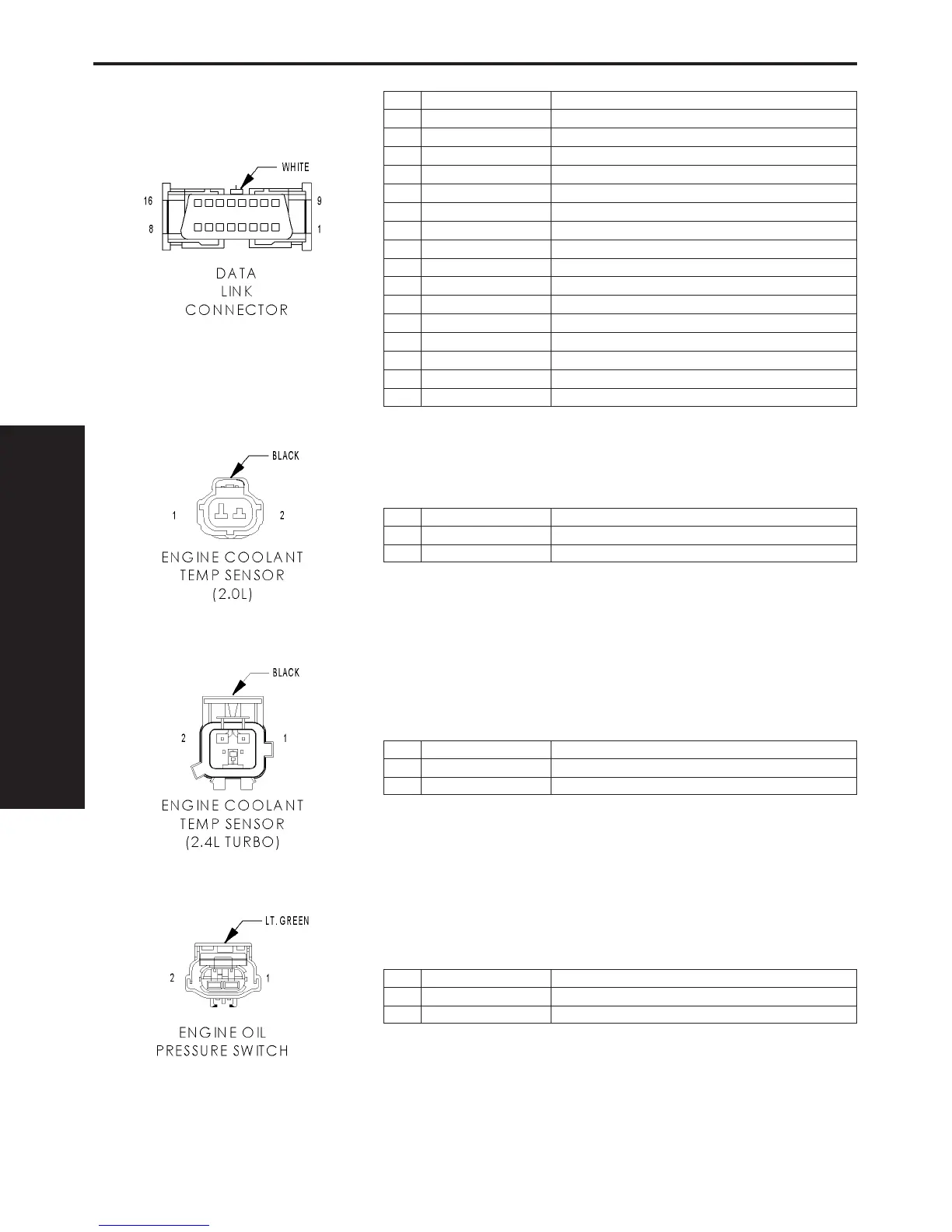

DATA LINK CONNECTOR - WHITE 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20VT/YL PCI BUS (PCM)
3- -
4 Z12 20BK/TN GROUND
5 Z12 20BK/TN GROUND
6- -
7 D21 20PK SCI TRANSMIT (PCM)
8- -
9 D6 20PK/LB (2.0L) SCI RECEIVE (TCM)
10 - -
11 - -
12 D20 20LG SCI RECEIVE (PCM)
13 - -
14 - -
15 D15 20WT/DG (2.0L) SCI TRANSMIT (TCM)
16 A14 18RD/WT FUSED B(+)
ENGINE COOLANT TEMP SENSOR (2.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K2 20VT/LG ECT SIGNAL
ENGINE COOLANT TEMP SENSOR (2.4L TURBO) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K2 20TN/BK ECT SIGNAL
ENGINE OIL PRESSURE SWITCH - LT. GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 G6 20GY OIL PRESSURE SIGNAL
2- -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
354
CONNECTOR PINOUTS
