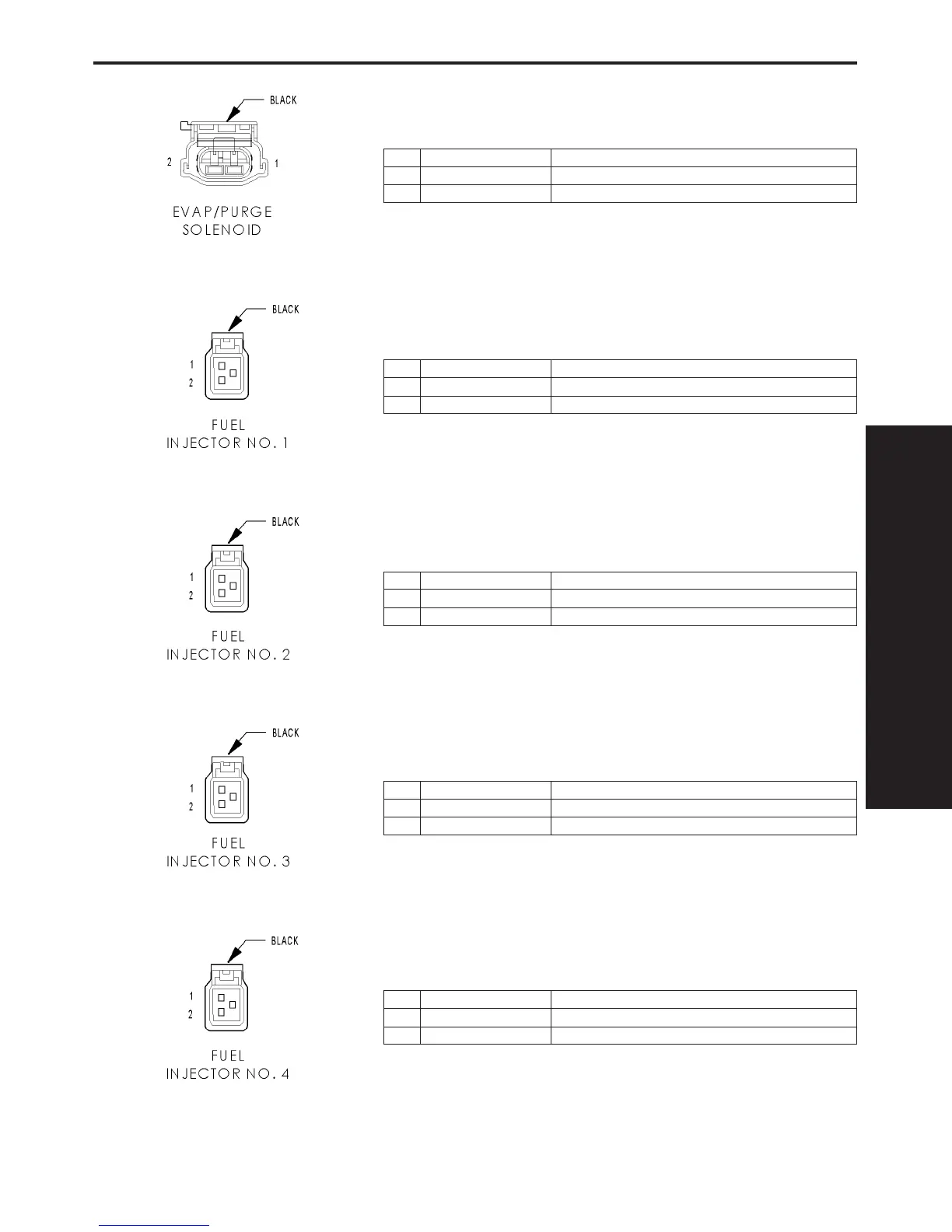

EVAP/PURGE SOLENOID - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K108 20WT/TN EVAP/PURGE RETURN
2 K52 20PK/BK EVAP/PURGE CONTROL
FUEL INJECTOR NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K11 18WT/DB INJECTOR CONTROL NO. 1
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL INJECTOR NO. 2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K12 18TN INJECTOR CONTROL NO. 2
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL INJECTOR NO. 3 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K13 18YL/WT INJECTOR CONTROL NO. 3
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL INJECTOR NO. 4 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K14 18LB/BR INJECTOR CONTROL NO. 4
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
355
CONNECTOR PINOUTS
