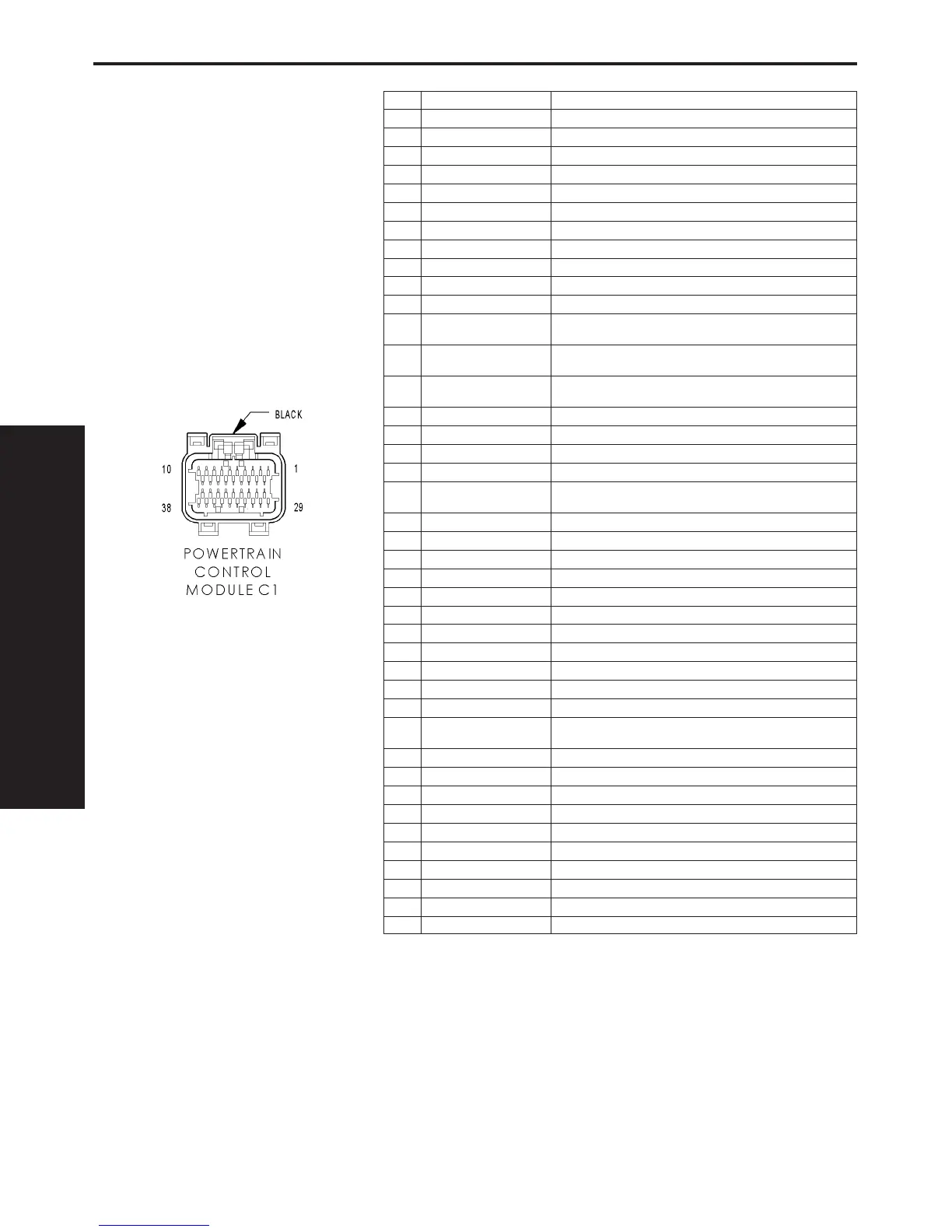

POWERTRAIN CONTROL MODULE C1 - BLACK 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9 Z11 18BK/WT GROUND
10 - -
11 F12 18DB/WT (2.0L) FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 F12 18DB/RD (2.4L
TURBO)
FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 F11 20RD/WT (2.0L AUTO-
STICK)
IGNITION SWITCH OUTPUT (OFF-RUN-START)
12 F11 20RD/WT (2.0L EX-
CEPT AUTOSTICK)
FUSED IGNITION SWITCH OUTPUT (RUN-START)
13 G7 20WT/OR VEHICLE SPEED SIGNAL
14 G9 20GY/BK BRAKE FLUID LEVEL SWITCH SENSE
15 K55 18LB (2.4L TURBO) TIP SOL CONTROL
16 - -
17 K150 18DB/YL (2.4L
TURBO)
SURGE SOL CONTROL
18 Z12 18BK/TN GROUND
19 - -
20 G6 20GY OIL PRESSURE SIGNAL
21 - -
22 K145 20BR/OR AAT SIGNAL
23 K153 18LB (2.4L TURBO) TIP SIGNAL
24 - -
25 D20 20LG SCI RECEIVE (PCM)
26 D6 20PK/LB (2.0L) SCI RECEIVE (TCM)
27 K6 20VT/WT (2.0L) 5 VOLT SUPPLY
27 K6 18VT/WT (2.4L TURBO) 5 VOLT SUPPLY
28 K137 18DB/GY (2.4L
TURBO)
WASTEGATE SOL CONTROL
29 A14 18RD/WT FUSED B(+)
30 A41 16YL FUSED IGNITION SWITCH OUTPUT (START)
31 - -
32 - -
33 - -
34 - -
35 - -
36 D21 20PK SCI TRANSMIT (PCM)
37 D15 20WT/DG (2.0L) SCI TRANSMIT (TCM)
38 D25 20VT/YL PCI BUS (PCM)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
368
CONNECTOR PINOUTS
