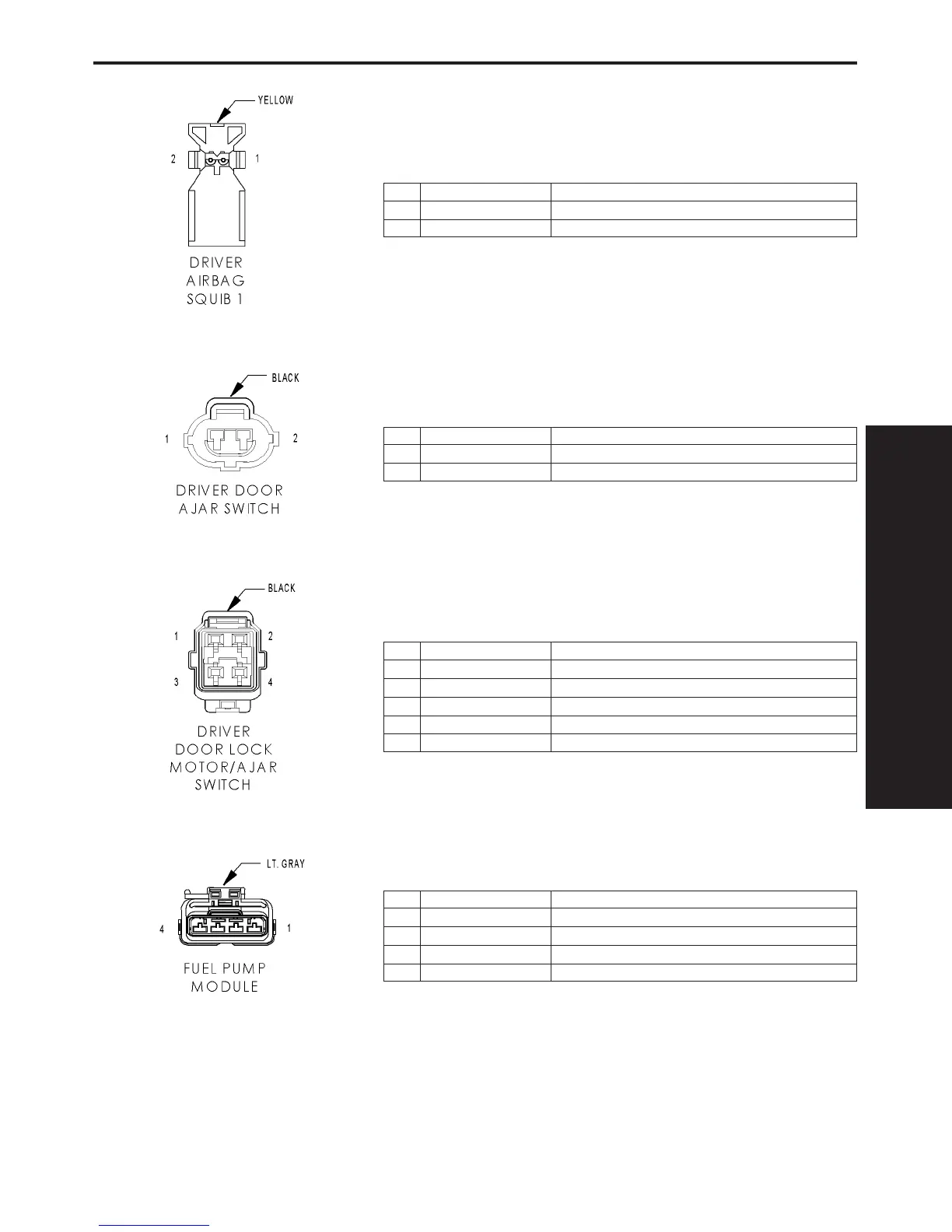

DRIVER AIRBAG SQUIB 1 - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R43 18BK/LB DRIVER SQUIB 1 LINE 1
2 R45 18DG/LB DRIVER SQUIB 1 LINE 2
DRIVER DOOR AJAR SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G75 20TN LEFT FRONT DOOR AJAR SWITCH SENSE
2 Z14 20BK/YL GROUND
DRIVER DOOR LOCK MOTOR/AJAR SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G75 20TN (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
1 G74 20TN/RD (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z14 20BK/YL GROUND
3 P34 18PK/BK DRIVER DOOR UNLOCK RELAY OUTPUT
4 P33 18OR/BK DOOR LOCK RELAY OUTPUT
FUEL PUMP MODULE - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 Z2 20BK/LG GROUND
3 G4 20DB FUEL LEVEL SENSOR SIGNAL
4 A141 18DG/WT FUEL PUMP RELAY OUTPUT
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
251
CONNECTOR PINOUTS
