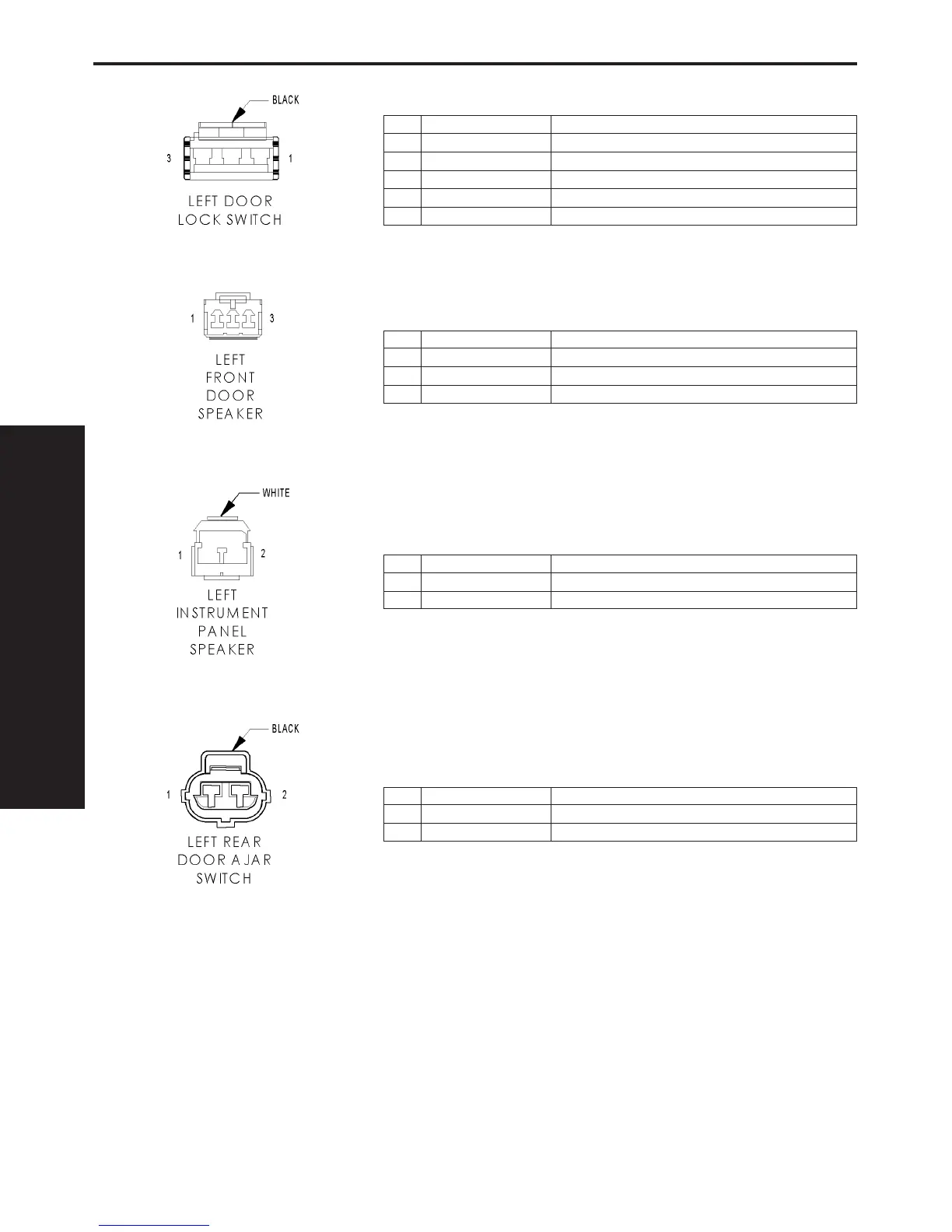

Dodge 2004 Neon SRT4 Diagnostic Manual

LEFT DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 P97 20LG LEFT DOOR SWITCH MUX
2 P97 18LG (PREMIUM) LEFT DOOR SWITCH MUX
3 Z14 20BK/YL GROUND
3 Z14 18BK (PREMIUM) GROUND
LEFT FRONT DOOR SPEAKER-3WAY
CAV CIRCUIT FUNCTION
1 X55 20BR/RD LEFT FRONT SPEAKER (-)
2- -
3 X53 20DG LEFT FRONT SPEAKER (+)
LEFT INSTRUMENT PANEL SPEAKER - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 X53 20DG LEFT FRONT SPEAKER (+)
2 X55 20BR/RD LEFT FRONT SPEAKER (-)
LEFT REAR DOOR AJAR SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G76 20TN/YL PASSENGER DOOR AJAR/RKE SENSE
2 Z1 20BK GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
254
CONNECTOR PINOUTS
