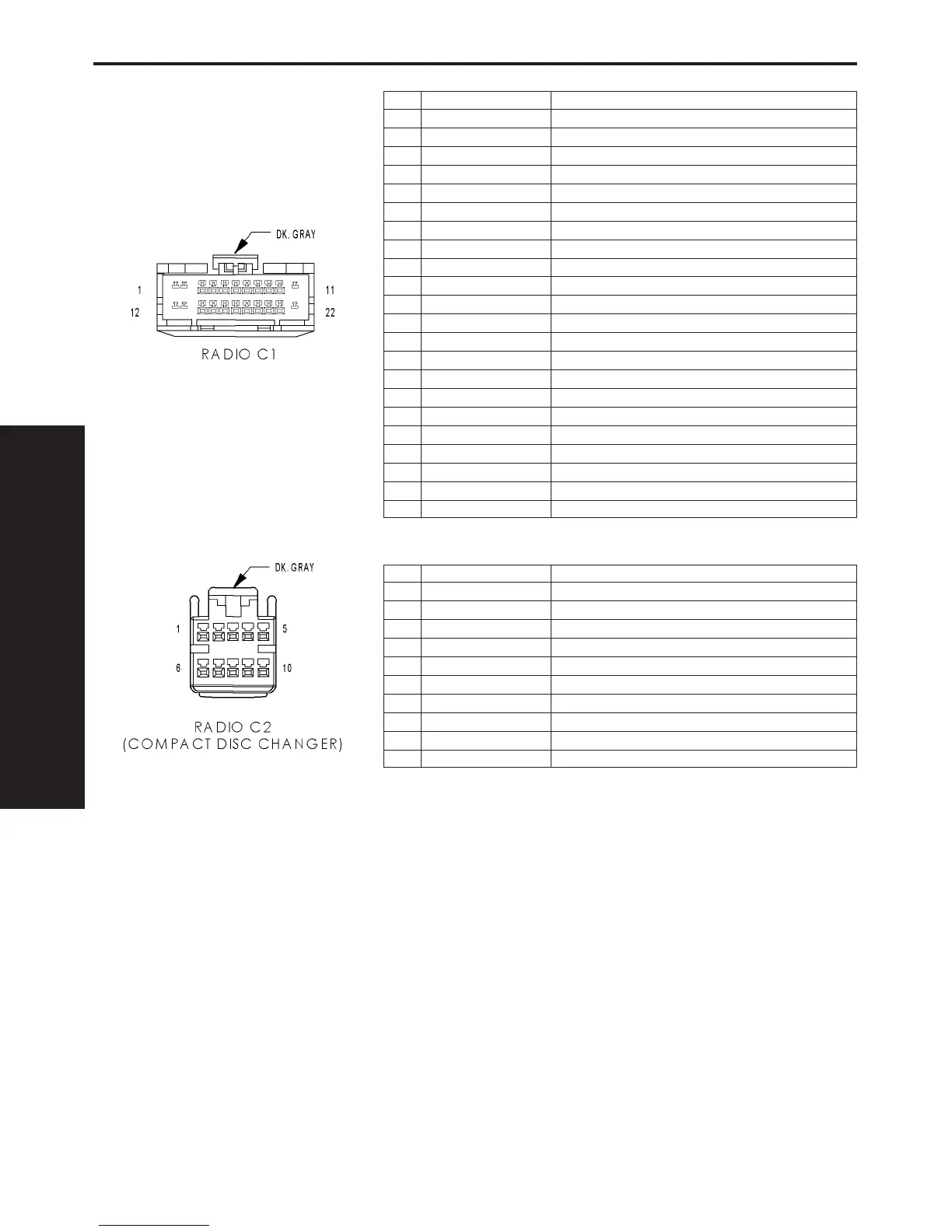

RADIO C1 - DK. GRAY 22 WAY
CAV CIRCUIT FUNCTION
1 M11 16PK/LB FUSED B(+)
2 X12 18RD/WT FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
3 E2 20OR PANEL LAMPS DRIVER
4- -
5- -
6- -
7 X54 20VT RIGHT FRONT SPEAKER (+)
8 X56 20DB/RD RIGHT FRONT SPEAKER (-)
9 X55 20BR/RD LEFT FRONT SPEAKER (-)
10 X53 20DG LEFT FRONT SPEAKER (+)
11 Z9 16BK GROUND
12 - -
13 - -
14 D25 20VT/YL PCI BUS
15 - -
16 - -
17 - -
18 X51 20BR/YL LEFT REAR SPEAKER (+)
19 X57 20BR/LB LEFT REAR SPEAKER (-)
20 X58 20DB/OR RIGHT REAR SPEAKER (-)
21 X52 20DB/WT RIGHT REAR SPEAKER (+)
22 - -
RADIO C2 (COMPACT DISC CHANGER) - DK. GRAY 10 WAY
CAV CIRCUIT FUNCTION
1 24GY/WT AUDIO OUT RIGHT
2 24BK/OR GROUND
3 22BK SHIELD GROUND
4 24VT/YL PCI BUS
5 24RD FUSED IGNITION SWITCH OUTPUT
6 24DG/WT AUDIO OUT LEFT
7 22BK/YL GROUND
8- -
9 24OR/YL PANEL LAMPS DIMMER SIGNAL
10 22GY/YL B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
260
CONNECTOR PINOUTS
