Dodge 2004 Neon SRT4 Diagnostic Manual

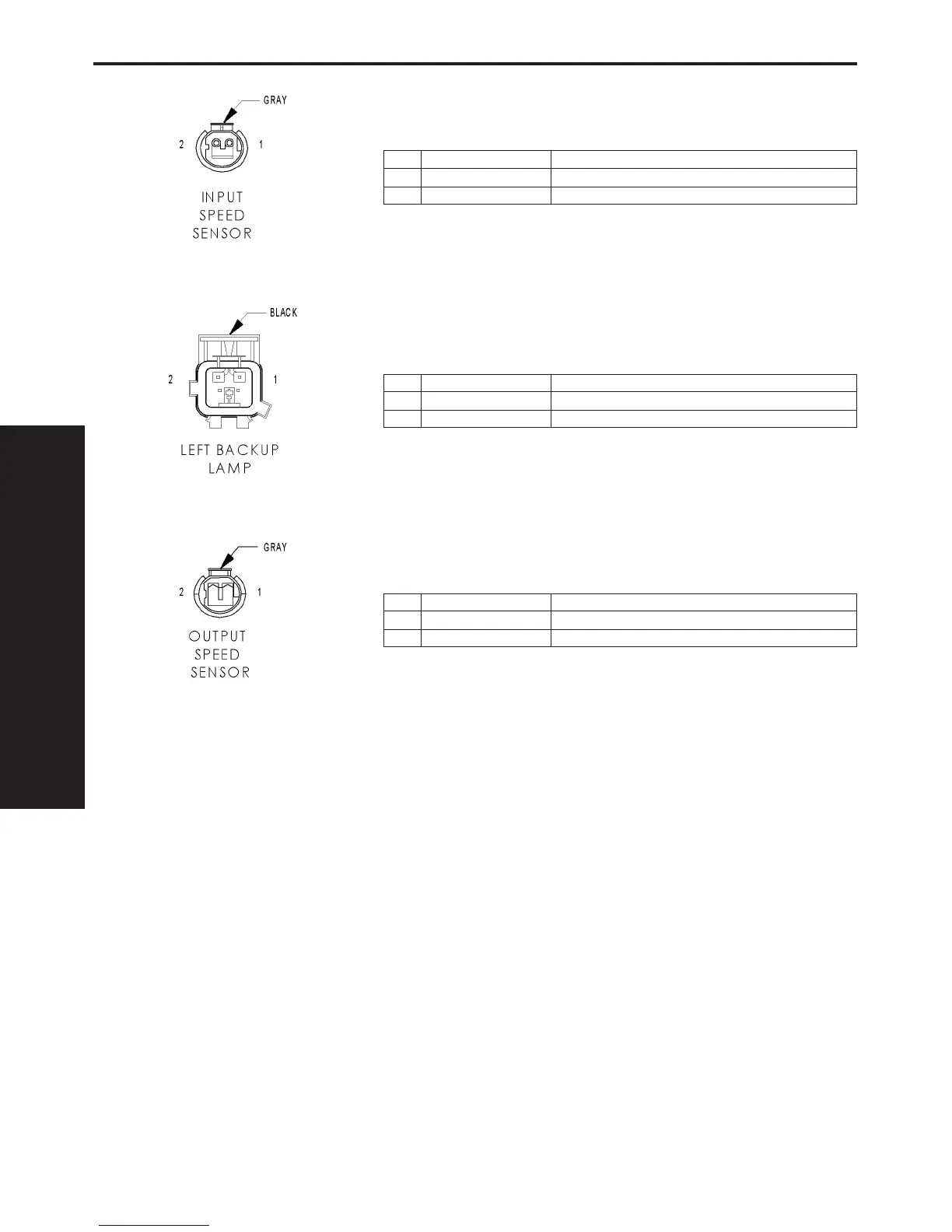

INPUT SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 T13 20DB/BK SPEED SENSOR GROUND
2 T52 20RD/BK INPUT SPEED SENSOR SIGNAL
LEFT BACKUP LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 L1 20VT/BK BACKUP LAMP FEED
OUTPUT SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 T13 20DB/BK SPEED SENSOR GROUND
2 T14 20LG/WT OUTPUT SPEED SENSOR SIGNAL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
188
CONNECTOR PINOUTS
