Dodge 2004 Neon SRT4 Diagnostic Manual

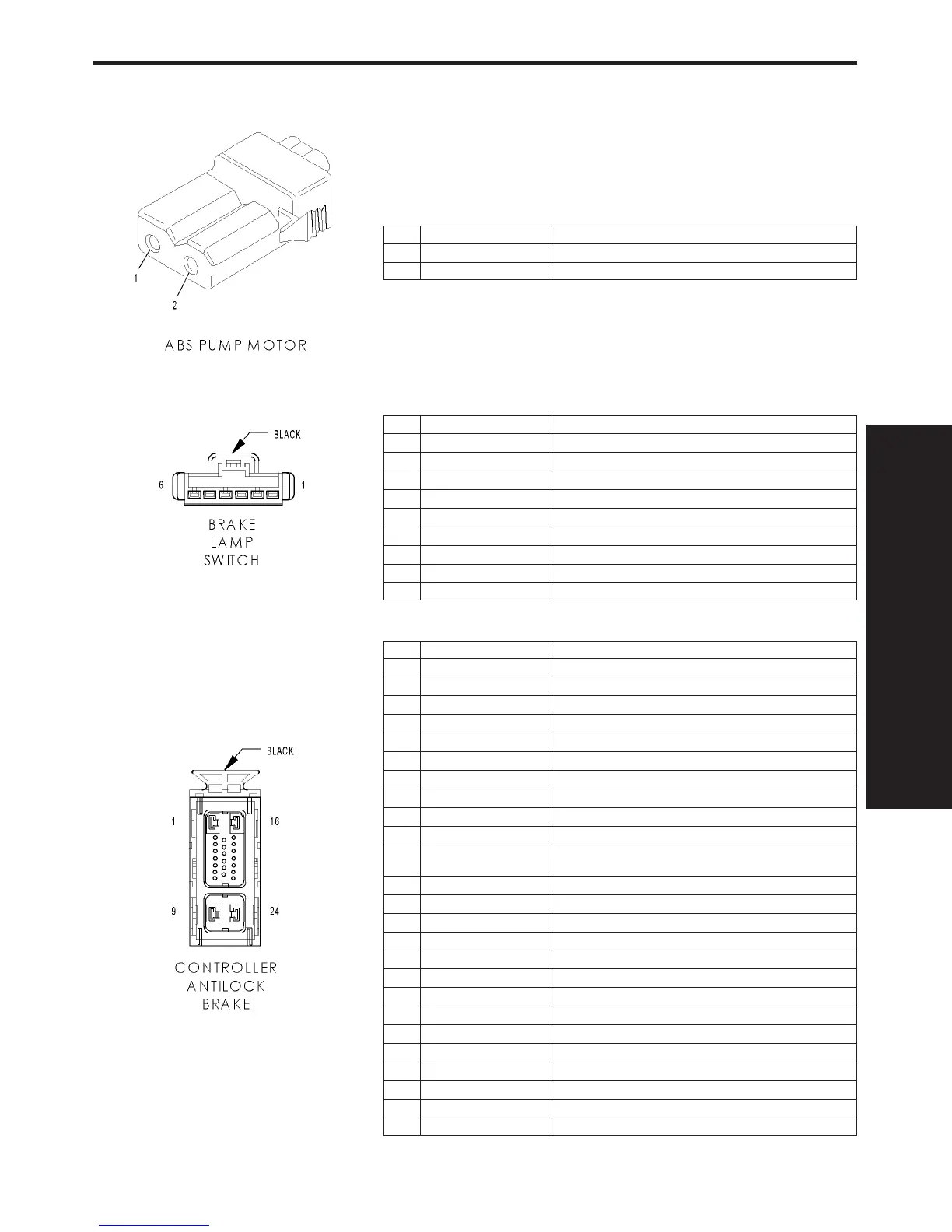

9.0 CONNECTOR PINOUTS
ABS PUMP MOTOR-2WAY
CAV CIRCUIT FUNCTION
1 TN GROUND
2 RD PUMP MOTOR RELAY OUTPUT
BRAKE LAMP SWITCH - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 F32 18PK/DB FUSED B(+)
2 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
3 V30 20DB/RD (2.0L) SPEED CONTROL BRAKE LAMP SWITCH OUTPUT
4 V32 20YL/RD (2.0L) S/C SUPPLY
5 Z1 20BK (2.0L) GROUND
5 Z1 18BK (2.4L TURBO) GROUND
6 K29 20WT/PK BRAKE SWITCH SIGNAL
6 K29 20WT/PK (2.0L) BRAKE SWITCH SIGNAL
CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION
1 Z1 12BK GROUND
2 B1 18YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18YL RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
4- -
5 D25 18VT/YL PCI BUS
6 B6 18WT/DB RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18WT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
8- -
9 A20 12RD/DB FUSED B(+)
10 F12 18DB/WT (2.0L) FUSED IGNITION SWITCH OUTPUT (RUN-START)
10 F12 18DB/RD (2.4L
TURBO)
FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z1 12BK GROUND
17 - -
18 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
19 B3 18LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18LG LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
21 - -
22 B8 18RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18RD LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
24 A10 12RD/DG FUSED B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
43
CONNECTOR PINOUTS
