Dodge 2004 Neon SRT4 Diagnostic Manual

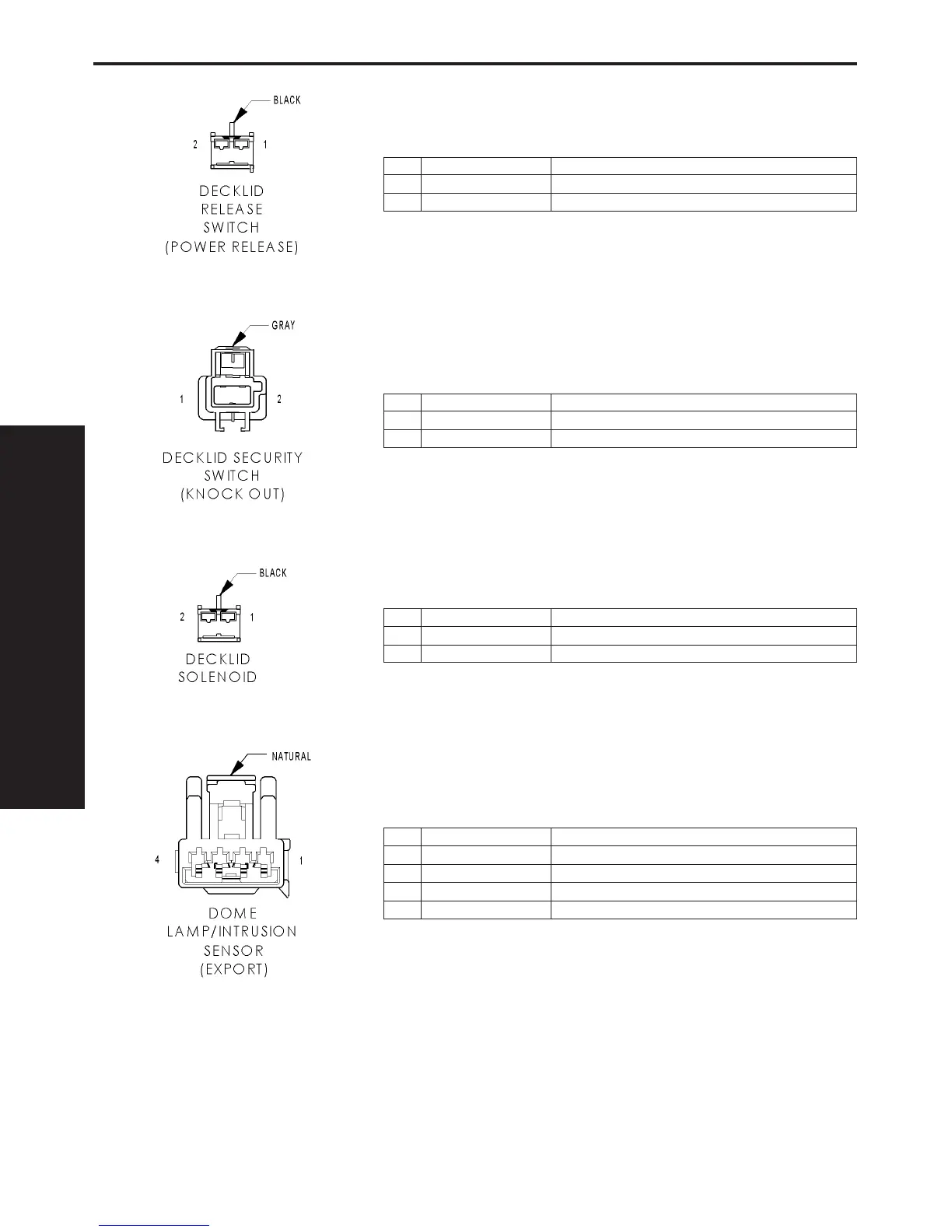

DECKLID RELEASE SWITCH (POWER RELEASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q33 20BR/LB DECKLID RELEASE RELAY CONTROL
2 Z1 20BK GROUND
DECKLID SECURITY SWITCH (KNOCK OUT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 G71 20VT/YL DECKLID SECURITY SWITCH SENSE
DECKLID SOLENOID - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q2 14LG/BK DECKLID RELEASE RELAY OUTPUT
2 Z1 14BK GROUND
DOME LAMP/INTRUSION SENSOR (EXPORT) - NATURAL 4 WAY
CAV CIRCUIT FUNCTION
1 M2 20YL COURTESY LAMP CONTROL
2 M1 18PK FUSED B(+)
3 Z1 18BK GROUND
4 G120 18WT/DB INTRUSION SENSOR SIGNAL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
250
CONNECTOR PINOUTS
