Dodge 2004 Neon SRT4 Diagnostic Manual

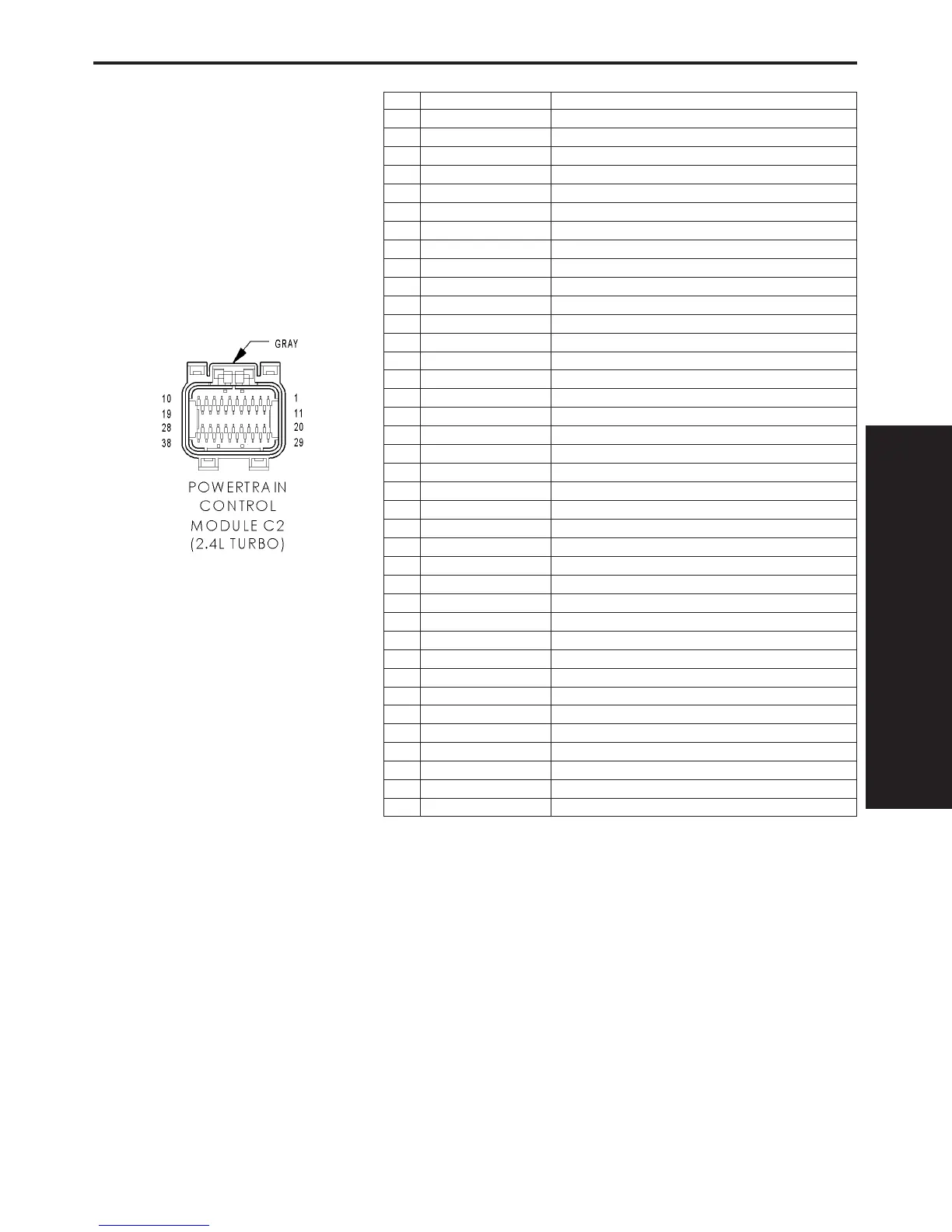

POWERTRAIN CONTROL MODULE C2 (2.4L TURBO) - GRAY 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9 K17 16DB/TN COIL CONTROL NO. 2
10 K19 16BK/GY COIL CONTROL NO. 1
11 K14 18LB/BR INJECTOR CONTROL NO. 4
12 K13 18YL/WT INJECTOR CONTROL NO. 3
13 K12 18TN INJECTOR CONTROL NO. 2
14 K11 18WT/DB INJECTOR CONTROL NO. 1
15 - -
16 - -
17 K199 18BR/VT O2 1/2 HEATER CONTROL
18 K99 18BR/OR O2 1/1 HEATER CONTROL
19 K20 18DG GEN FIELD CONTROL
20 K2 20TN/BK ECT SIGNAL
21 K22 20OR/DB TP SIGNAL
22 - -
23 K1 20DG/RD MAP SIGNAL
24 K45 20BK/VT KS RETURN
25 K42 20DB/LG KS SIGNAL
26 - -
27 K4 18BK/LB SENSOR GROUND
28 K961 18BR/VT IAC RETURN
29 K7 18OR 5 VOLT SUPPLY
30 K21 20BK/RD IAT SIGNAL
31 K41 20BK/DG O2 1/1 SIGNAL
32 K904 18DB/DG O2 RETURN
33 K141 20TN/WT O2 1/2 SIGNAL
34 K44 20TN/YL CMP SIGNAL
35 K24 20GY/BK CKP SIGNAL
36 - -
37 - -
38 K610 18VT/GY IAC MOTOR CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
193
CONNECTOR PINOUTS
