Setup
Operating Instructions 867 - 04.0 - 03/2018 105
7.7.1 Assembling the control
The DAC controls and the Efka control are installed according to
the same principle.

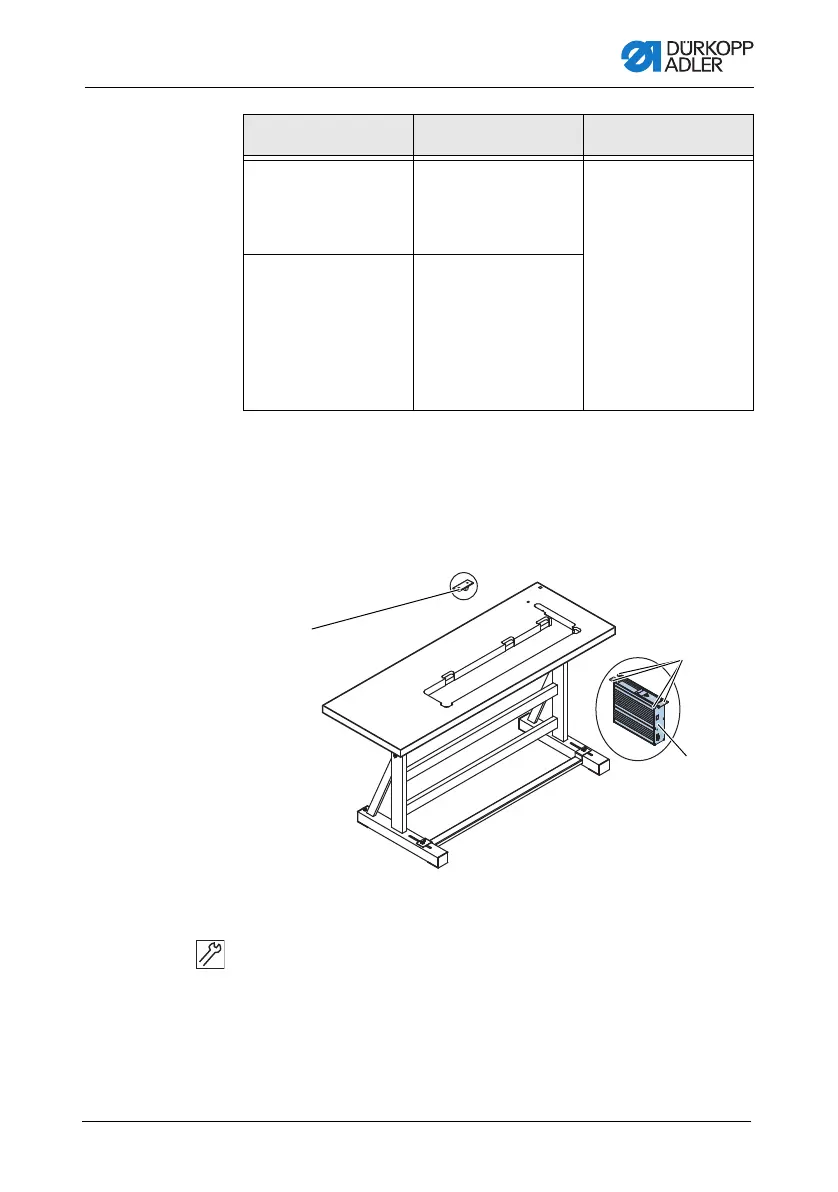

Fig. 57: Assembling the control
To assemble the control:
1. Screw the control (2) onto the 4 screw holders (3) under the
tabletop.
2. Clamp the power cable of the control (2) into the strain relief
mechanism (1).
3. Screw the strain relief mechanism (1) under the tabletop.
Short arm 290322
290342
490322
290445
Efka DC 1550/
DA 321G
Long arm 190122-70
190322-70
190342-70
290122-70
290322-70
290342-70
290342-100
(1) - Strain relief mechanism
(2) - Control
(3) - Screw holder
Machine type Subclass: 867- Control
③
②
①
