7.11 Assembling the oil extraction line

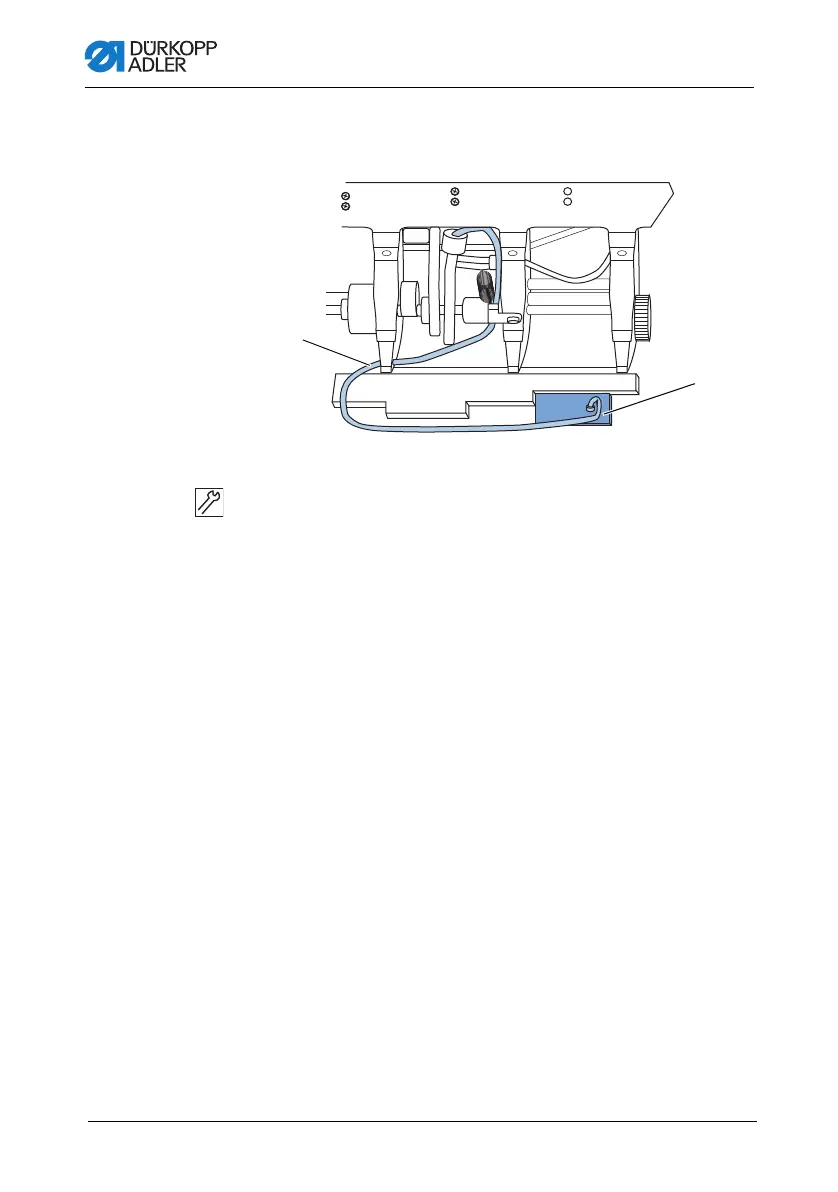

Fig. 65: Assembling the oil extraction line
To assemble the oil extraction line:
1. Tilt the machine head.
2. Tighten the filter (2) inside the oil pan with the plastic adapter
to the right.
3. Insert the tube of the oil extraction line (1) into the plastic
adapter.
(1) - Tube (2) - Filter
