4.14 Stitch length
4.14.1 Setting the stitch length
Depending on the equipment, the machine has 1 or 2 adjusting
wheels for stitch length.
The stitch length can be adjusted continuously.

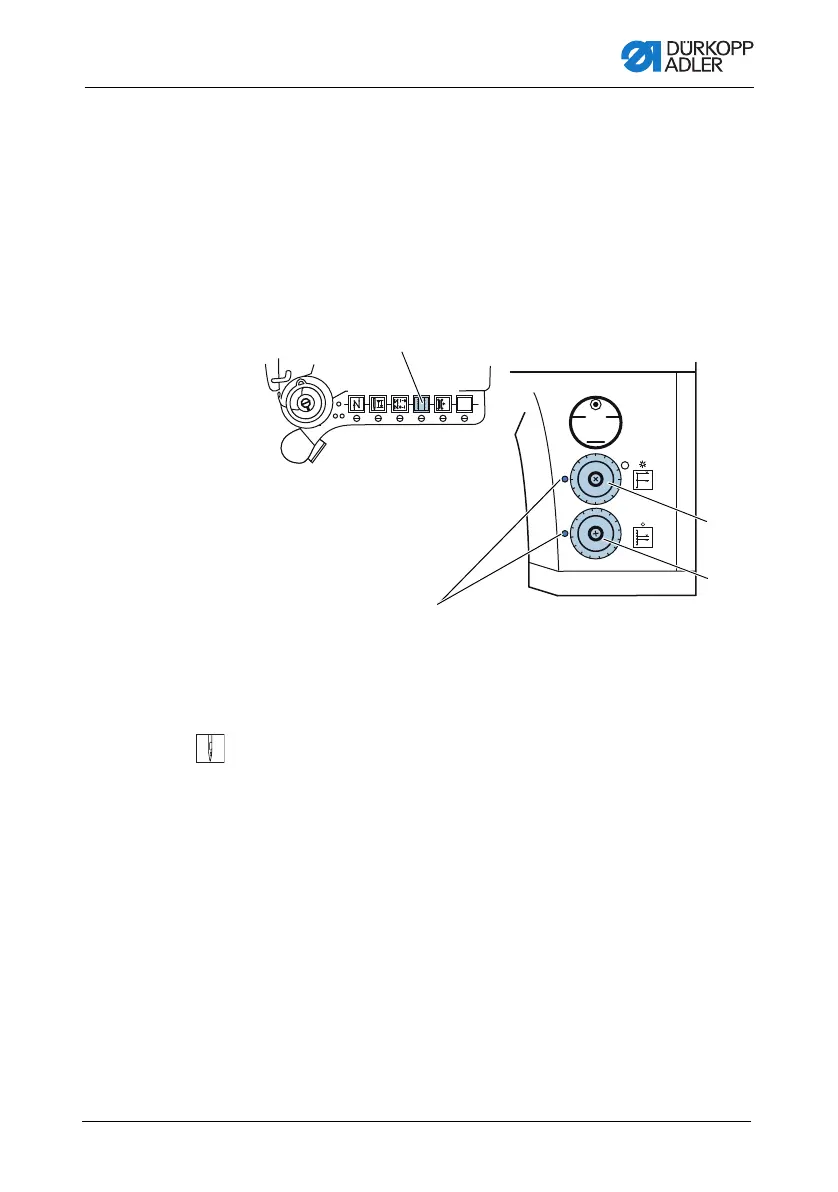

Fig. 32: Setting the stitch length
To set the stitch length:
Setting the stitch length on the adjusting wheel (3)
1. Turn the adjusting wheel (3) counterclockwise until you reach
the desired stitch length.
The marking (2) on the left of the adjusting wheel indicates
the stitch length selected.
Setting the stitch length on the adjusting wheel (4)
1. Turn the adjusting wheel (4) clockwise until you reach the
desired stitch length.
The marking (2) on the left of the adjusting wheel indicates
the stitch length selected.
(1) - Button
(2) - Adjusting marks
(3) - Adjusting wheel
(4) - Adjusting wheel
