Setup
Operating Instructions 867 - 04.0 - 03/2018 107
8. Tighten the screw (2).
7.8 Inserting the machine head

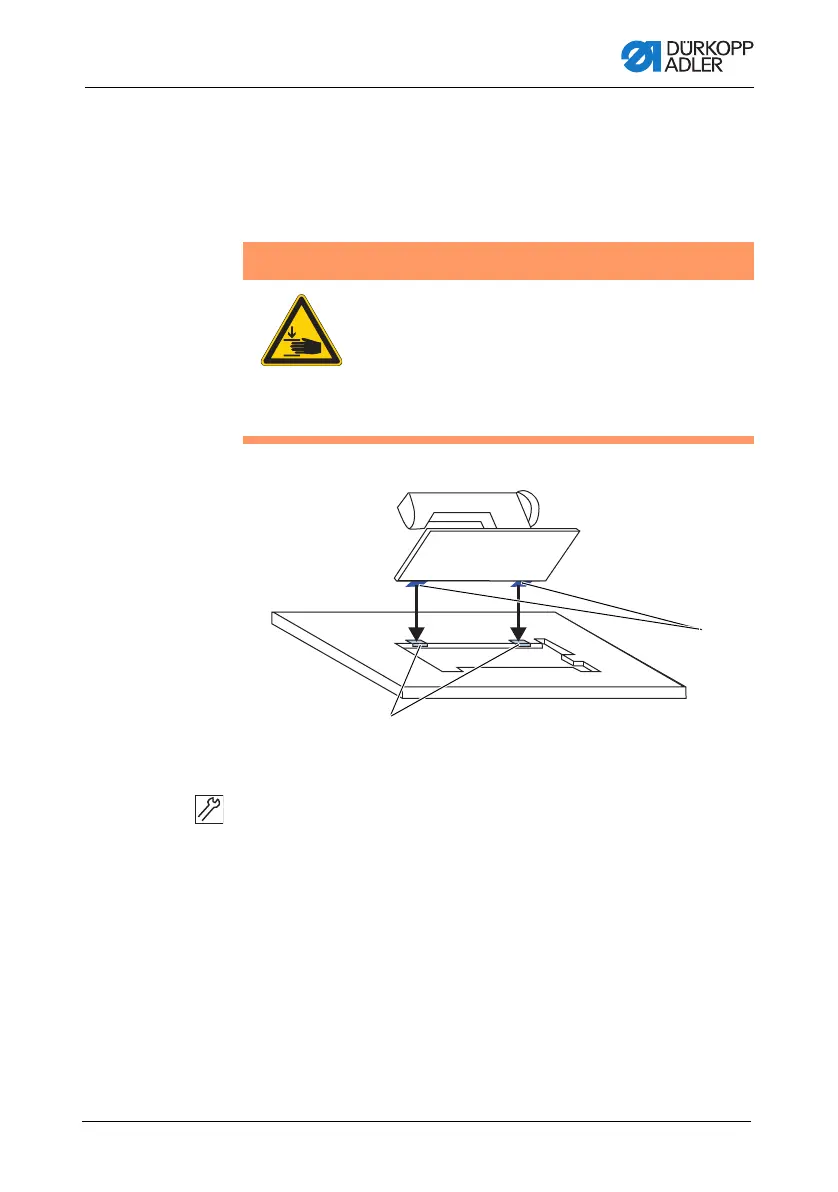

Fig. 59: Inserting the machine head
To insert the machine head:
1. Tighten the hinges (2) to the machine head.
2. Insert the machine head from above at an angle of 45°.
3. Insert the hinges (2) into the hinge slots (1).
4. Fold down the machine head and insert it fully into the tabletop
cutout.
WARNING
Risk of crushing!
Risk of crushing by the machine head.
The machine head is very heavy.
Take care not to jam your hands when inserting
the machine head. This especially applies when
inserting the hinges into the hinge slots.
(1) - Hinge slots (2) - Hinges
