Machine description
Operating Instructions 867 - 04.0 - 03/2018 15
3 Machine description
3.1 Components of the machine

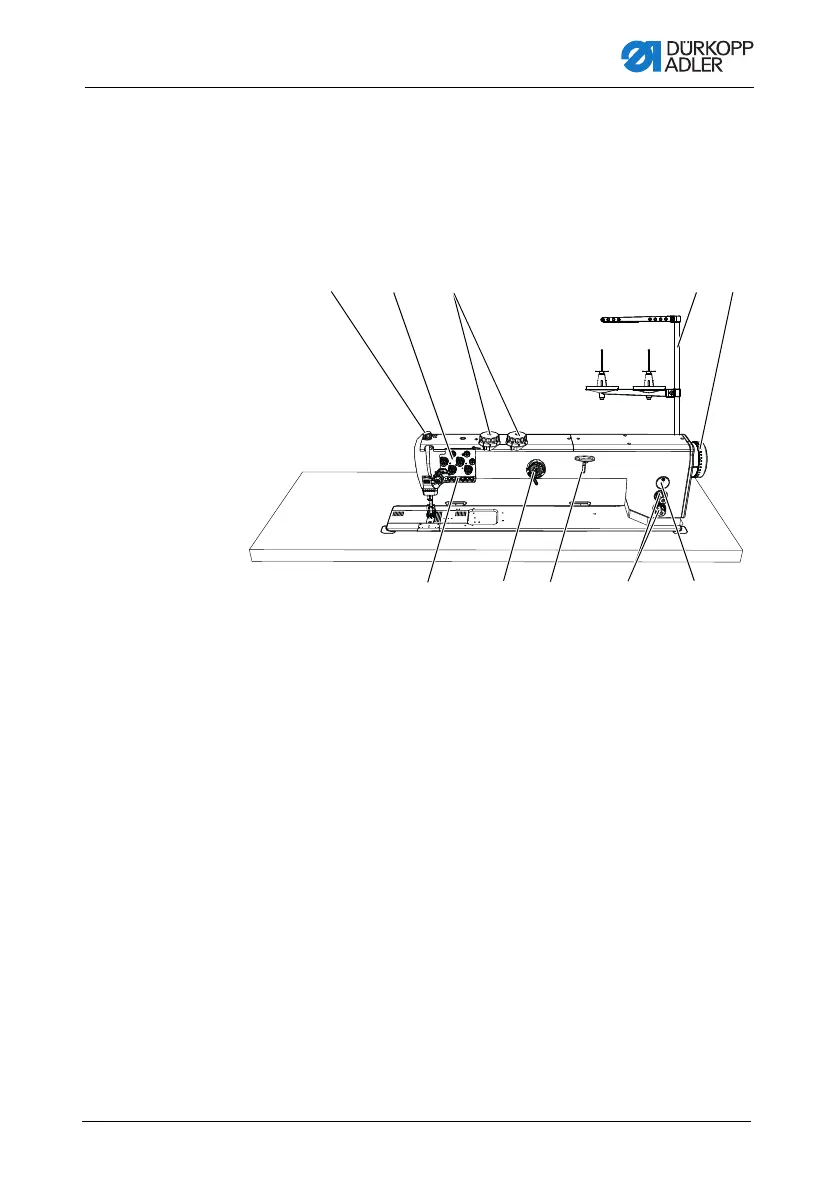

Fig. 1: Components of the machine (example: Long arm machine)
(1) - Adjusting wheels for
the sewing foot stroke
(2) - Tensioning plate
(3) - Adjusting wheel for
the sewing foot pressure
(4) - Push buttons on
the machine arm
(5) - Winder
(6) - Stitch adjustment lever
(7) - Stitch length adjusting wheels
(8) - Oil level indicator
(9) - Handwheel
(10)- Reel stand
②③①
④⑤⑥⑦
⑨⑩
⑧

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
