DURKOPP ADLER 867 Durkopp Adler

Setup
Operating Instructions 867 - 04.0 - 03/2018 123
7.12.8 Assembling and connecting the M-Control
circuit board

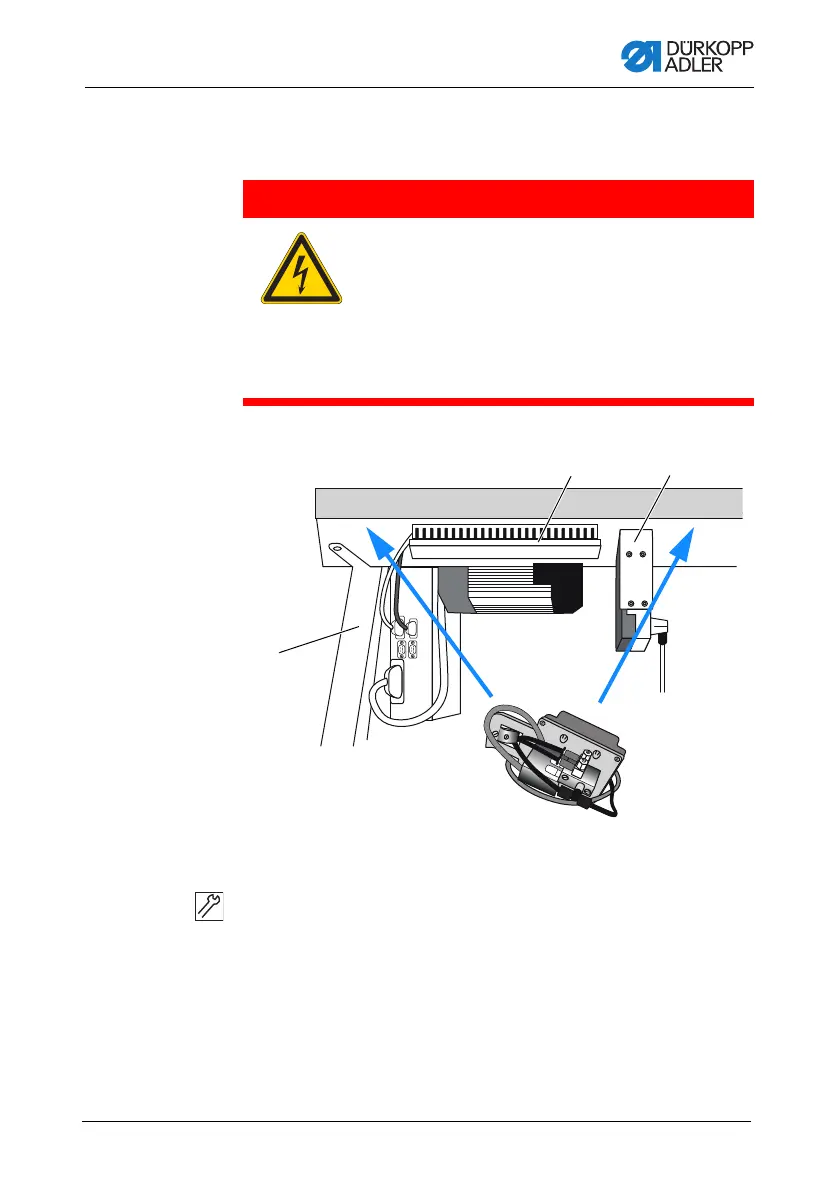

Fig. 74: Assembling and connecting the M-Control circuit board (1)
To assemble and connect the M-Control circuit board:
1. Circuit board for machines with binder: assemble between
stand (1) and cable duct (2)
2. Circuit board for machines with switchable needle bars:
Assemble at the right next to the setpoint device angle
bracket (3).
DANGER
Risk of death from electric shock!
Unprotected contact with electricity can result in
serious injuries or death.
Disconnect the power plug before assembling
and connecting the M-Control circuit board.
Ensure the power plug cannot be unintentionally
reinserted.
(1) - Stand
(2) - Cable duct
(3) - Setpoint device angle bracket
①
②③

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
