Setup
124 Operating Instructions 867 - 04.0 - 03/2018

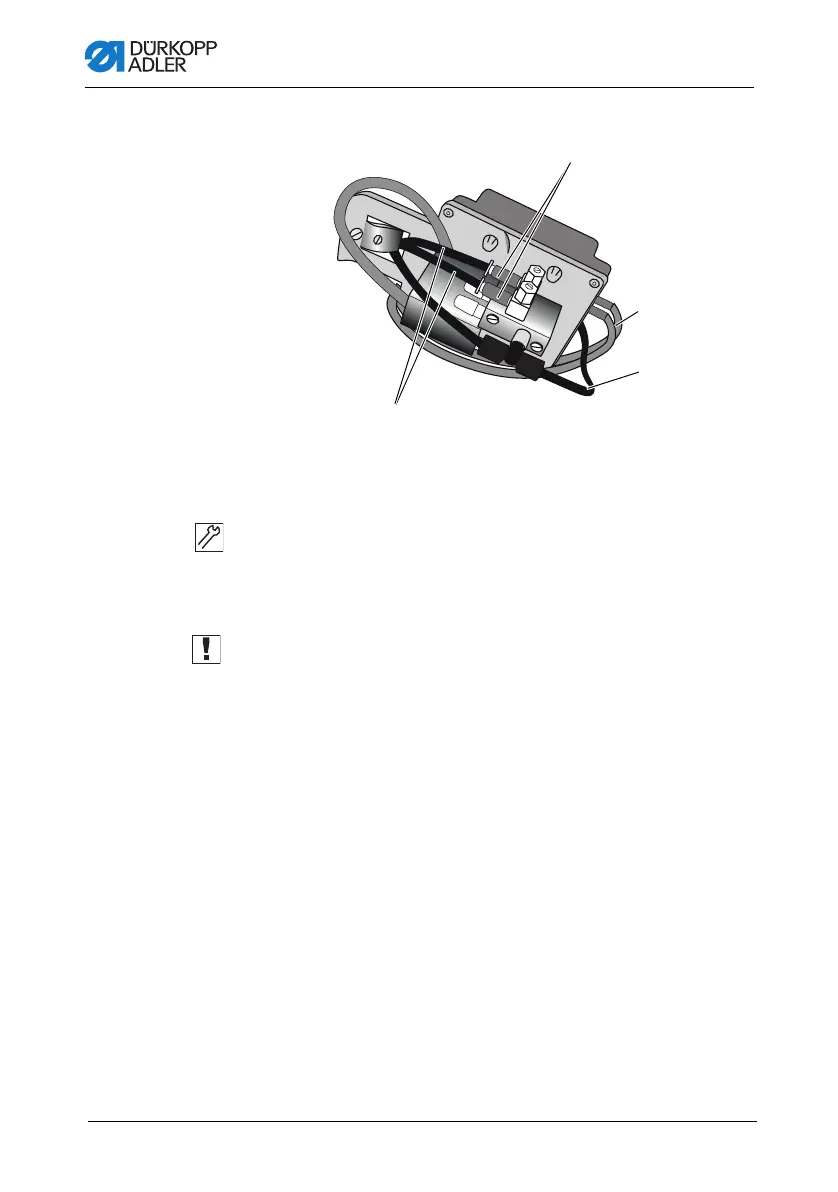

Fig. 75: Assembling and connecting the M-Control circuit board (2)
3. Connect the compressed air supply hose (2) to the compressed
air maintenance unit.
4. Assemble the upper section compressed air hoses (1) to the
throttle valves (4).
Important
If the function of the R and L buttons are swapped over on
machines with switchable needle bars, then the upper section
compressed air hoses (1) are swapped on the throttle valves (4).
5. Plug the electrical cable connectors into the connection
sockets (3).
(1) - Upper section compressed air hoses
(2) - Compressed air supply hose
(3) - Sockets
(4) - Throttle valves
③
④
①
②

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
